Modified Axle Brackets for Stihl and Viking Mowers
Modified Axle Brackets for Stihl and Viking Mowers
When making general repairs to your Stihl or Viking machine, Stihl have updated the axle bracket which secures to the housing of the lawnmower. They have introduced a new axle bracket fabricated with new material and a modified shape to improve functionality.
However this will have an impact if you have an older machine, meaning that in some models you will need to replace the older parts with the updated bracket and screws. On the other hand, if you have a newer machine you will not be able to use the previous versions.
You will need to additionally create pilot holes in chassis to secure the screws for the axle brackets.
Application of changes
| Model | As a Spare Part |
| November 2021 | |
| November 2021 | |
| November 2021 |

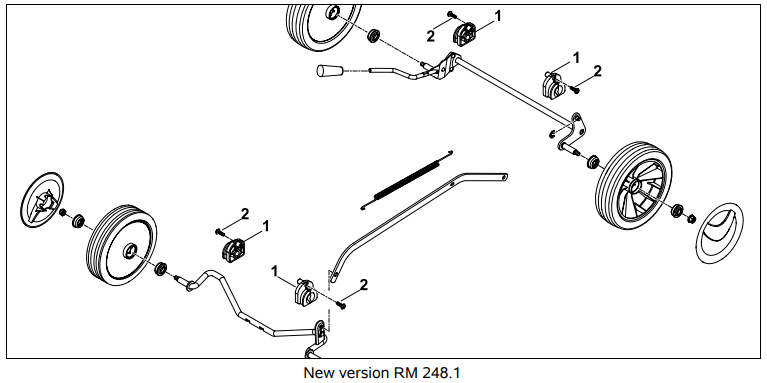

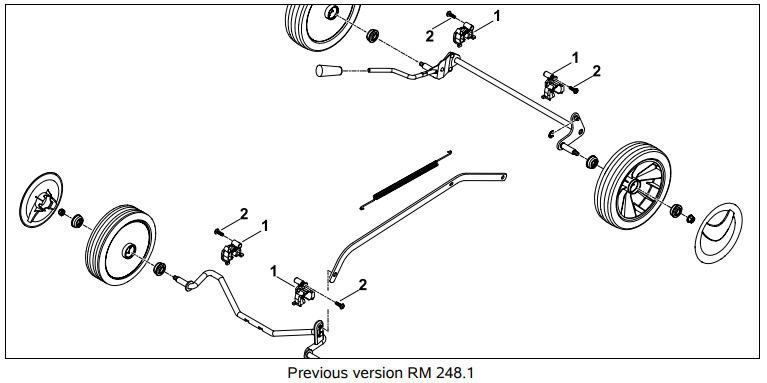

| Item | Designation | Previous version | New version | Note |
| 1 | Axle bracket | 6371 704 1211 | 6371 007 1090 | 1. The previous version of the component cannot be used for new machines. However, the new version of the component can be used for units of an older design. 2. The previous version of the component will no longer be available as a spare part once stocks have been exhausted. |
| 2 | Self-tapping screw P5x12 Self-tapping screw P5x16 | 9104 007 4270 | 9104 007 4289 | 1. The new version of the component cannot be used with the previous version. 2. The previous version of the component is still available as a spare part. |
