It's a super common question "I need a replacement bucket for my mini excavator but how do I know which bucket I need?". Put simply, you need to know three measurements - the pin diameter, the pin centre and the dipper gap. Now you may be thinking well "How do I measure bucket pin dimensions on my mini digger?" Here we explain how!
Buy Mini Excavator Spare Parts Here »
Top Tip: Before starting, it's always best to remove the pins from your attachment. You don't have to but you will find it much easier and more accurate to measure any dimensions if you do this.

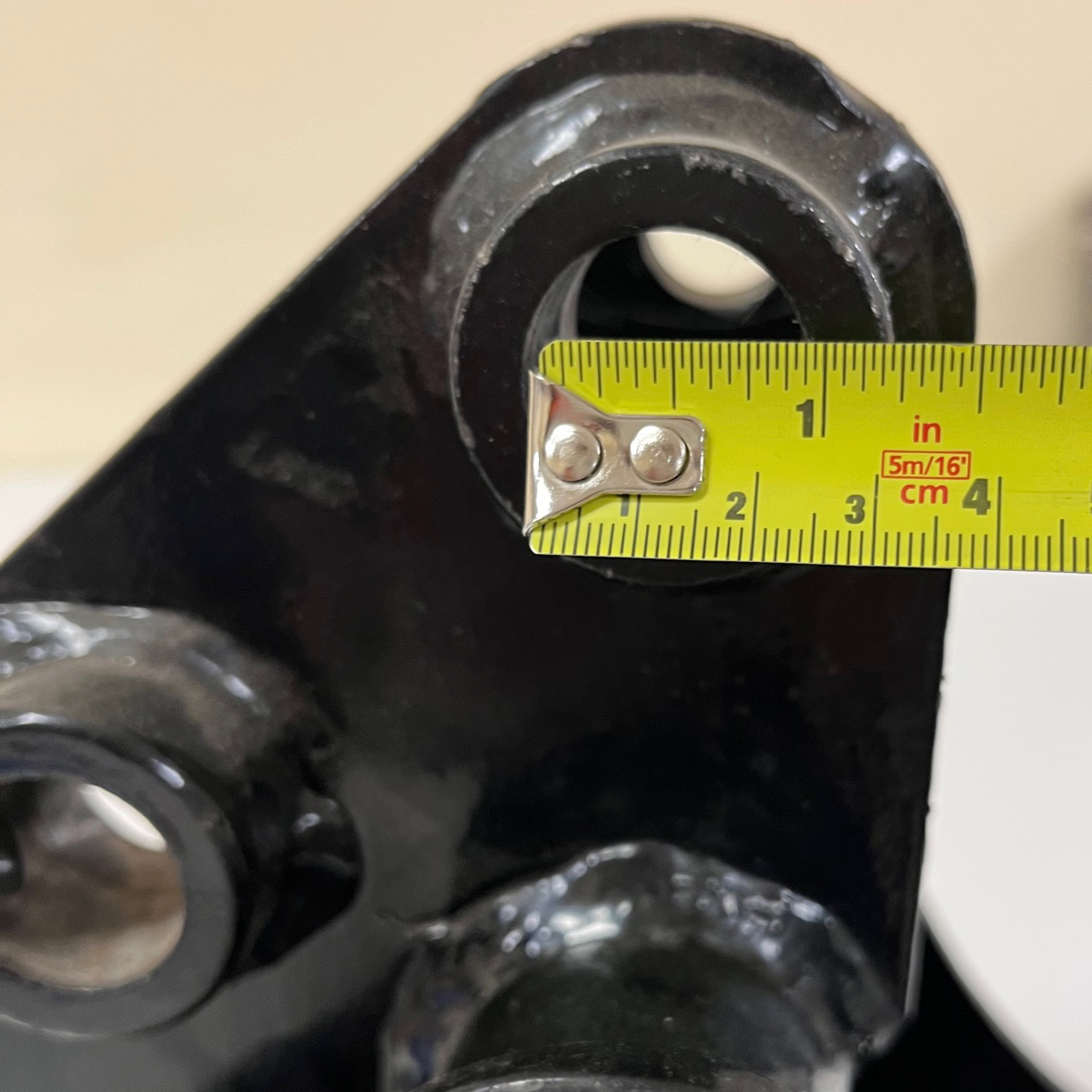

Simply hold your tape measure over the hole of the bucket. Allow for a slight mm wear if the bucket has been used often. You can also use a set of callipers for an easier method. Another way is to remove the pins and measure the width of the pins themselves but sometimes it isn't always as accurate (and especially if it has any wear and tear!)

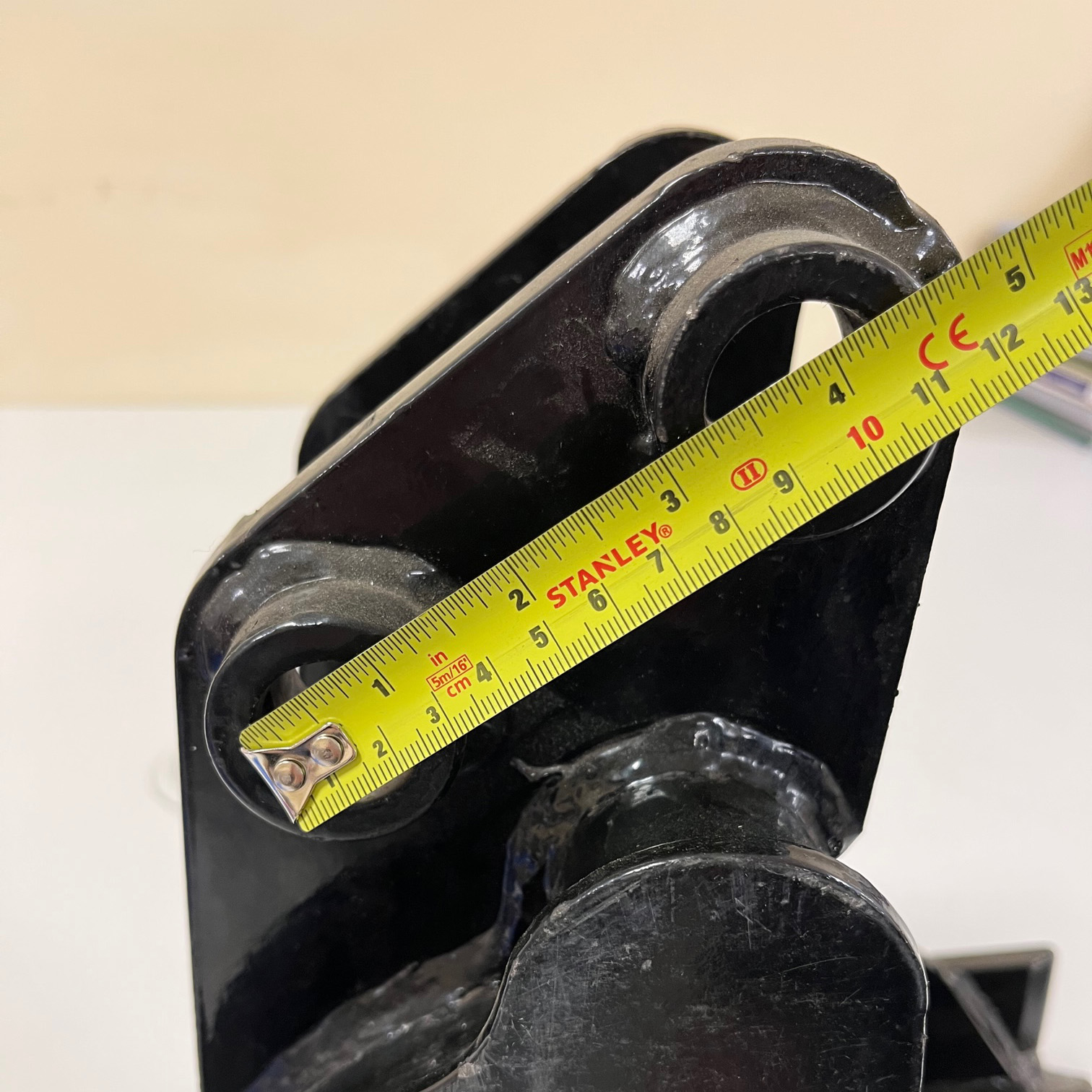

You measure the pin centres by the distance between the two bucket pins from centre to centre. Place your tape measure over the top of the pin holes. If you aren't sure where the centre of the pins are, measure the distance from the first edge of the first hole to the first edge of the second hole.

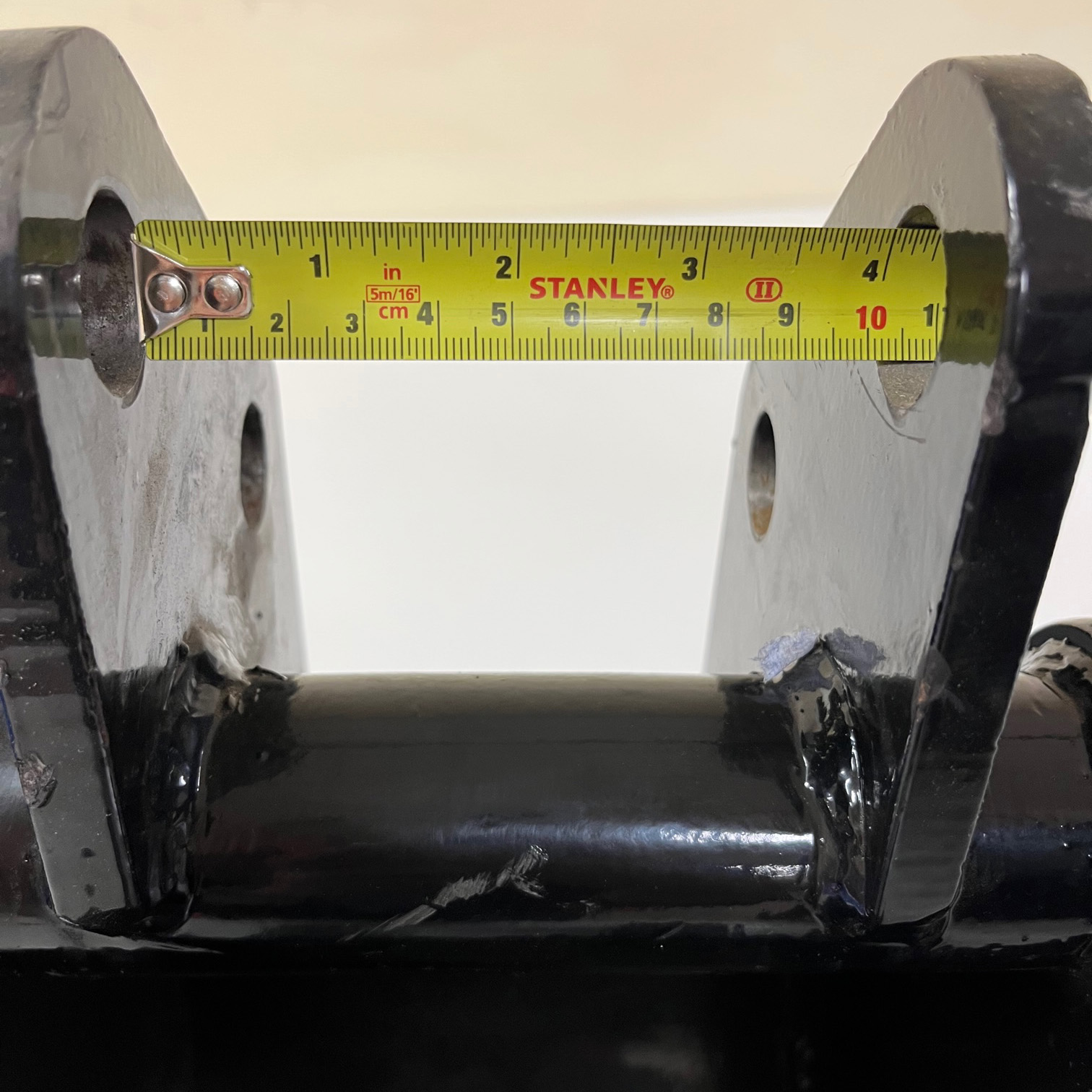

The dipper gap is the internal diameter between the bucket hangers. Get your tape measure and pop it through the hole. Place the tape measure up against the opposite hanger and this will give you the correct dimensions for the dipper width. Remember to measure the smallest internal size (which is between the bosses of the bucket).
If you are also wondering how to locate Bucket Pins, Links and Bushes on your mini excavator then check out our other blog post which can help!
We offer a large range of pins and bushes for many popular machines including JCB, Kubota, Takeuchi and more!
