Description
Overview:

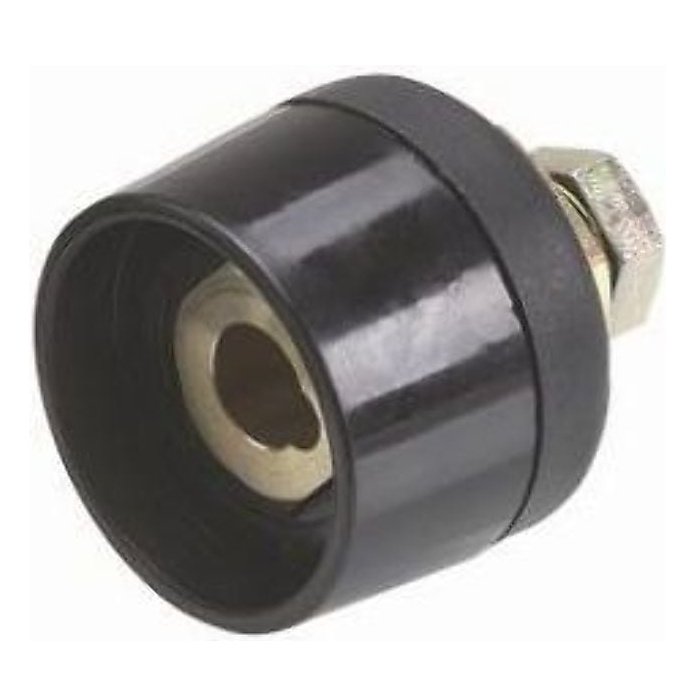

The Welding Panel Socket, welding connector type, 10-25 size female, 25 Amp, is a panel‐mount connector used to create a secure, low‐resistance connection point between welding cables and the power source. Built with a durable, heat‐resistant thermoplastic body and high‐conductivity brass internal contact, it is designed for frequent use in workshop and site environments. This socket suits common inverter and transformer welders across MIG, TIG, and MMA/Stick setups, as well as custom welding control panels and power sources. It supports the 10-25 size welding connector interface, commonly paired with welding cable in the 10-25 mm2 range, providing a stable connection that helps maintain efficient power transfer. Ideal for repairs, upgrades, or new panel builds, it offers straightforward, tidy installation and long service life.
Key Features:
- welding connector type female panel socket (10-25 size) for a secure fit with matching welding power plugs
- Rated at 25 A for reliable light‐to‐medium duty welding connections
- High‐conductivity brass contact for efficient current flow and reduced heating
- Tough, heat‐resistant insulating body for safety and durability in workshop conditions
- Compact panel‐mount format to save space on crowded control panels
- Positive push‐fit engagement to minimise arcing and maintain a stable connection
- Simple to install with standard tools for a clean, professional finish
- Corrosion‐resistant contact surfaces to help maintain performance over time
- Suitable for use with welding cable commonly in the 10-25 mm2 range
- Sold individually to match single‐socket replacements or custom panel layouts
Typical Applications:
Used as a panel connector on MIG, TIG, and MMA welding machines, inverter welders, workshop welding benches, and custom power distribution panels. Suitable for replacing worn sockets on existing machines, building new control panels, or creating dedicated connection points on mobile welding trolleys and site equipment where a dependable welding connector interface is required.
Also known as:
Welding panel mount socket, welding connector 10-25 female receptacle, welding cable connector, Euro quick connector, female welding jack, standard welding socket, panel receptacle for welding leads, quick‐connect welding socket.
Product Specifications
| L&S Part No. | 200 203 |
|---|---|
| Unit of Sale | 1 |
| Machine Type | Welders |
| Key Features | - Welding connector type female panel socket, 10-25 size - Rated at 25 Amp for light-medium duty welding - High-conductivity brass contact for efficient current flow - Heat-resistant thermoplastic body for durability - Suitable for 10-25 mm2 welding cables |
