Description
Overview:

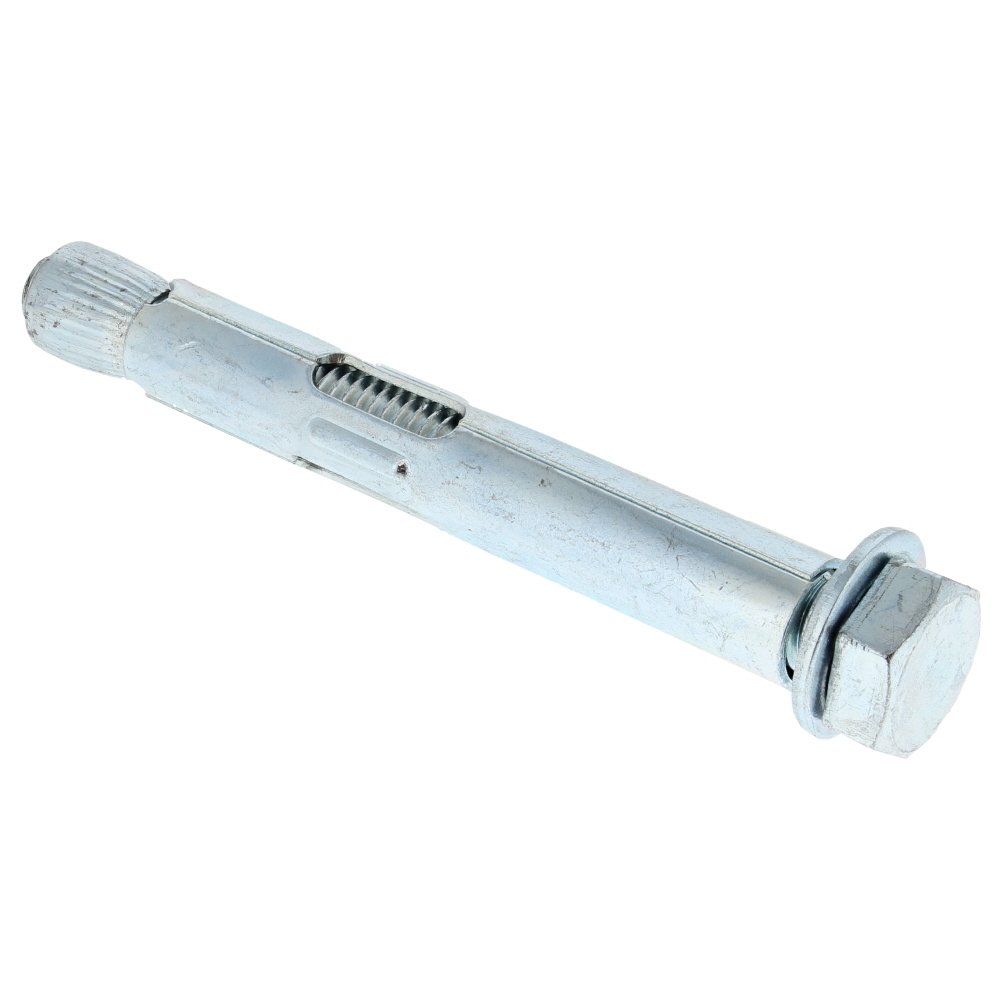

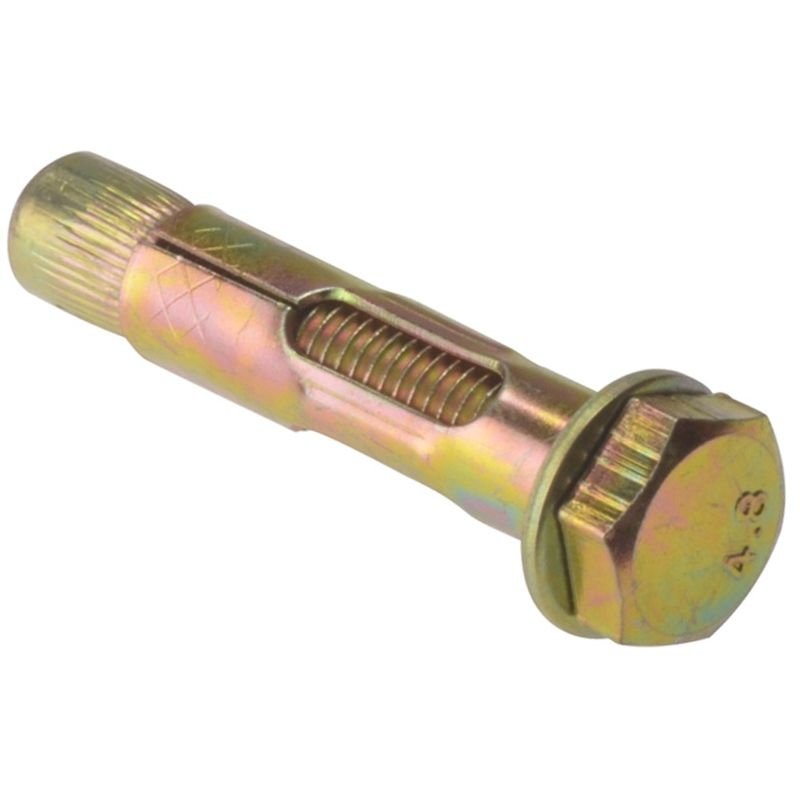

The Mason Mate Sleeve Anchor - Loose Bolt, M10 x 80, is a heavy‐duty masonry fixing for secure, permanent attachments in solid materials. Made from high‐grade steel with a zinc/yellow passivated finish, it resists corrosion and provides reliable expansion inside the hole. The loose bolt design uses a hex nut and washer to draw the sleeve tight for a firm hold. Suitable for concrete and solid brick, it is widely used to mount brackets, racking, handrails, shelves, pipe supports, and equipment baseplates. Size: M10 thread with 80 mm overall length (3.15 inches). Supplied in a pack of 50 for site and workshop use. Manufacturer: Mason Mate. Manufacturer Part Number (MPN): 0839M560080HB.
Key Features:
- M10 x 80 mm sleeve anchor (length 80 mm / 3.15 inches) for robust fixings in solid masonry
- Zinc/yellow passivated steel for improved corrosion resistance in indoor and sheltered outdoor conditions
- Loose bolt pattern with hex nut and washer for controlled tightening and consistent clamping force
- Through‐fix capability allows drilling through the fixture and substrate in one operation
- Designed for use in a 10 mm drilled hole for straightforward installation with standard SDS or percussion drills
- Strong expansion action distributes load along the sleeve for dependable holding power
- Helps resist vibration loosening when installed correctly, suitable for static and light dynamic loads
- Clean, flush nut finish makes it practical for brackets, rails, and equipment mounts
- Pack of 50 offers uniformity across multiple fix points on the same project
- Part of a wider range available from M8 x 45 to M16 x 120 to match different load and embedment needs
Typical Applications:
Fixing steel brackets, handrails, racking, shelving, cable trays, pipe clips, machinery and equipment baseplates, wall cabinets, signage, and gate or barrier hardware into concrete or solid brick. Suitable for workshop builds, plant rooms, garages, warehouses, and general construction tasks where a strong, tidy mechanical fixing is required.
Also known as:
Sleeve anchor bolt, loose bolt anchor, expansion anchor, through‐fix anchor, masonry anchor bolt, concrete anchor, fixing bolt for brick and concrete.
Product Specifications
| L&S Part No. | 903 2305 |
|---|---|
| Manufacturer | Masonmate |
| OEM No. | 0839M560080HB |
| Unit of Sale | Pack of 50 |
| Size | M10 x 80 |
| Key Features | - M10 x 80 mm sleeve anchor for solid masonry fixings - Zinc/yellow passivated steel resists corrosion - Loose bolt with hex nut and washer for firm hold - Through-fix capability for efficient installation - Pack of 50 for consistent project use |
