Description
Overview:

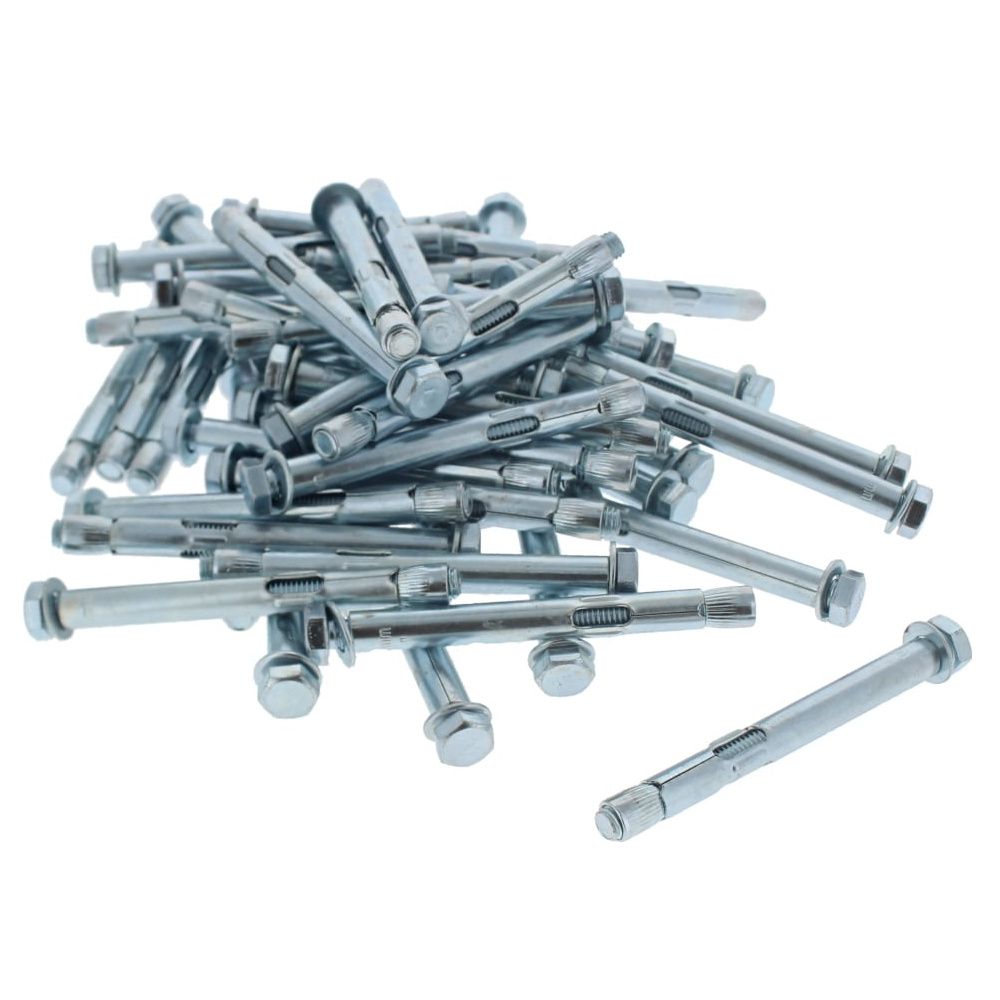

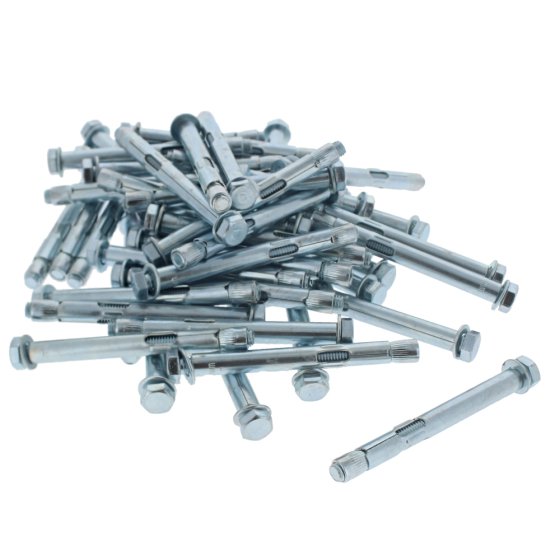

The Mason Mate Sleeve Anchor - Loose Bolt, M10 x 100, is a general‐purpose mechanical fixing for securing fixtures to masonry. Made from steel with a zinc/yellow passivated finish, it offers reliable corrosion resistance for internal and sheltered outdoor use. The loose bolt design allows easy through‐fixing: drill the hole, insert the anchor through the fixture, and tighten to expand the sleeve for a secure hold. Suitable for concrete, solid brick, block, and natural stone, this pack of 50 provides a consistent solution for site work and DIY projects alike. Typical uses include fixing brackets, frames, racking, machinery feet, handrails, and pipe clips. Size M10 (10 mm diameter) x 100 mm overall length. Manufacturer Part Number: 0839M560100HB.
Key Features:
- M10 x 100 mm sleeve anchor with loose bolt for straightforward through‐fixing
- Zinc/yellow passivated steel for enhanced corrosion resistance in general environments
- Strong, dependable hold in concrete, solid brick, block, and stone substrates
- Simple installation: drill, clean the hole, insert anchor, tighten to expand the sleeve
- Uses a 10 mm drill bit; tighten with a standard spanner or socket
- Hex‐bolt head provides positive drive and controlled clamping of the fixture
- Even expansion around the sleeve helps reduce substrate cracking compared with wedge types
- Suitable for fixing metal frames, timber battens, shelves, brackets, guards, and equipment bases
- Pack of 50 for efficient site use and consistent batch‐to‐batch performance
- Part of a wider range typically spanning M8 x 45 mm to M16 x 120 mm for different load and thickness needs
Typical Applications:
Securing frames, cable trays, handrails, racking, shelving, machinery bases, pipe clips, gate and door hardware, and timber or metal brackets to concrete and brickwork. Useful for fit‐outs, plant rooms, workshops, garages, warehouses, and renovation tasks where a quick, reliable masonry fixing is required.
Also known as:
Sleeve expansion anchor, loose bolt anchor, expansion bolt, masonry anchor bolt, masonry sleeve fixing, hex head sleeve anchor, expansion sleeve bolt, wall fixing bolt, mechanical masonry fixing.
Product Specifications
| L&S Part No. | 903 2306 |
|---|---|
| Manufacturer | Masonmate |
| OEM No. | 0839M560100HB |
| Unit of Sale | Pack of 50 |
| Size | M10 x 100 |
| Key Features | - M10 x 100 mm sleeve anchor for through-fixing - Zinc/yellow passivated steel resists corrosion - Suitable for concrete, brick, block, and stone - Requires 10 mm drill bit for installation - Pack of 50 for consistent site use |
