Description

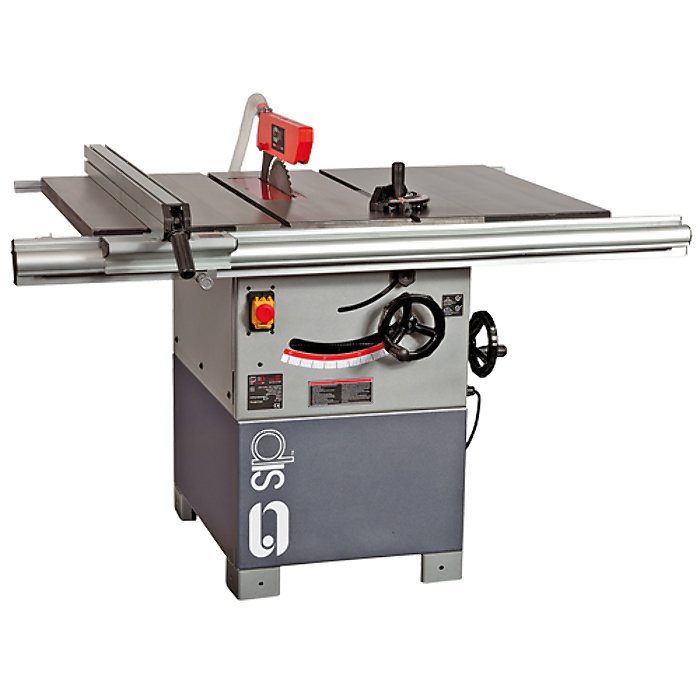

The 12" Cast Iron Saw is fitted with a large cast iron table and two extension sides to provide a large adjustable work surface. A full-length rip fence with an adjustable lock provides high accuracy.
- 230v (16amp) input supply
- 3000w (4.0hp) induction motor
- 4000.0rpm 30.0mm bore blade
- 12" TCT blade, push stick supplied
- 800 x 600.0mm standard table size
- 800 x 1500.0mm table (extensions)
- 80mm (45°)/100mm (90°) cut depth
- Fine adjustment rise and fall blade
- Extension tables can be mounted
when sliding carriage is not fitted - 45° left tilt blade with blade lock
- 'T' slotted cast iron mitre guide
- 2 year warranty
SIP offers a comprehensive selection of woodworking equipment for domestic and professional environments, all of which are packed with features and provide unrivaled value.
| ITEM NO. | 01446 | Supply | 230v (16amp) | Motor | 3.0kW (4.0hp) | Max. Depth of Cut (45°) | 80.0mm | Max. Depth of Cut (90°) | 100.0mm | Max. Distance - Blade to Fence with Extension | 1400.0mm | Table Size (WxD) | 600 x 800mm | Table Size (w/ Extensions) | 1500 x 800mm | Blade Tilt | 45° to left | Blade Diameter | 305.0mm | Blade Bore Size | 30.0mm | Blade Speed | 4000rpm | Table Height | 860.0mm | Net Weight | 195.0kg | Packaged Dimensions | Box 1: 826 x 720 x 627mm Box 2: 1838 x 348 x 190mm | Additional | 2 year warranty | Accessories | Rear Extension Table | 01448 | Wheel Kit | 06920 | Sliding Carriage | 01447 |
Product Specifications
| L&S Part No. | 845 1446 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | SIP Industrial Products |
| OEM No. | 01446 |
| Unit of Sale | 1 |
| Size | 826 x 720 x 627mm |
