Description

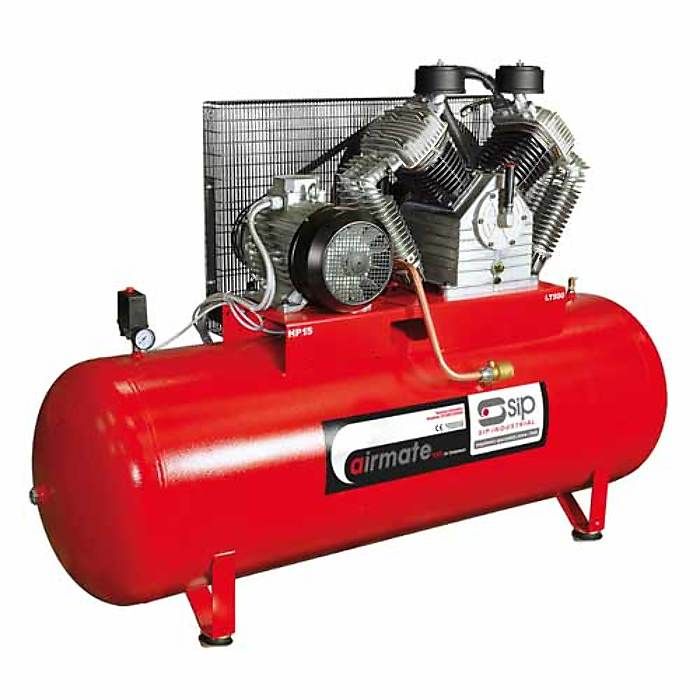

The ISBD15/500 is an electric compressor designed for industrial applications, and features an oversized air chamber for better temperature control and an electronically balanced crankshaft.
- 400v (32amp), 3 phase input supply
- Impressive 500.0 litre air receiver size
- Powerful, rugged 15.0hp (11.2kW) motor
- 160.0psi (11.0 bar) maximum pressure
- 40.7CFM maximum free air delivery
- 61.5CFM maximum piston displacement
- Electronically balanced crankshaft system
- Oversized air chamber - better temp control
- Stainless steel elastomers for perfect seal
- Cast iron constructed, reliable valve plate
- Premium Italian design and construction
- Internal painting resin prevents oil leaks
- 10 year anti-corrosion warranty
- 3 year parts warranty
Fifty years of research and development is behind the SIP collection of compressors, air tools, and accessories - with our range recognised as one of the widest in the UK and worldwide.
| ITEM NO. | 06297 | Supply | 400v (32amp), 3 phase | Motor | 15hp (11.2kW) | Air Receiver Size | 500 litres | Piston Displacement | 61.5CFM (1744 litres/min) | Free Air Delivery (F.A.D.) | 40.7CFM (1153 litres/min) | Max. Pressure | 1160psi (11.0 bar) | Speed | 1200rpm | No. of Cylinders | 4 cylinders | No. of Stages | 2 stages | Warranty | 3 years (parts) | 10 year anti-corrosion (receiver) | Gross Weight | 312.0kg | Packaged Dimensions | 1360 x 560 x 1990mm | Additional | Made in Italy |
Product Specifications
| L&S Part No. | 845 6297 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | SIP Industrial Products |
| OEM No. | 06297 |
| Unit of Sale | 1 |
| Size | 1360 x 560 x 1990mm |
