Description

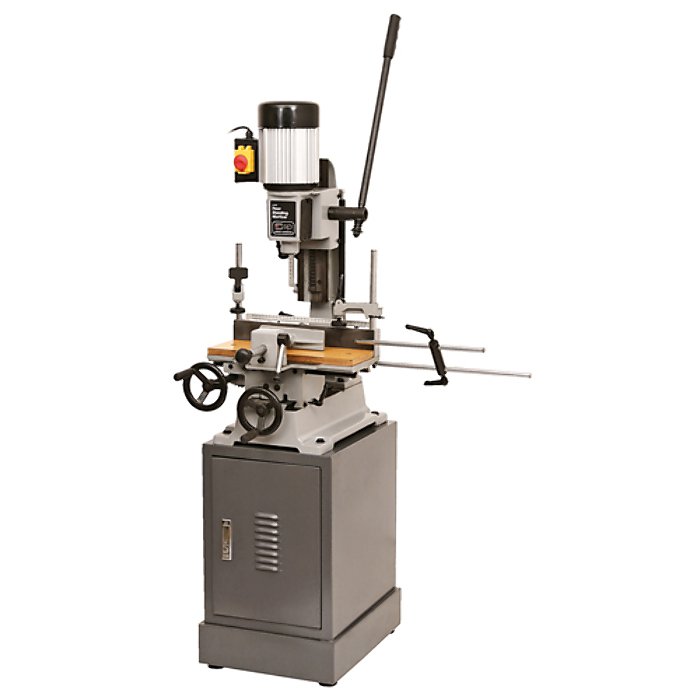

This Bench Morticer features a integrated cabinet, with a solid cast iron table and work clamp. The table has vertical and sideways movement stops and a ratchet rise and fall handle.
- 230v (13amp) input supply
- Powerful 750w (1.0hp) motor
- 1400.0rpm max. motor speed
- 70.0mm maximum drill depths
- 210.0mm maximum chisel stroke
- 400.0mm x 150.0mm full table size
- 140.0mm maximum spindle to fence
- 6.0mm - 26.0mm (1.0") chisel capacity
- 145.0 (long), 170.0mm (lat) movement
- Vertical and sideways movement stops
- Solid cast iron work table and clamp
- Adjustable gib strips for accuracy
- Ratchet rise and fall handle
SIP offers a comprehensive selection of woodworking equipment for domestic and professional environments, all of which are packed with features and provide unrivaled value.
| ITEM NO. | 01950 | Supply | 230v (13amp) | Motor | 750w (1.0hp) | Table Size | 400 x 150mm | Max. Drill Depth | 70.0mm | Morticing Capacity | 6.0 - 25.0mm (1/4" x 1") | Drill Chuck Capacity | 16.0mm | Max. Chisel Stroke | 210.0mm | Spindle Travel | 140.0mm | Weight | 119.0kg | Packaged Dimensions | 460 x 400 x 1500mm | Accessories | 1/4" Chisel Bit | 06820 | 3/8" Chisel Bit | 06822 | 1/2" Chisel Bit | 06824 | 5/8" Chisel Bit | 06826 | 3/4" Chisel Bit | 06828 | 3pc Set (6, 10, 12mm) | 06827 | 4pc Set (6, 10, 12, 16mm) | 06829 |
Product Specifications
| L&S Part No. | 845 1950 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | SIP Industrial Products |
| OEM No. | 01950 |
| Unit of Sale | 1 |
| Size | 460 x 400 x 1500mm |
