Description

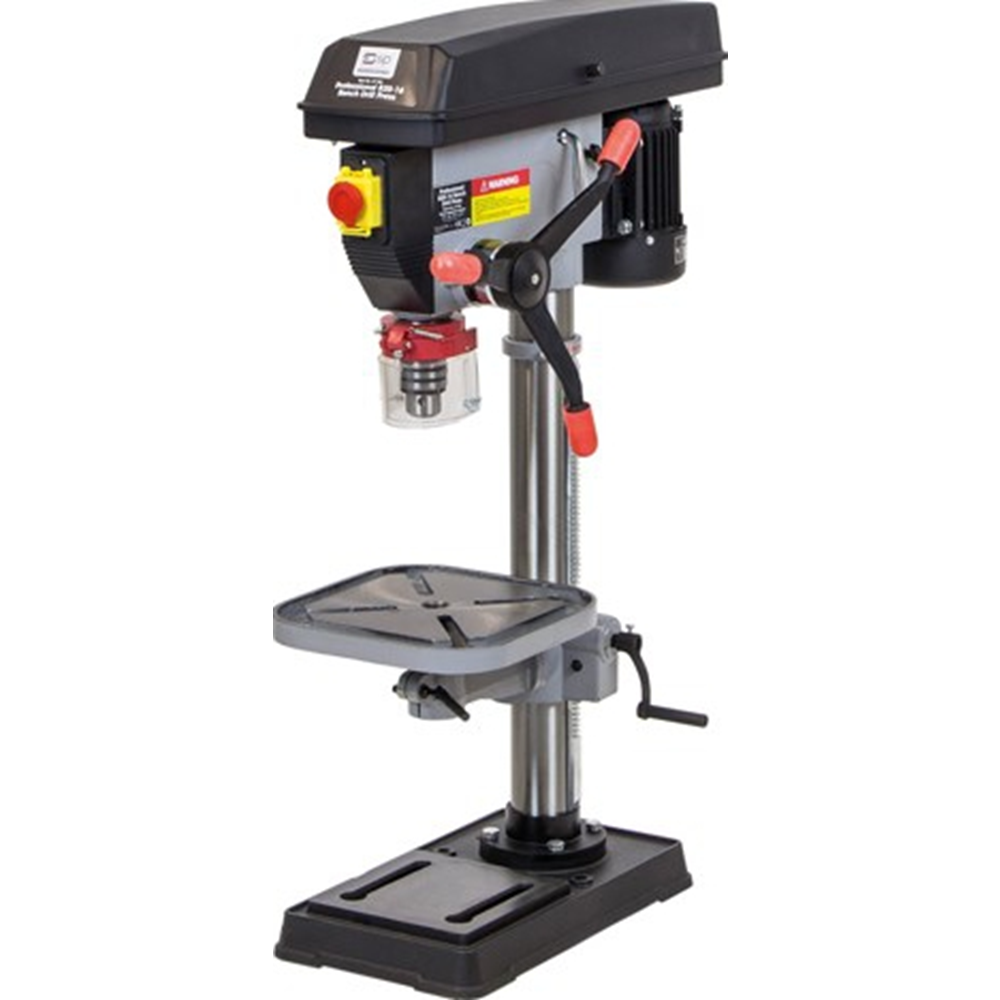

SIP B20-16 Bench Pillar Drill
Our range of SIP professional bench and floor pillar drills are capable of drilling various metals, woods and plastics. Designed for reliability and maximum performance.
Bench-standing pillar drill
230v (13amp) input supply
Heavy-duty 550w (0.7hp) motor
16 working speeds (180 - 2270rpm)
16mm max. drilling depth (mild steel)
3mm to 16mm chuck capacity range
Quick easy motor speed adjustment
One-piece build & soft-grip handles
Motor features thermal protection
Integrated magnetic NVR switch
Sturdy cast iron table and base
Ideal for woods, metals, plastics
Input Supply 230v (13amp)
Motor Power 550w (0.7hp)
Speed Range 180 - 2770rpm
Speed Options 16 speeds
Chuck Capacity 3mm - 16mm
Drilling Capacity 16mm (mild steel)
Spindle Taper MT2
Table Size 290 x 290mm
Base Size 462 x 274mm
Column Ø 72mm
Collar Ø 55mm
Swing 360mm
Throat 180mm
Overall Height 990mm
Max. Spindle Stroke 83mm
Max. Dist. Chuck to Table 405mm
Max. Dist. Chuck to Base 600mm

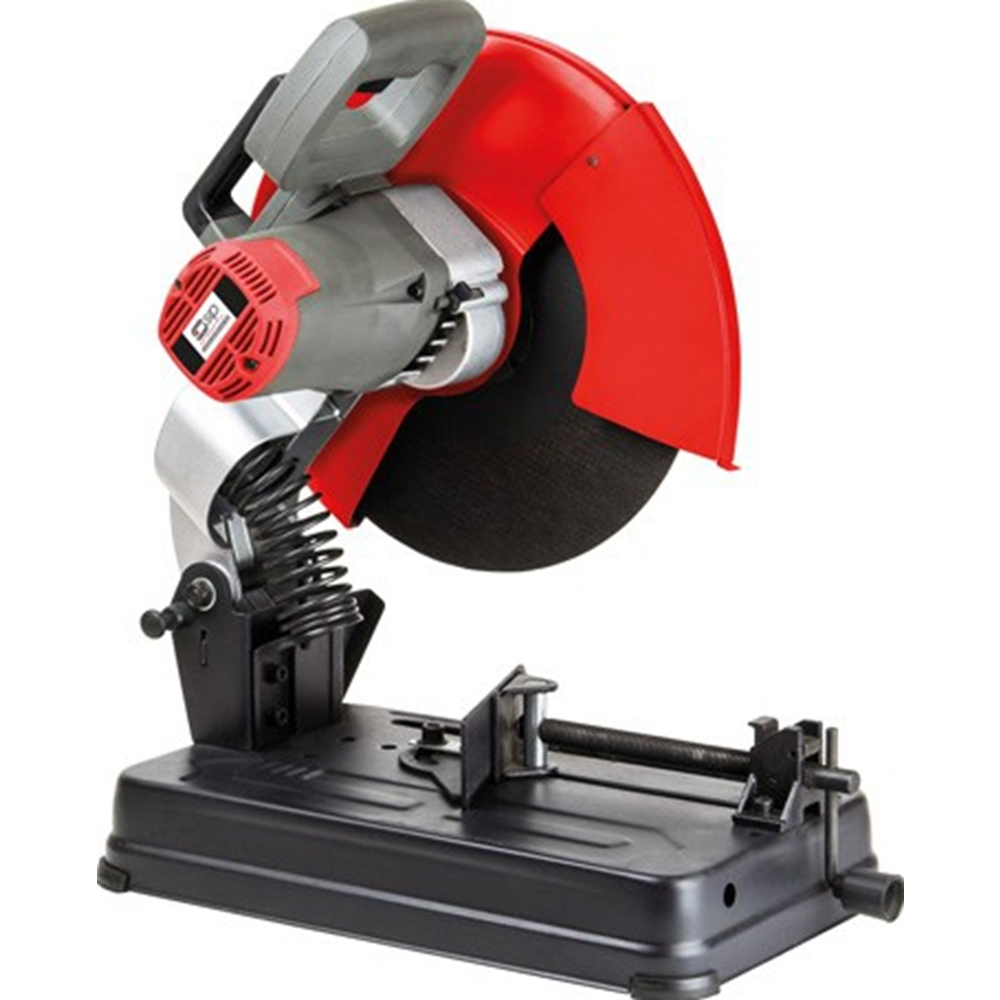

SIP 14" 230v Abrasive Cut-Off Metal Saw
The 14" Abrasive Cut-Off Saw is capable of cutting all types of ferrous metals, and is highly portable due to it's folding head and convenient carry handle. Highly adjustable.
230v (13amp) input supply
Powerful 3.0hp (2.4kW) motor
3800rpm, 350mm blade speed
Built-in 0° to 45° stable mitre facility
@ 0°: 130mm, @ 45°: 110mm (tube)
@ 0°: 120 x 120, @ 45°: 90 x 90mm (box)
@ 0°: 140 x 140, @ 45°: 90 x 90mm (angle)
@ 0°: 180 x 85, @ 45°: 100 x 80mm (rect)
Quickly adjustable vice for more efficiency
Folding head and carry handle for storage
Saw is ready to use upon opening of box
Abrasive saw disc is supplied attached

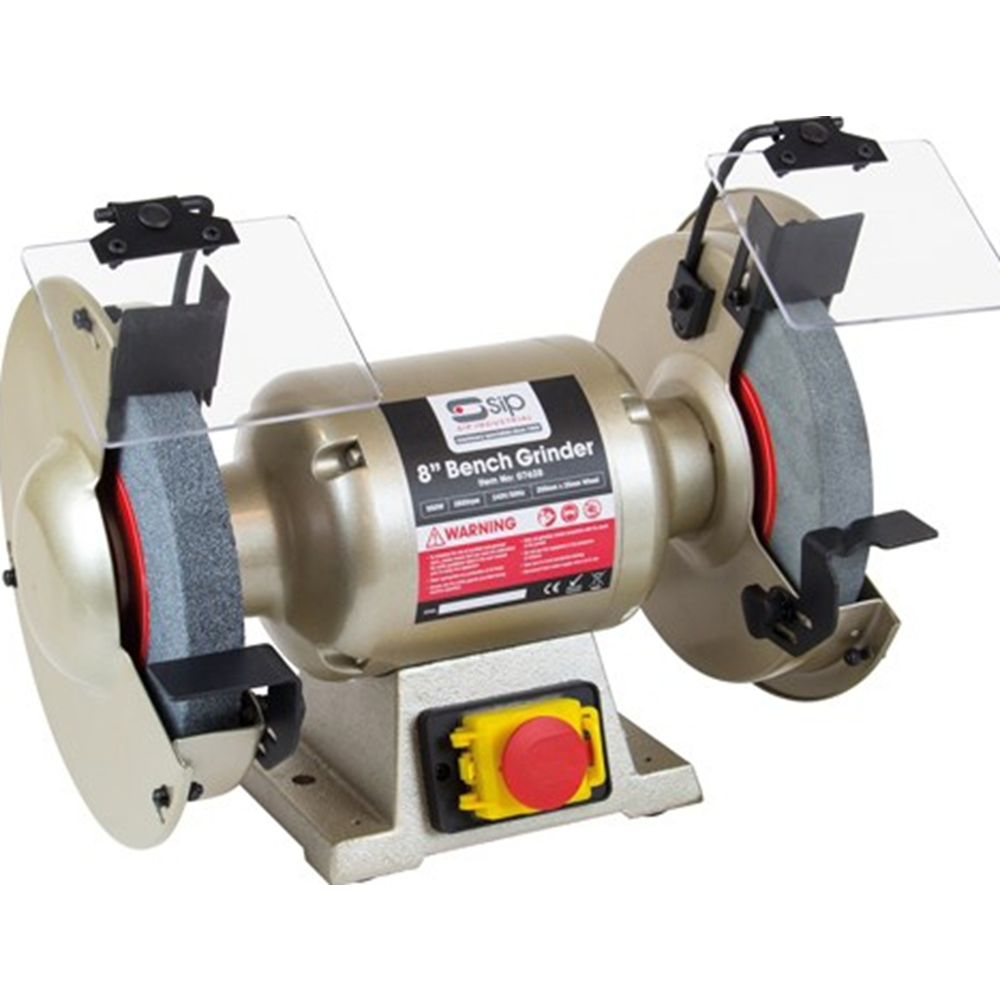

SIP 8" Professional Bench Grinder
The 8" Trade Bench Grinder is ideal for professional applications, including tool sharpening, and is built for high performance through a powerful induction motor and a tough metal housing.
230v (13amp) input supply
Powerful 550w induction motor
2850rpm working wheel speed
8" (200mm) grinder wheel diameter
5/8" (16mm) bore / 1" (25mm) width
Ultra durable, heavy-duty metal housing
Precision-sealed lubricated spindle bearings
Adjustable tool rests, spark arrestors, eye
shields, and wheel guards are all included
1x coarse, 1x medium wheel included
Integrated NVR switch

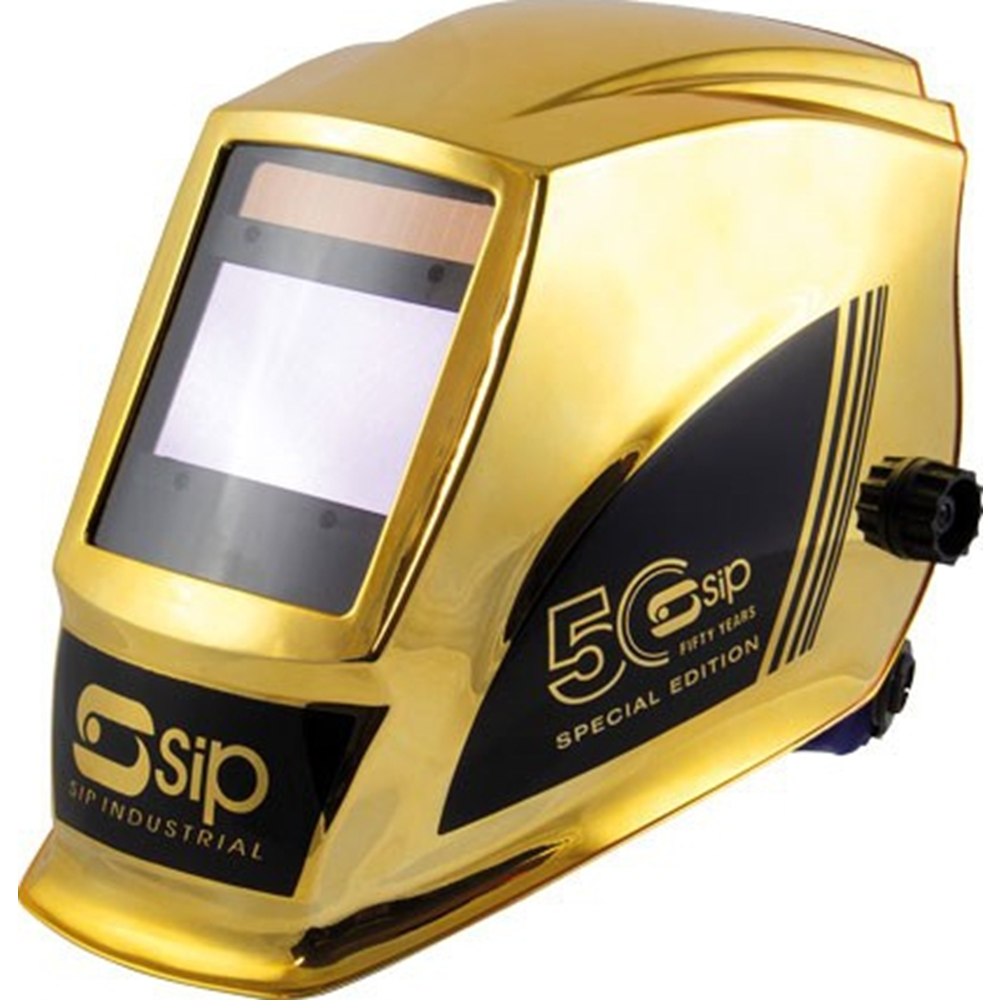

SIP 50th Edition Electronic Welding Headshield
This Meteor 2300F gold welding headshield is a Special Edition product in celebration of our 50th anniversary! It boasts a quick light-to-dark response time, for added reliability and protection.
Striking 50th Anniversary gold design
Adjustable welding shade control settings:
4 SHADE for grinding tasks
9 - 13 SHADE for ARC/MIG/TIG
5 - 9 SHADE for plasma cutting
1/10,000sec light-to-dark response, 4 sensors
Test button checks electronic shielding functions
Solar panel and 2x CR2450 3v Lithium batteries
Adjustable padded headband for more comfort
Integrated low shield power warning light
Lightweight construction - weighs 0.5kg!

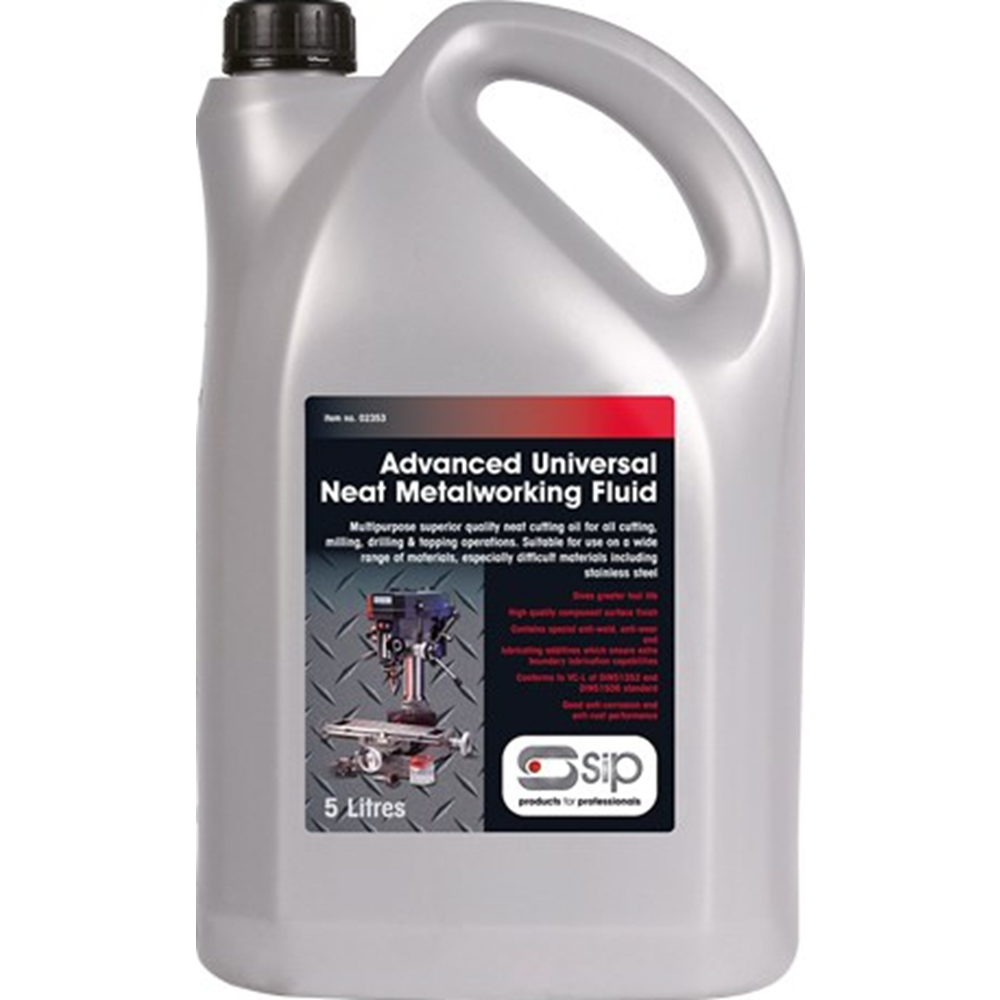

SIP 5L Advanced Universal Metalwork Fluid
Our Advanced Universal Metalworking Fluid is superior quality. Designed for neat cooling and lubrication of our machines, it is suitable for all cutting, milling, drilling and tapping operations.
5L multipurpose superior quality oil
Designed for milling, drilling, tapping
Suitable for a wide range of materials
High quality component surface finish
Good anti-corrosion/rust performance
Contains special additives to ensure
extra lubrication capabilities

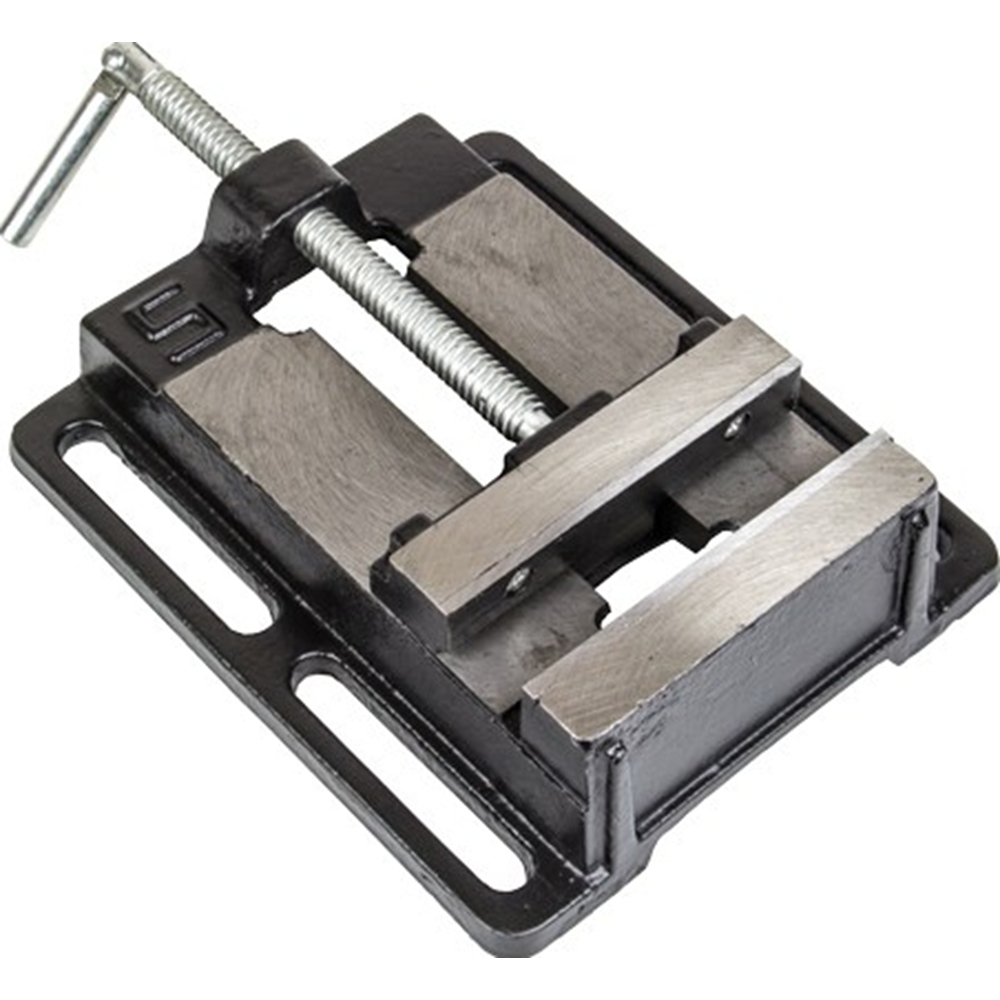

SIP 5" Drill Vice
SIP Drill Vices are constructed from heavy-duty cast iron, which means they are suitable for most trade, workshop and garage applications. Available in various sizes for different tasks.
5" drill vice size
Heavy-duty cast iron
Chrome-plated spindle
Integrated folding handle
Manufactured for durability
Strong and knurled grip
SIP stock a collection of heavy-duty metalworking tools and machines that are perfect for a range of tasks including; metal drilling, grinding, sawing, boring, sanding, and more.
Vice Size 5"
Jaw Width 120mm
Jaw Opening 120mm
Construction Cast iron
Our range of SIP professional bench and floor pillar drills are capable of drilling various metals, woods and plastics. Designed for reliability and maximum performance.
Bench-standing pillar drill
230v (13amp) input supply
Heavy-duty 550w (0.7hp) motor
16 working speeds (180 - 2270rpm)
16mm max. drilling depth (mild steel)
3mm to 16mm chuck capacity range
Quick easy motor speed adjustment
One-piece build & soft-grip handles
Motor features thermal protection
Integrated magnetic NVR switch
Sturdy cast iron table and base
Ideal for woods, metals, plastics
Input Supply 230v (13amp)
Motor Power 550w (0.7hp)
Speed Range 180 - 2770rpm
Speed Options 16 speeds
Chuck Capacity 3mm - 16mm
Drilling Capacity 16mm (mild steel)
Spindle Taper MT2
Table Size 290 x 290mm
Base Size 462 x 274mm
Column Ø 72mm
Collar Ø 55mm
Swing 360mm
Throat 180mm
Overall Height 990mm
Max. Spindle Stroke 83mm
Max. Dist. Chuck to Table 405mm
Max. Dist. Chuck to Base 600mm
SIP 14" 230v Abrasive Cut-Off Metal Saw
The 14" Abrasive Cut-Off Saw is capable of cutting all types of ferrous metals, and is highly portable due to it's folding head and convenient carry handle. Highly adjustable.
230v (13amp) input supply
Powerful 3.0hp (2.4kW) motor
3800rpm, 350mm blade speed
Built-in 0° to 45° stable mitre facility
@ 0°: 130mm, @ 45°: 110mm (tube)
@ 0°: 120 x 120, @ 45°: 90 x 90mm (box)
@ 0°: 140 x 140, @ 45°: 90 x 90mm (angle)
@ 0°: 180 x 85, @ 45°: 100 x 80mm (rect)
Quickly adjustable vice for more efficiency
Folding head and carry handle for storage
Saw is ready to use upon opening of box
Abrasive saw disc is supplied attached
SIP 8" Professional Bench Grinder
The 8" Trade Bench Grinder is ideal for professional applications, including tool sharpening, and is built for high performance through a powerful induction motor and a tough metal housing.
230v (13amp) input supply
Powerful 550w induction motor
2850rpm working wheel speed
8" (200mm) grinder wheel diameter
5/8" (16mm) bore / 1" (25mm) width
Ultra durable, heavy-duty metal housing
Precision-sealed lubricated spindle bearings
Adjustable tool rests, spark arrestors, eye
shields, and wheel guards are all included
1x coarse, 1x medium wheel included
Integrated NVR switch
SIP 50th Edition Electronic Welding Headshield
This Meteor 2300F gold welding headshield is a Special Edition product in celebration of our 50th anniversary! It boasts a quick light-to-dark response time, for added reliability and protection.
Striking 50th Anniversary gold design
Adjustable welding shade control settings:
4 SHADE for grinding tasks
9 - 13 SHADE for ARC/MIG/TIG
5 - 9 SHADE for plasma cutting
1/10,000sec light-to-dark response, 4 sensors
Test button checks electronic shielding functions
Solar panel and 2x CR2450 3v Lithium batteries
Adjustable padded headband for more comfort
Integrated low shield power warning light
Lightweight construction - weighs 0.5kg!
SIP 5L Advanced Universal Metalwork Fluid
Our Advanced Universal Metalworking Fluid is superior quality. Designed for neat cooling and lubrication of our machines, it is suitable for all cutting, milling, drilling and tapping operations.
5L multipurpose superior quality oil
Designed for milling, drilling, tapping
Suitable for a wide range of materials
High quality component surface finish
Good anti-corrosion/rust performance
Contains special additives to ensure
extra lubrication capabilities
SIP 5" Drill Vice
SIP Drill Vices are constructed from heavy-duty cast iron, which means they are suitable for most trade, workshop and garage applications. Available in various sizes for different tasks.
5" drill vice size
Heavy-duty cast iron
Chrome-plated spindle
Integrated folding handle
Manufactured for durability
Strong and knurled grip
SIP stock a collection of heavy-duty metalworking tools and machines that are perfect for a range of tasks including; metal drilling, grinding, sawing, boring, sanding, and more.
Vice Size 5"
Jaw Width 120mm
Jaw Opening 120mm
Construction Cast iron
Product Specifications
| L&S Part No. | 845 1703WS19 |
|---|---|
| Manufacturer | SIP Industrial Products |
| OEM No. | 01703WS19 |
| Unit of Sale | 1 |
