Description

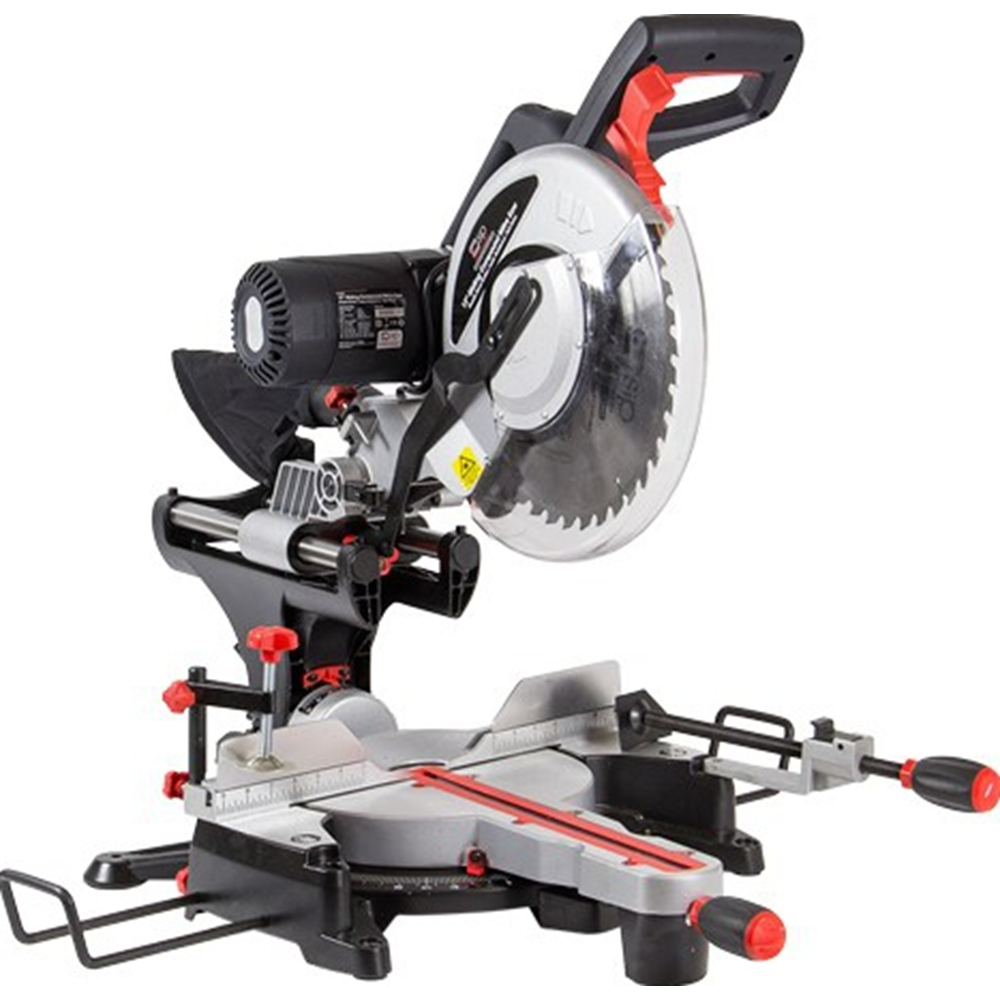

SIP 12" Sliding Compound Mitre Saw
The 12" Compound Mitre Saw is an ultra-versatile due to it's double bevel action 45° both left and right. A belt-driven motor is installed for smoother operation and extended service life.
230v (13amp) input supply
High torque 2.0kW (2.7hp) motor
-45°/0°/+45° standard mitre range
High 4500rpm no-load blade speed
Adjustable depth stop for precision
Suitable for tenoning and trenching
Belt-drive for smoothest operation
Automatic retracting lower guard
Dust extraction for cleaner usage
Rotating table with pre-set stops:
0°, 15°, 22.5°, 30°, and 45°
Technical Description:
Input Supply 230v (13amp)
Motor Power 2.0kW (2.7hp)
Mitre Range -45° / 0° / +45°
Straight Cut @ 0° x 0° 340 x 102mm
Mitre Cut @ 45° x 0° 240 x 102mm
Left Bevel @ 0° x 45° 340 x 55mm
Right Bevel @ 0° x 45° 340 x 40mm
Comp. Mitre L @ 45° x 45° 240 x 55mm
Comp. Mitre R @ 45° x 45° 240 x 40mm
Blade Diameter 305mm
Blade Bore 30mm
Blade Speed 4500rpm
Gross Weight 21kg
Packaged Dimensions 530 x 575 x 910mm

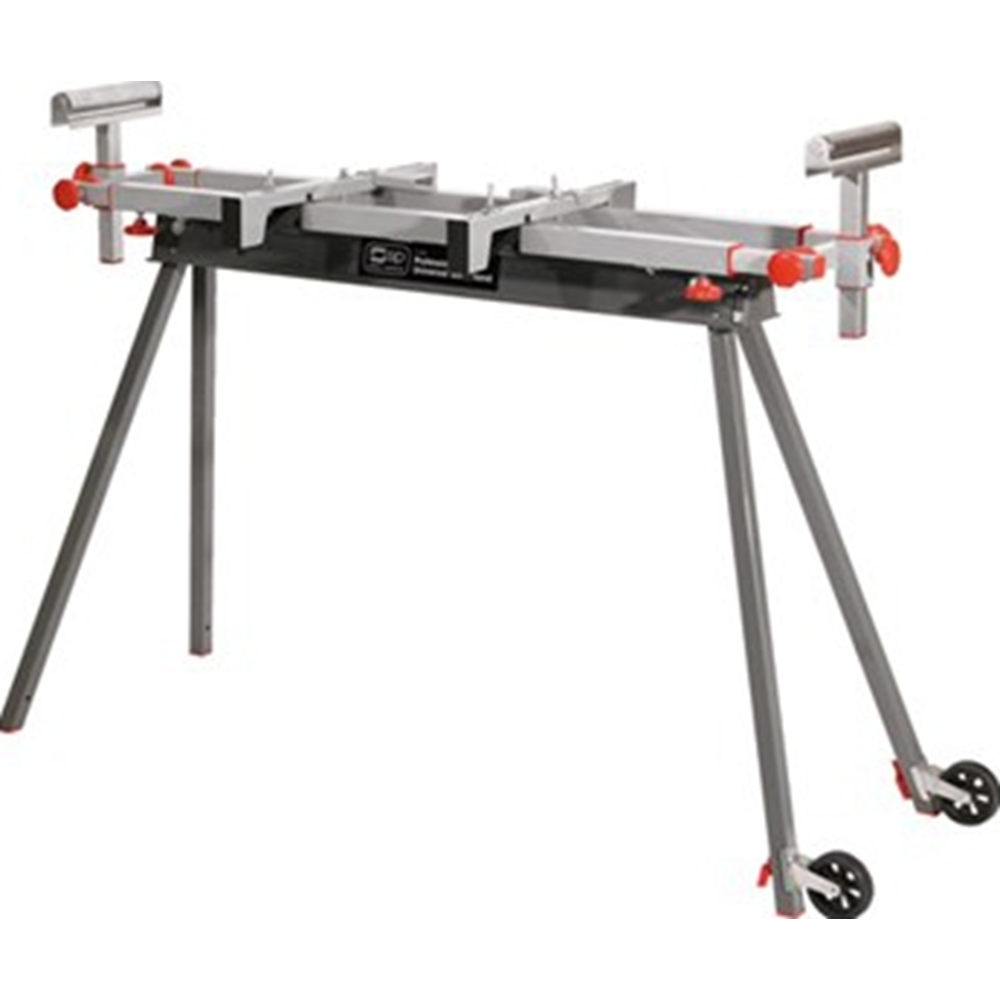

SIP Universal Saw Stand
The Universal Saw Stand features two adjustable roller supports for precision when adjusting workpiece height. Tubular steel, quick-release mounting rails and wheel kit are included.
800mm universal stand height
320mm max. work support height
1220 - 1900mm sliding rails range
Tubular steel rails for extra support
2 adjustable precision roller supports
Foldable legs help spread load weight
2 quick-release sliding rails included
Attachable wheels for movement
Solid and durable construction
Technical Description:
Table Height 800mm
Support Height 320mm
Rail Adjustment 1220 x 1900mm
Gross Weight 26kg
Packaged Dimensions 190 x 300 x 1330mm
The 12" Compound Mitre Saw is an ultra-versatile due to it's double bevel action 45° both left and right. A belt-driven motor is installed for smoother operation and extended service life.
230v (13amp) input supply
High torque 2.0kW (2.7hp) motor
-45°/0°/+45° standard mitre range
High 4500rpm no-load blade speed
Adjustable depth stop for precision
Suitable for tenoning and trenching
Belt-drive for smoothest operation
Automatic retracting lower guard
Dust extraction for cleaner usage
Rotating table with pre-set stops:
0°, 15°, 22.5°, 30°, and 45°
Technical Description:
Input Supply 230v (13amp)
Motor Power 2.0kW (2.7hp)
Mitre Range -45° / 0° / +45°
Straight Cut @ 0° x 0° 340 x 102mm
Mitre Cut @ 45° x 0° 240 x 102mm
Left Bevel @ 0° x 45° 340 x 55mm
Right Bevel @ 0° x 45° 340 x 40mm
Comp. Mitre L @ 45° x 45° 240 x 55mm
Comp. Mitre R @ 45° x 45° 240 x 40mm
Blade Diameter 305mm
Blade Bore 30mm
Blade Speed 4500rpm
Gross Weight 21kg
Packaged Dimensions 530 x 575 x 910mm
SIP Universal Saw Stand
The Universal Saw Stand features two adjustable roller supports for precision when adjusting workpiece height. Tubular steel, quick-release mounting rails and wheel kit are included.
800mm universal stand height
320mm max. work support height
1220 - 1900mm sliding rails range
Tubular steel rails for extra support
2 adjustable precision roller supports
Foldable legs help spread load weight
2 quick-release sliding rails included
Attachable wheels for movement
Solid and durable construction
Technical Description:
Table Height 800mm
Support Height 320mm
Rail Adjustment 1220 x 1900mm
Gross Weight 26kg
Packaged Dimensions 190 x 300 x 1330mm
Product Specifications
L&S Part No. | 845 1504WS19 |
---|---|
Manufacturer | SIP Industrial Products |
OEM No. | 01504WS19 |
Unit of Sale | 1 |
