Description

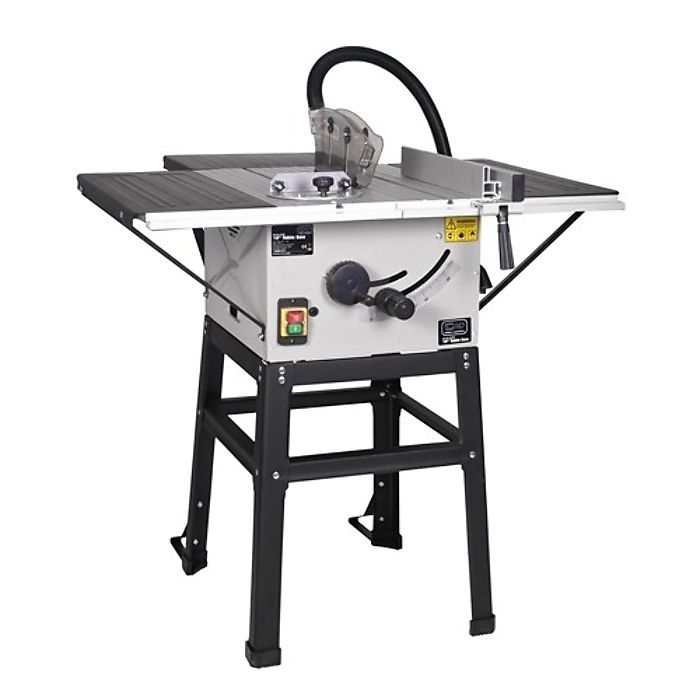

The 10" Table Saw and Stand has a large extruded aluminium table with two side extension tables, along with a sturdy blade guard, quick-lock rip fence with integrated mitre guide.
- 230v (13amp) supply
- Powerful 1.6kW (2.0hp) motor
- Large extruded aluminium table
- Complete with mitre guide and push stick
- Max. depth of cut: 60.0mm @ 45° & 75.0mm @ 90°
- Thermal overload switch for motor protection
- Stand, rear table & two side tables included
- Rise and fall tilting arbor
- Built-in dust extraction
- Quick-lock rip fence
- NVR switch
SIP offers a comprehensive range of woodworking equipment, all of which are packed with feature and provide great value.
| ITEM NO. | 01930 | Supply | 230v (13amp) | Motor | 1.6kW (2.14hp) | Max. Depth of Cut (45°) | 60.0mm | Max. Depth of Cut (90°) | 75.0mm | Table Size with Extensions | 930 x 940mm | Blade Diameter | 254.0mm | Blade Bore | 30.0mm | Blade Speed | 4,800rpm | Net Weight | 28.0kg | Packaged Dimensions | 700 x 570 x 355mm | Additional | Thermal overload button Stand included | Accessories | Replacement Blade | 06175 |
The Dovetail Jig allow necessary offsets to cut perfect male and female dovetail joints quickly, and is manufactured from robust cast iron with fully adjustable workpiece clamps.
- Easy-to-use dovetail fixture
- 31 - 300.0mm workable material
- 7/16" x 1/4" bearing router cutter
- Constructed from robust cast iron
- Fully adjustable workpiece clamps
- Allows offsets for male/female joints
- Ideal for domestic/trade workshops
- 1/2" aluminium template included
- Lightweight - weighs just 9.0kg!
- More templates are available:
- 63890 - 7/16" Template
- 63891 - 9/16" Template
- 63892 - 1/2" Template
Ideal for the SIP 1500w Router (01478)!
SIP offers a comprehensive selection of woodworking equipment for domestic and professional environments
| ITEM NO. | 01583 | Workable Material | 31.0mm - 300.0mm | Alum. Template Included | 1/2" | Bearing TCT Router Cutter | Yes (1/2" x 7/16" x 1/4" shank) | Weight | 9.0kg | Packaged Dimensions | 460 x 310 x 210mm | Additional | Perfect with SIP 1500w Router | Accessories | 01371 | 7/16" x 1/4" Bearing Router Cutter | 63890 | 7/16" Cutting Template | 63891 | 9/16" Cutting Template |
Product Specifications
| L&S Part No. | 845 1930 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | SIP Industrial Products |
| OEM No. | 01930 |
| Unit of Sale | 1 |
| Size | 700 x 570 x 355mm |
