Description

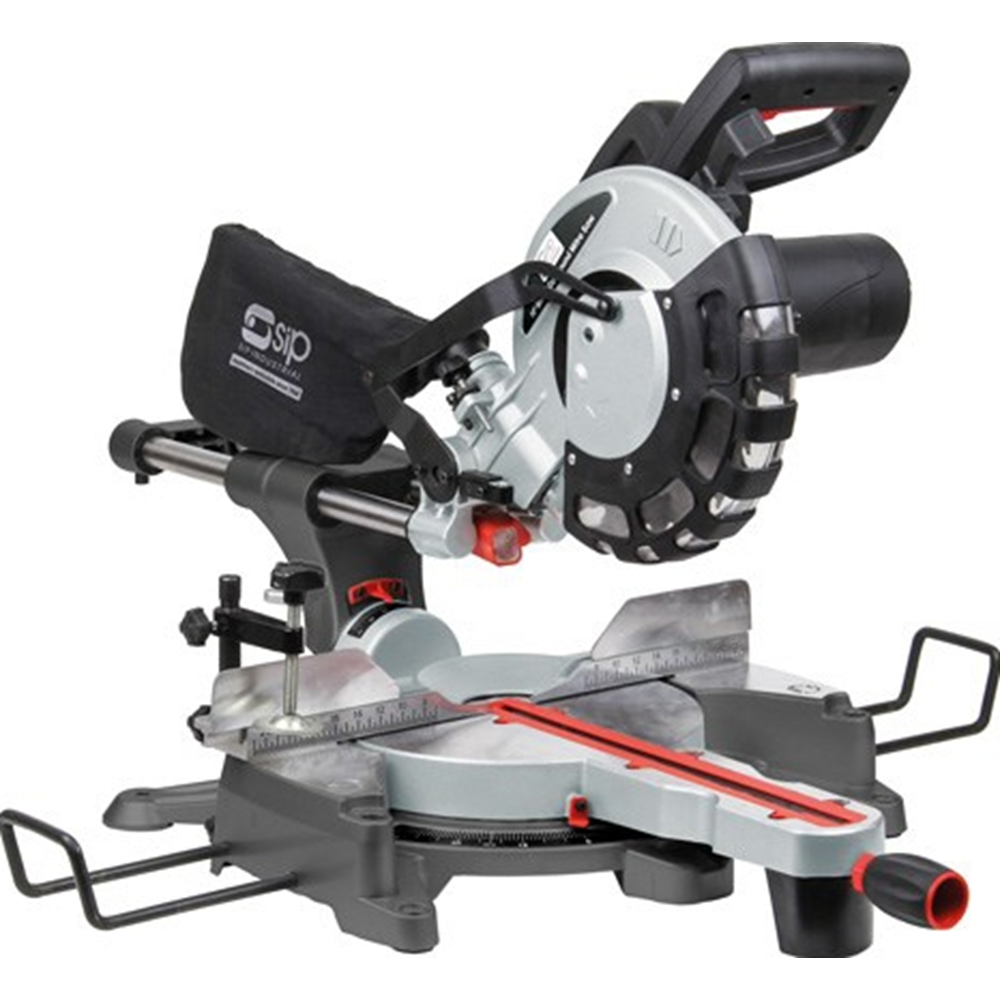

SIP 10" Sliding Compound Mitre Saw (Laser)
The 10" Compound Mitre Saw boasts large cutting capacities for all types of cut. The integrated laser provides increased accuracy, while an automatic retracting blade guard adds safety.
230v (13amp) input supply
High torque 2.0kW (2.7hp) motor
-45°/0°/+45° standard mitre range
High 5500rpm no-load blade speed
Adjustable depth stop for precision
Suitable for tenoning and trenching
Sliding action for increased capacity
Laser for further increased accuracy
Automatic retracting lower guard
Dust extraction for cleaner usage
Pre-set stops at common angles:
0°, 15°, 22.5°, 30°, and 45°
Technical Description:
Input Supply 230v (13amp)
Motor Power 2.0kW (2.7hp)
Mitre Range -45° / 0° / +45°
Straight Cut @ 0° x 0° 340 x 80mm
Mitre Cut @ 45° x 0° 240 x 80mm
Bevel Cut @ 0° x 45° 340 x 50mm
Comp. Mitre @ 45° x 45° 240 x 50mm
Blade Diameter 254mm
Blade Bore 30mm
Blade Speed 5500rpm
Gross Weight 18kg
Packaged Dimensions 390 x 550 x 810mm

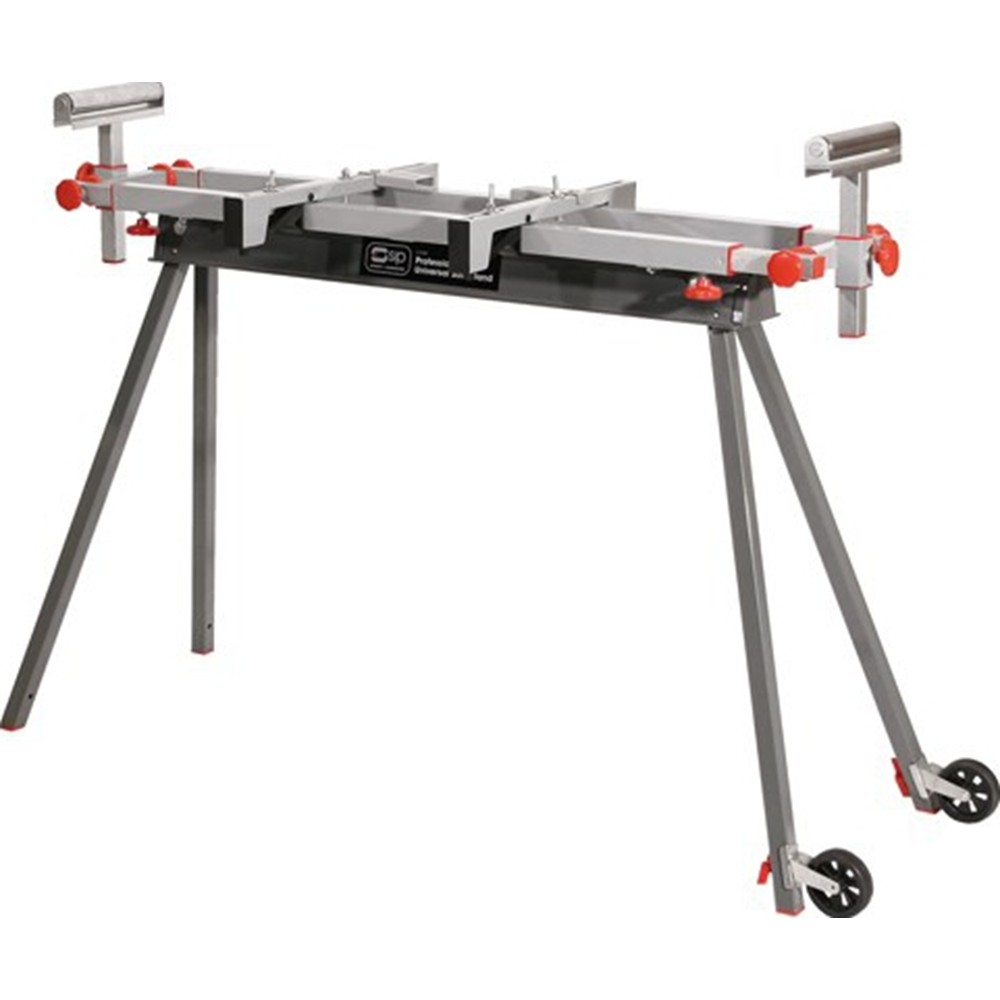

SIP Universal Saw Stand
The Universal Saw Stand features two adjustable roller supports for precision when adjusting workpiece height. Tubular steel, quick-release mounting rails and wheel kit are included.
800mm universal stand height
320mm max. work support height
1220 - 1900mm sliding rails range
Tubular steel rails for extra support
2 adjustable precision roller supports
Foldable legs help spread load weight
2 quick-release sliding rails included
Attachable wheels for movement
Solid and durable construction.
Technical Description:
Table Height 800mm
Support Height 320mm
Rail Adjustment 1220 x 1900mm
Gross Weight 26kg
Packaged Dimensions 190 x 300 x 1330mm
The 10" Compound Mitre Saw boasts large cutting capacities for all types of cut. The integrated laser provides increased accuracy, while an automatic retracting blade guard adds safety.
230v (13amp) input supply
High torque 2.0kW (2.7hp) motor
-45°/0°/+45° standard mitre range
High 5500rpm no-load blade speed
Adjustable depth stop for precision
Suitable for tenoning and trenching
Sliding action for increased capacity
Laser for further increased accuracy
Automatic retracting lower guard
Dust extraction for cleaner usage
Pre-set stops at common angles:
0°, 15°, 22.5°, 30°, and 45°
Technical Description:
Input Supply 230v (13amp)
Motor Power 2.0kW (2.7hp)
Mitre Range -45° / 0° / +45°
Straight Cut @ 0° x 0° 340 x 80mm
Mitre Cut @ 45° x 0° 240 x 80mm
Bevel Cut @ 0° x 45° 340 x 50mm
Comp. Mitre @ 45° x 45° 240 x 50mm
Blade Diameter 254mm
Blade Bore 30mm
Blade Speed 5500rpm
Gross Weight 18kg
Packaged Dimensions 390 x 550 x 810mm
SIP Universal Saw Stand
The Universal Saw Stand features two adjustable roller supports for precision when adjusting workpiece height. Tubular steel, quick-release mounting rails and wheel kit are included.
800mm universal stand height
320mm max. work support height
1220 - 1900mm sliding rails range
Tubular steel rails for extra support
2 adjustable precision roller supports
Foldable legs help spread load weight
2 quick-release sliding rails included
Attachable wheels for movement
Solid and durable construction.
Technical Description:
Table Height 800mm
Support Height 320mm
Rail Adjustment 1220 x 1900mm
Gross Weight 26kg
Packaged Dimensions 190 x 300 x 1330mm
Product Specifications
L&S Part No. | 845 1511WS19 |
---|---|
Manufacturer | SIP Industrial Products |
OEM No. | 01511WS19 |
Unit of Sale | 1 |
