Description
Overview:

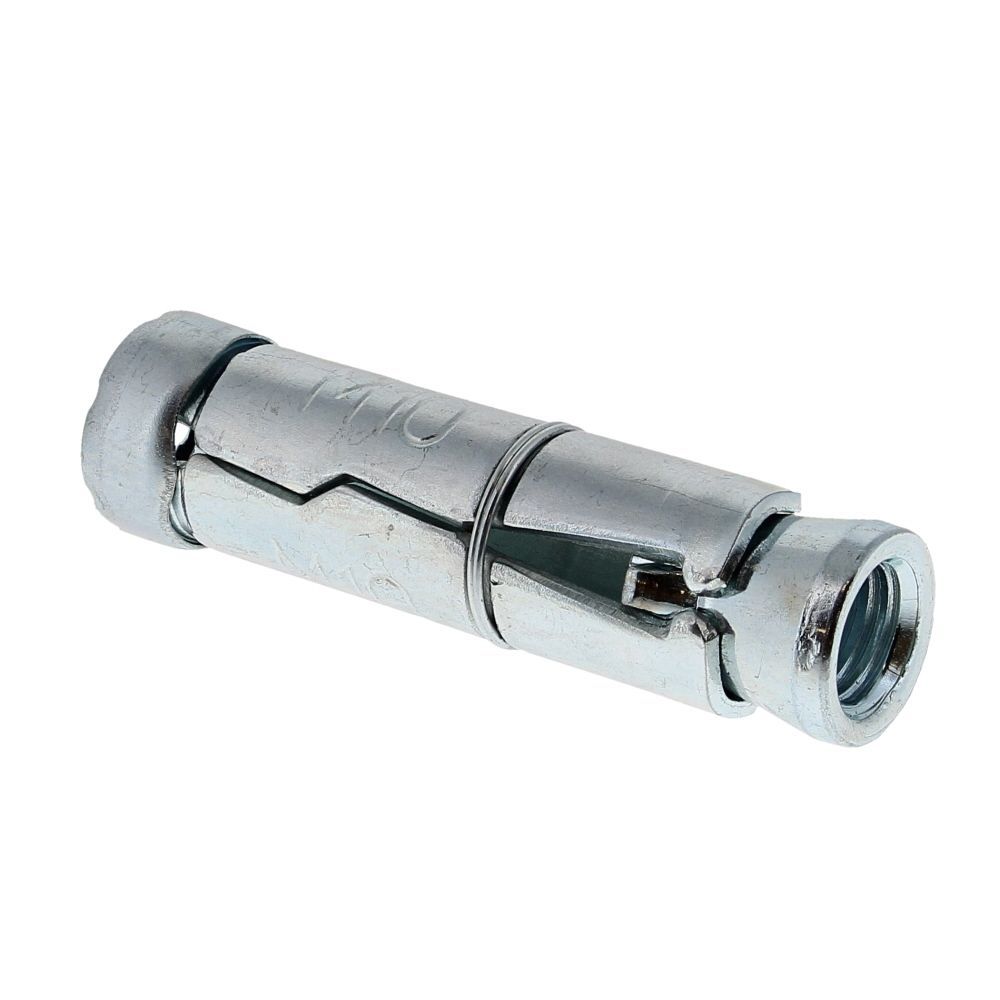

The Mason Mate Shield Anchor Only, Size M16 (MPN: 903 2234), is a heavy-duty mechanical fixing for anchoring into masonry. Made from durable metal with a traditional 4-piece segmented body and a captive expansion cone, it delivers a dependable hold in concrete, solid brick, and similar substrates. The anchor measures 113mm in length and requires a 24mm diameter drilled hole. Designed to be used with an M16 bolt or threaded rod (not included), it is suitable for securing brackets, machinery baseplates, racking, and structural fittings on site or at home. Supplied individually, it offers flexibility for small repairs or larger installations where precise quantities are needed. This is the anchor body only, ready for straightforward through-fixing or pre-positioned installation.
Key Features:
- M16 shield anchor for use with M16 bolts or threaded rod (bolt/rod not included)
- Requires a 24mm hole; overall anchor length 113mm for reliable embedment
- 4-piece segmented shield provides strong radial expansion and firm grip in masonry
- Captive expansion cone helps prevent rotation and ensures consistent setting
- Suitable for most masonry types, including concrete and solid brick
- Strong and dependable hold for heavy-duty fixings when correctly installed
- Sold individually, ideal for precise job-by-job quantities
- Straightforward installation: drill, clean the hole, insert anchor, and tighten to set
- Compatible with through-fixing and pre-positioned methods
- Manufactured by Mason Mate for consistent quality and fit
Typical Applications:
Securing handrails, guardrails, angle brackets, pipe supports, cable tray hangers, machinery baseplates, pallet racking, shelving systems, door frames, timber wall plates, signage brackets, balustrades, and general steel fabrications to concrete or brickwork in workshops, warehouses, plant rooms, and domestic settings.
Also known as:
Shield fixing, bolt anchor, heavy-duty fixing, mechanical fixing, expansion shield, concrete fixing, masonry fixing, mechanical anchor bolt, construction anchor, wall fixing anchor.
Product Specifications
| L&S Part No. | 903 2234 |
|---|---|
| Manufacturer | Masonmate |
| Unit of Sale | Each |
| Size | M16 - Hole Size 24mm |
| Key Features | - M16 shield anchor for M16 bolts or threaded rod - Requires 24mm diameter hole, 113mm anchor length - 4-piece segmented shield ensures strong radial expansion - Captive expansion cone prevents rotation during setting - Suitable for concrete and solid brick substrates |
