Description
Overview:

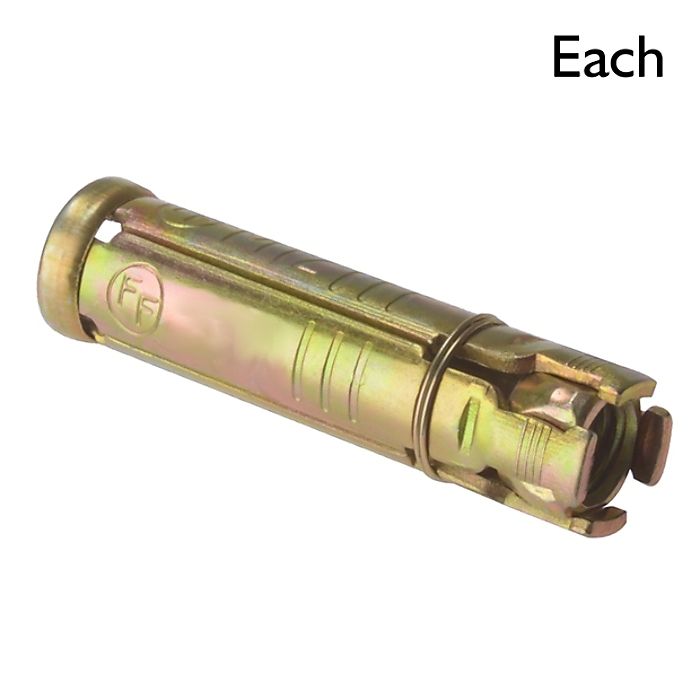

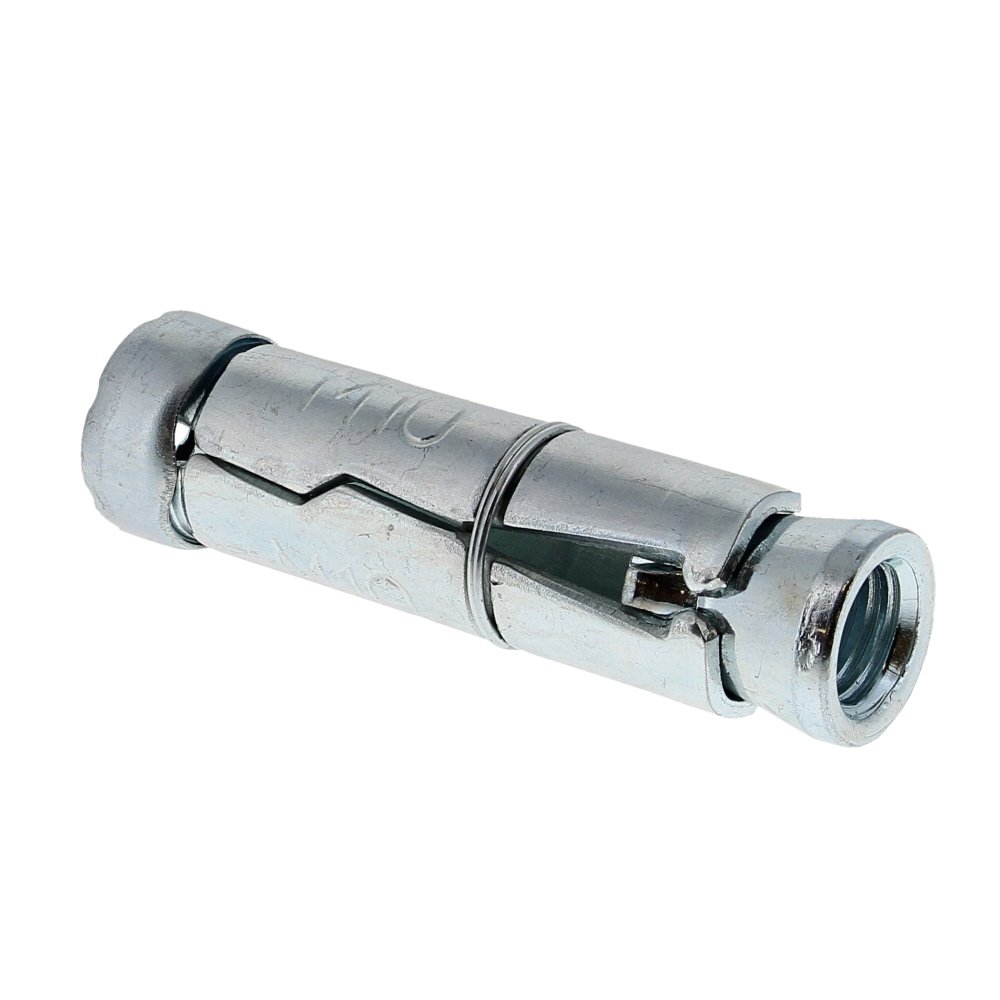

The Mason Mate Shield Anchor Only, Size M10 (hole size 16 mm), is a heavy-duty mechanical fixing for secure anchoring in solid masonry. It uses a traditional 4-piece segmented steel body with a captive expansion cone to deliver a firm, consistent grip once tightened. Designed for concrete, solid brick, and natural stone, it is suitable for fixing brackets, frames, handrails, racking, machinery feet, and other hardware to walls or floors. The M10 internal thread accepts standard M10 bolts or studs for flexible assembly. A corrosion-resistant plated finish helps protect against rust in typical indoor and sheltered outdoor environments. Supplied individually, it is practical for both small repairs and larger installations where precise quantities are needed.
Key Features:
- M10 shield anchor body for use with M10 bolts or studs
- Requires a 16 mm drill hole for correct installation
- 4-piece segmented body provides strong radial expansion and grip
- Captive expansion cone for reliable setting and reduced spin in the hole
- Robust steel construction with a corrosion-resistant plated finish
- Suited to solid substrates: concrete, solid brick, and stone
- Through-fixing friendly: position the fixture and set in one operation
- Sold individually to match exact job quantities and reduce waste
- Designed for dependable performance in residential, commercial, and light industrial settings
- Part of a wider range available from M6 to M16 for consistent specification across fix sizes
Typical Applications:
Securing machinery bases, compressors, generators, workbenches, pallet racking, shelving, cable trays, gate or handrail posts, pipe clips, angle brackets, and security fixtures to concrete, brick, or stone. Suitable for maintenance, refurbishment, and new-build tasks where a strong, removable anchor is required.
Also known as:
Shield bolt, shield fixing, wall fixing anchor, expanding anchor, sleeve-type expansion anchor, masonry fixing bolt, heavy-duty anchor, through-bolt style anchor.
Product Specifications
| L&S Part No. | 903 2232 |
|---|---|
| Manufacturer | Masonmate |
| OEM No. | 903 2232 50PK |
| Unit of Sale | Each |
| Size | M10 - Hole Size 16mm |
| Key Features | - M10 shield anchor for M10 bolts or studs - Requires 16 mm drill hole for installation - 4-piece body ensures strong radial expansion - Captive cone reduces spin during setting - Corrosion-resistant plated steel construction |
