Description
Overview:

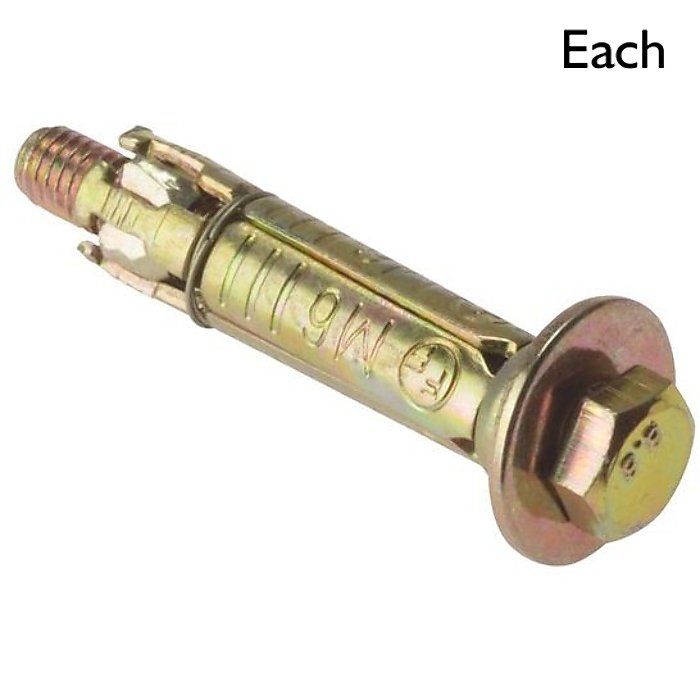

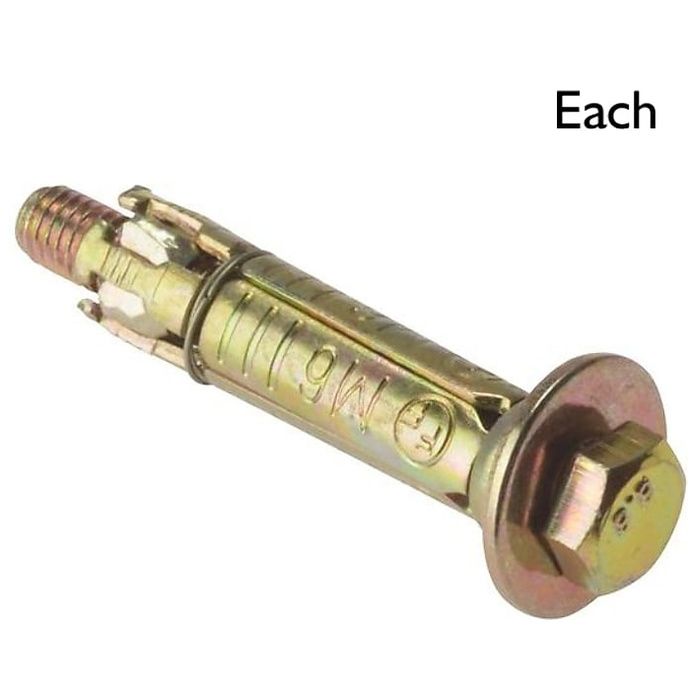

The Mason Mate Shield Anchor - Loose Bolt, M8 x 40 (14 mm hole size), is a heavy‐duty mechanical fixing for solid masonry such as concrete, brick and natural stone. Made from durable steel with a corrosion‐resistant zinc passivated finish, it uses a four‐piece segmented shield and a captive expansion cone to deliver strong, reliable holding power. The loose bolt configuration suits fixtures with clearance holes and allows easy removal or replacement of the bolt without disturbing the shield. Drill a 14 mm hole, insert the anchor, then tighten the hex bolt to expand the shield against the substrate. Supplied and sold individually, it's a practical choice for mounting brackets, machinery feet, racking, handrails and other construction or garden equipment fixings.
Key Features:
- M8 thread x 40 mm length with 14 mm drill hole for correct installation
- Four‐piece segmented shield for strong expansion and reliable grip in solid masonry
- Captive expansion cone helps prevent spinning and ensures consistent setting
- Loose bolt style suits through‐fixing of brackets, plates and base feet
- Steel construction with zinc passivated finish for corrosion resistance and long service life
- Compatible with concrete, solid brick and natural stone substrates (not for hollow block)
- Tightens with standard hand tools for straightforward, repeatable installation
- Secure hold for heavy‐duty applications when installed to best practice
- Allows bolt removal/replacement while the shield remains set in the base material
- Part of a wider range covering common sizes from M6 to M16
Typical Applications:
Fixing machinery baseplates, compressor or generator feet, wall and floor brackets, pipe clamps, racking and shelving uprights, handrails and balustrade brackets, gate or post shoes, and general construction fixings into concrete, solid brick or stone. Ideal for workshops, site installations, plant rooms, garages and garden structures where a robust masonry fixing is required.
Also known as:
Wall anchor, heavy‐duty anchor bolt, shield fixing, loose‐bolt shield, expansion shield, four‐segment shield anchor, masonry fixing for solid walls, anchor bolt for concrete and brick.
Product Specifications
| L&S Part No. | 903 2205 |
|---|---|
| Manufacturer | Masonmate |
| OEM No. | 903 2205 50PK |
| Unit of Sale | Each |
| Size | M8 x 40 - Hole Size 14mm |
| Key Features | - M8 thread x 40 mm length, 14 mm drill hole - Four-piece segmented shield for strong expansion - Captive expansion cone prevents spinning - Steel with zinc passivated finish for corrosion resistance - Suitable for concrete, solid brick, and natural stone |
