Description
Overview:

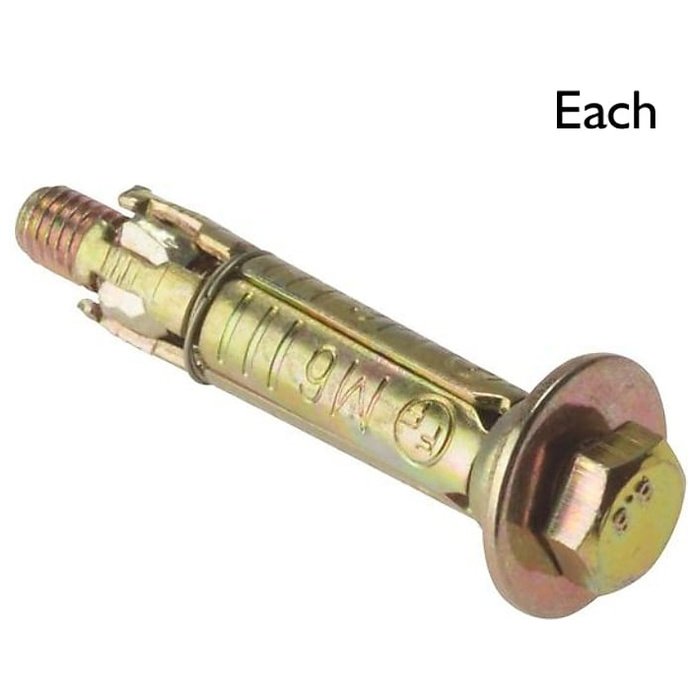

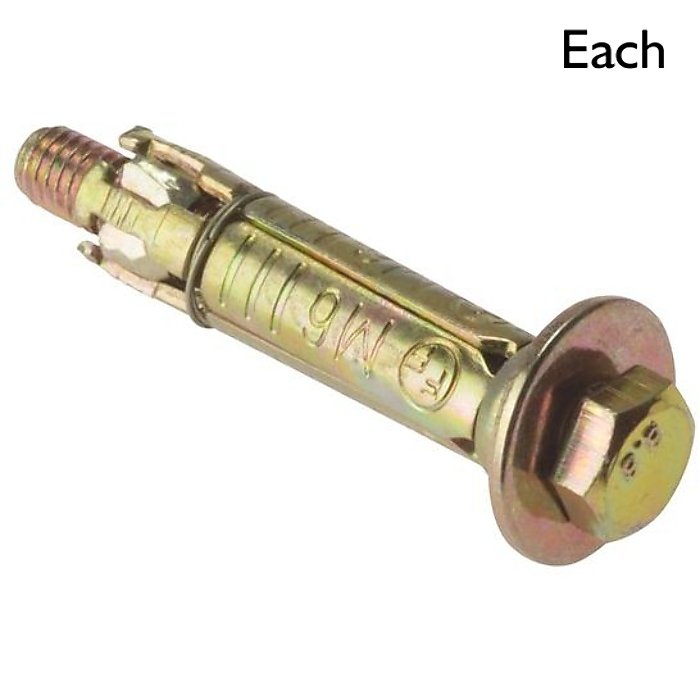

The Mason Mate Shield Anchor - Loose Bolt, M6 x 40 with 10 mm hole size, is a heavy‐duty expansion fixing for solid masonry such as concrete, brick and natural stone. Made from steel with a corrosion‐resistant zinc passivated finish, it uses a four‐piece segmented shield and a captive expansion cone to deliver a firm, reliable hold. The loose bolt configuration allows the bolt to be removed and refitted after installation, useful for mounting brackets, machinery baseplates, racking and frames. Suitable for trade and DIY use on construction and maintenance jobs, this M6 x 40 mm size offers a compact fixing where space is limited while maintaining strong pull‐out resistance in sound substrates. Supplied individually to match job quantities without waste.
Key Features:
- M6 x 40 mm loose bolt shield anchor for solid masonry
- 10 mm drill hole size for straightforward installation
- 4‐piece segmented body delivers strong radial expansion and grip
- Captive expansion cone helps prevent slip during tightening
- Steel construction with zinc passivation for corrosion resistance
- Loose bolt design allows fixture removal or adjustment after fixing
- Suits concrete, solid brick and dense block (not for soft aerated blocks)
- Compact length for neat installations in shallow substrates
- Consistent, predictable setting with standard hand tools
- Part of the Mason Mate range with sizes from M6 x 10 to M16 x 60
- Supplied individually to match project needs and reduce waste
Typical Applications:
Securing brackets, handrails, machinery feet, racking, cable tray supports, pipe clips, angle plates, gates, signage, shelving uprights and safety stops to sound concrete, brick or stone. Ideal for workshop fit‐outs, site temporary works, plant and equipment mounting, fencing hardware and general facilities maintenance where a dependable masonry fixing is required.
Also known as:
Shield bolt, sleeve anchor, expansion fixing, masonry fixing, loose bolt anchor, segment shield anchor, heavy‐duty masonry bolt, captive‐cone anchor, fixing for concrete and brickwork.
Product Specifications
| L&S Part No. | 903 2202 |
|---|---|
| Manufacturer | Masonmate |
| OEM No. | 903 2202 50PK |
| Unit of Sale | Each |
| Size | M6 x 40 - Hole Size 10mm |
| Key Features | - M6 x 40 mm loose bolt for solid masonry - 10 mm drill hole size for easy installation - Steel with zinc passivation for corrosion resistance - 4-piece segmented body ensures strong grip - Suitable for concrete, brick, and dense block |
