Description
Overview:

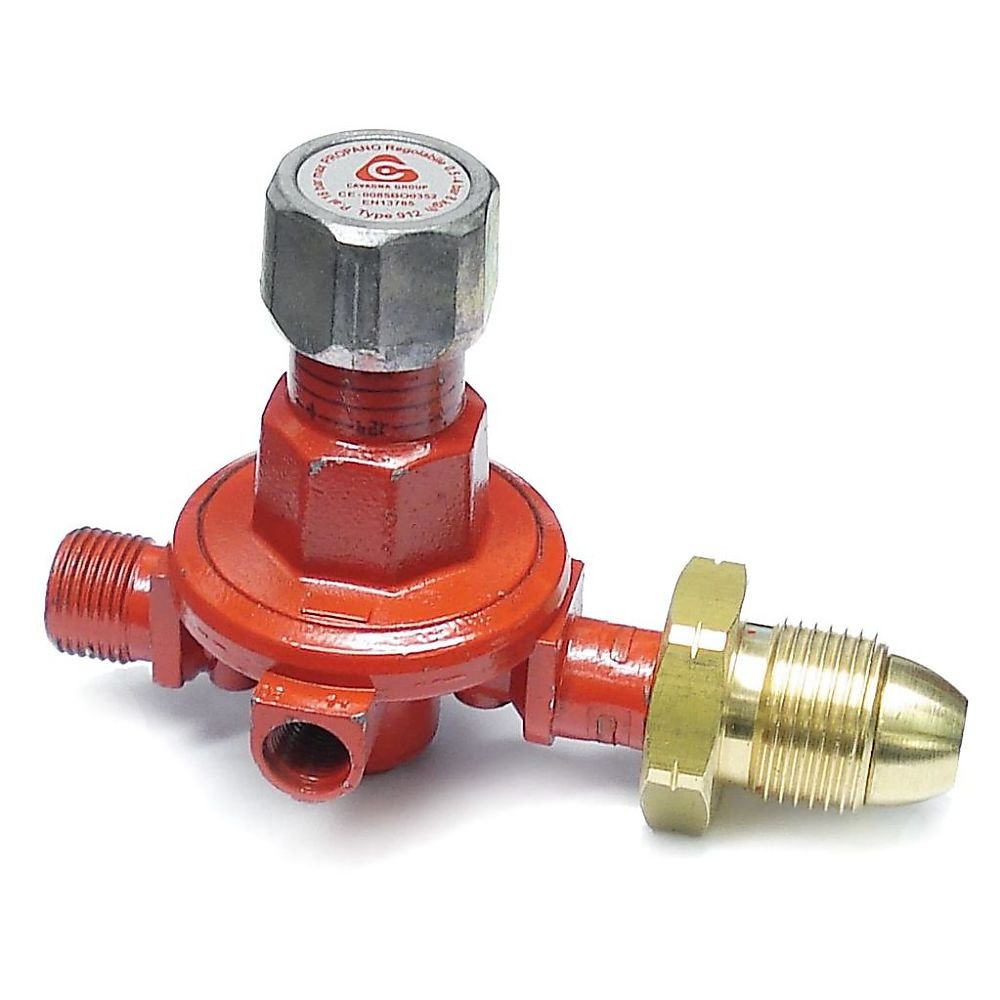

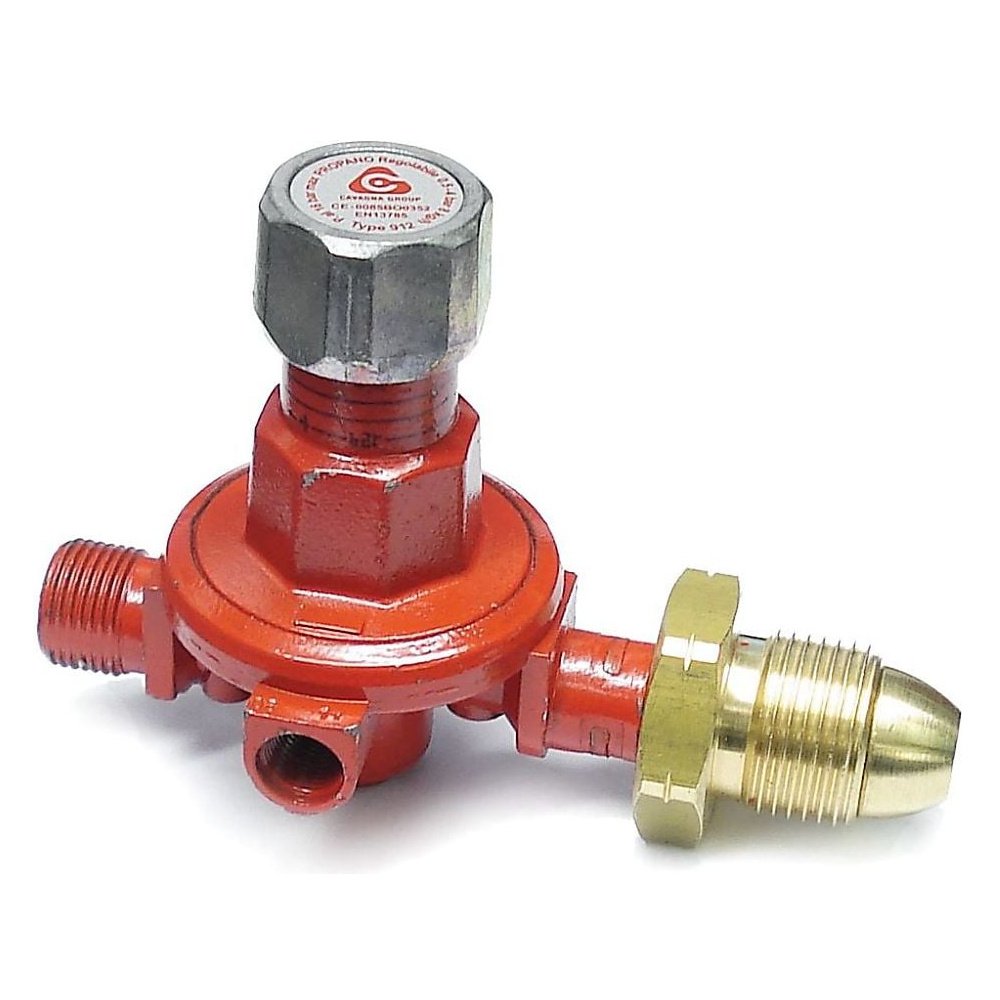

The Propane Regulator Type 912 Adjustable High‐Pressure 0.5-4 bar is a single‐stage LPG regulator built for accurate control of propane supply to tools and machinery. It has a durable brass body with zinc‐plated components and an NBR diaphragm for stable performance and long service life. The inlet uses a POL cylinder thread specified as W21.8 × 1/14" LH (left‐hand; pitch approx. 1.814 mm), and the outlet is 1/4" BSP female (6.35 mm) with a 4.8 mm hose nozzle for straightforward hose connection. With an adjustable outlet of 0.5-4 bar, inlet capacity of 0.3-16 bar, and flow of 8-14 kg/h, it supports a wide range of propane‐powered equipment. Operating temperature is -20 °C to +50 °C. Tightening is via 30 mm AF spanner flats for a secure fit.
Key Features:
- Adjustable outlet pressure 0.5-4 bar for precise control across different appliances
- High flow capacity of 8-14 kg/h for demanding burners and heaters
- Robust brass construction with zinc‐plated parts for corrosion resistance and durability
- NBR diaphragm for reliable regulation and consistent output pressure
- POL cylinder connection W21.8 × 1/14" LH (pitch approx. 1.814 mm) for standard propane bottles
- Outlet 1/4" BSP female (6.35 mm) plus 4.8 mm hose nozzle for easy hose attachment
- Single‐stage design for steady performance with simple adjustment
- Wide operating range from -20 °C to +50 °C for year‐round use
- Conforms to EN 13785 and UL‐listed standards for safety and quality assurance
- 30 mm AF spanner flats for quick, secure fitting and removal
Typical Applications:
Used on propane cylinders to supply roofing torches, space heaters, industrial burners, bitumen boilers, weed burners, and other propane‐powered tools that require a stable high‐pressure feed. Suitable for workshop, site, farm, and landscaping use where adjustable control of propane pressure helps optimise performance and reduce flame instability.
Also known as:
LPG regulator, high‐pressure LPG controller, gas pressure reducer, POL regulator, adjustable propane controller, single‐stage propane control valve, cylinder‐mounted propane reducer.
Product Specifications
| L&S Part No. | 200 012 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - Adjustable outlet pressure 0.5-4 bar for precise control - High flow capacity of 8-14 kg/h for demanding equipment - Brass body with zinc-plated parts for corrosion resistance - POL cylinder connection W21.8 × 1/14" LH for standard bottles - Operating range from -20 °C to +50 °C for year-round use |
