Description
Overview:

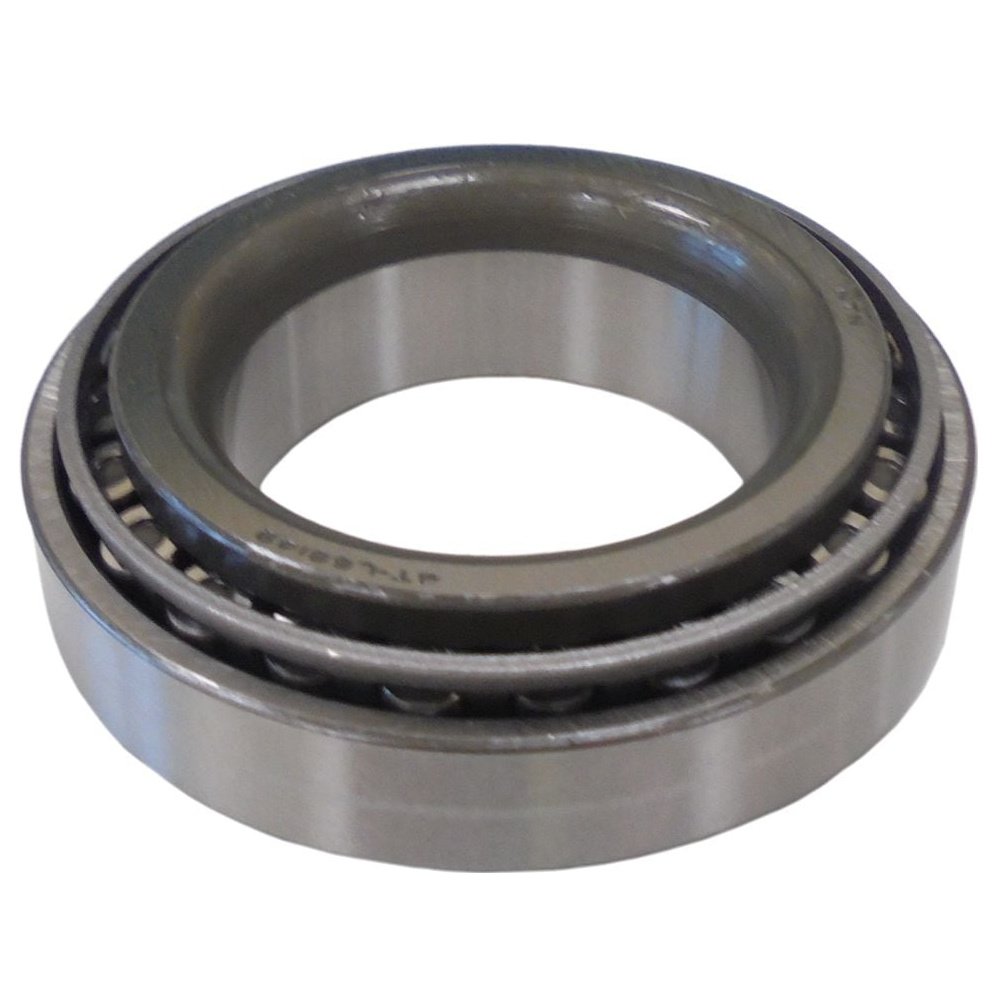

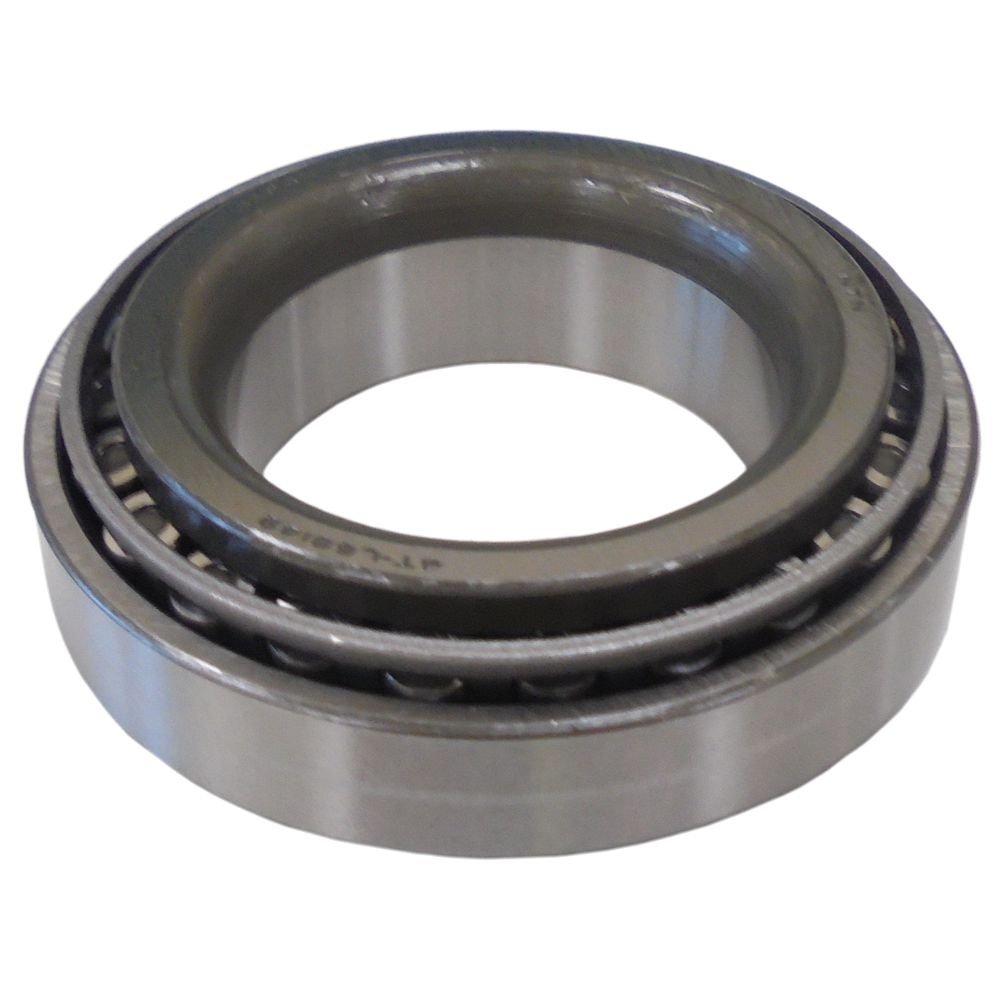

The Taper Roller Bearing - 4T-L68149/L68111 is a premium Japanese taper roller bearing set designed for smooth, reliable support of rotating shafts in tough working conditions. Supplied as a matched cone (4T-L68149) and cup (L68111), it is manufactured from high-grade, heat-treated bearing steel with precision-ground raceways for consistent performance. This bearing handles combined radial and axial loads, making it suitable for wheel hubs, transmissions, PTO drives, and spindle assemblies found across construction and garden machinery. With an inside diameter of 34.98mm, an outside diameter of 59.97mm, and an assembled width of 15.87mm, it matches a common inch-series size used widely in industry. A practical replacement choice for maintenance and repair, referenced under MPN 919 0013.
Key Features:
- Premium Japanese taper roller bearing set (cone 4T-L68149 and cup L68111)
- High-grade bearing steel for strength, wear resistance, and longevity
- Tapered geometry supports combined radial and thrust loads efficiently
- Precision-ground raceways and rollers for smooth running and reduced friction
- Standardised size: 34.98mm ID, 59.97mm OD, 15.87mm width for straightforward selection
- Reliable operation in demanding, high-load and high-duty environments
- Suitable for wheel hubs, gearboxes, PTO inputs, and machinery spindles
- Consistent quality control for stable running clearance and lower heat build-up
- Straightforward fitting with press-fit cup and slide-on cone (with correct tooling and procedure)
- Interchangeable with recognised industry part numbers for easy cross-reference
- Helpful reference: Manufacturer Part Number (MPN) 919 0013
Typical Applications:
Used in wheel hubs and axle assemblies on ride-on mowers and garden tractors, spindle carriers on mower decks, gearbox and transmission inputs on compact construction equipment, and PTO drive housings. Common in machinery such as compactors, chippers, tillers, and mixers where durable, low-friction rotation is required under combined load. Suitable for both maintenance and new assembly work.
Also known as:
Tapered roller bearing set, cone and cup set, L68149 cone with L68111 cup, inch-series tapered roller, hub bearing set, shaft bearing, L68149/11 set, metric equivalent 34.98 x 59.97 x 15.87 bearing.
Alternate Part Numbers:
4T-L68149/L68111, 4TL68149L68111
Product Specifications
| L&S Part No. | 919 0013 |
|---|---|
| Unit of Sale | 1 |
| Size | Inside diameter: 34.98mm Outside diameter: 59.97mm Width: 15.87mm |
| Key Features | - Matched cone 4T-L68149 and cup L68111 set - High-grade, heat-treated bearing steel - Supports radial and axial loads - Dimensions: 34.98mm ID, 59.97mm OD, 15.87mm width - Suitable for wheel hubs and transmissions |
