Description
Overview:

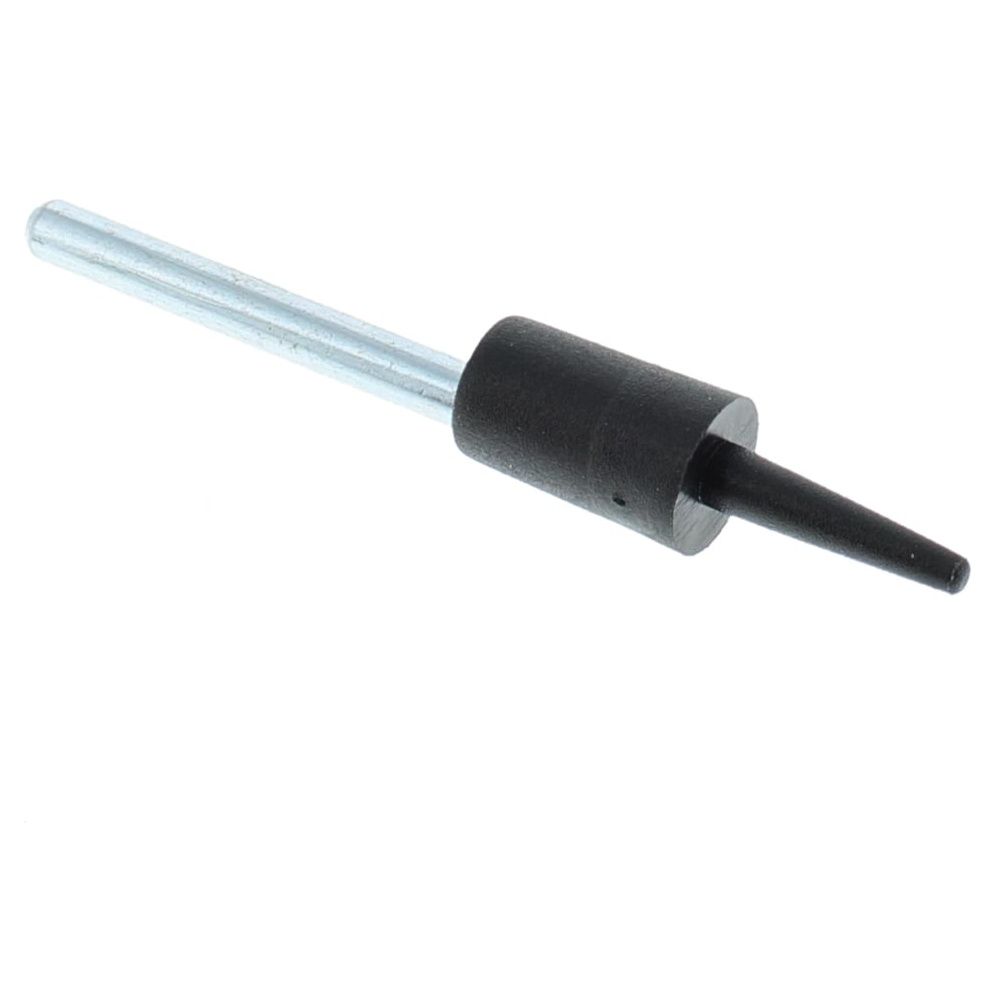

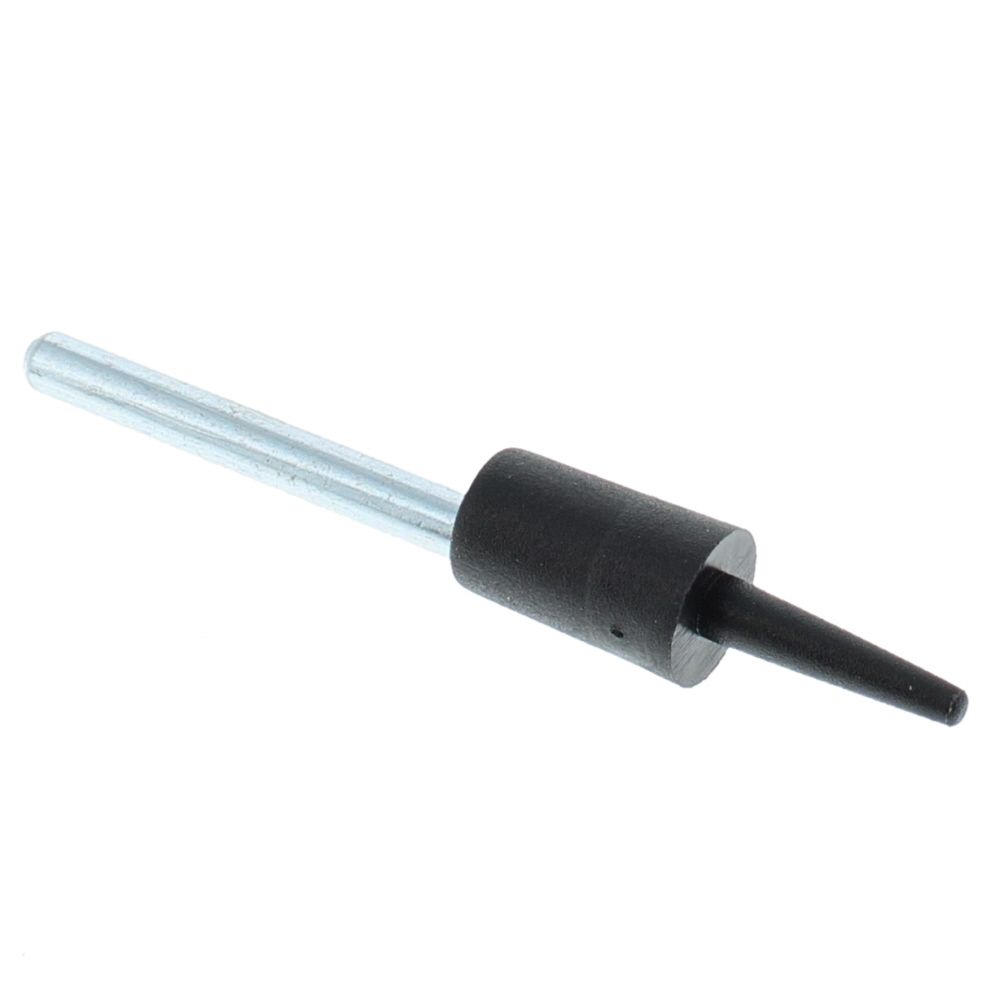

This genuine DeWalt pin is a small but critical metal component used within the drive/hammer mechanism of selected DeWalt hammer drills. It keeps mating parts correctly positioned and secure under load, helping maintain smooth operation and consistent impact performance. Manufactured from durable metal for workshop and site use, it is designed as a direct-fit service part for specific models, including the D21570K (Type 1) and DWD522KS (Type 1). If your drill shows excessive play, intermittent hammer action, or misalignment after heavy use, replacing worn pins is a common and effective maintenance step. Supplied to OEM specification under part number 648298-00, it supports reliable day-to-day running for tradespeople and DIY users who need dependable performance from their DeWalt hammer drills.
Key Features:
- Genuine DeWalt part for assured fit, function and compatibility
- Direct replacement for OEM No. 648298-00 to simplify ordering and maintenance
- Durable metal construction for longevity under hammer and rotational loads
- Helps restore correct alignment of internal components for smooth operation
- Suitable for routine servicing to prevent premature wear elsewhere in the tool
- Compact form factor for quick, straightforward installation with basic hand tools
- Matches original dimensions to avoid modifications or shims
- Supports reliable hammer drilling in masonry and other demanding materials
Typical Applications:
Used during servicing and repairs of DeWalt hammer drills to replace worn or damaged pins within the mechanism. Ideal for restoring consistent hammer action, reducing rattle or play, and maintaining efficiency on site or in the workshop. Suitable for preventative maintenance schedules and fast turnarounds.
Also known as:
Locating pin, retaining pin, drive pin, dowel pin for hammer drill, metal alignment pin for DeWalt drills, internal mechanism pin, service pin.
Fits Models:
D21570K
DWD522KS
DWD524KS
DWD525KS
DWD530KS
Alternate Part Numbers:
648298-00, 64829800
Product Specifications
| L&S Part No. | 648298-00 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Black & Decker |
| OEM No. | 648298-00 |
| Unit of Sale | 1 |
| Machine Type | Hammer Drill |
| Fits Brands | Black & Decker, DeWalt |
| Key Features | - Genuine DeWalt part ensures fit and compatibility - Direct replacement for OEM No. 648298-00 - Durable metal construction for longevity - Restores correct alignment for smooth operation - Fits models D21570K, DWD522KS, DWD524KS, DWD525KS, DWD530KS |
| Fits Models | D21570K Type 1 | DWD522KS Type 1 | DWD524KS Type 1 | DWD525KS Type 1 | DWD530KS Type 1 |
