Description

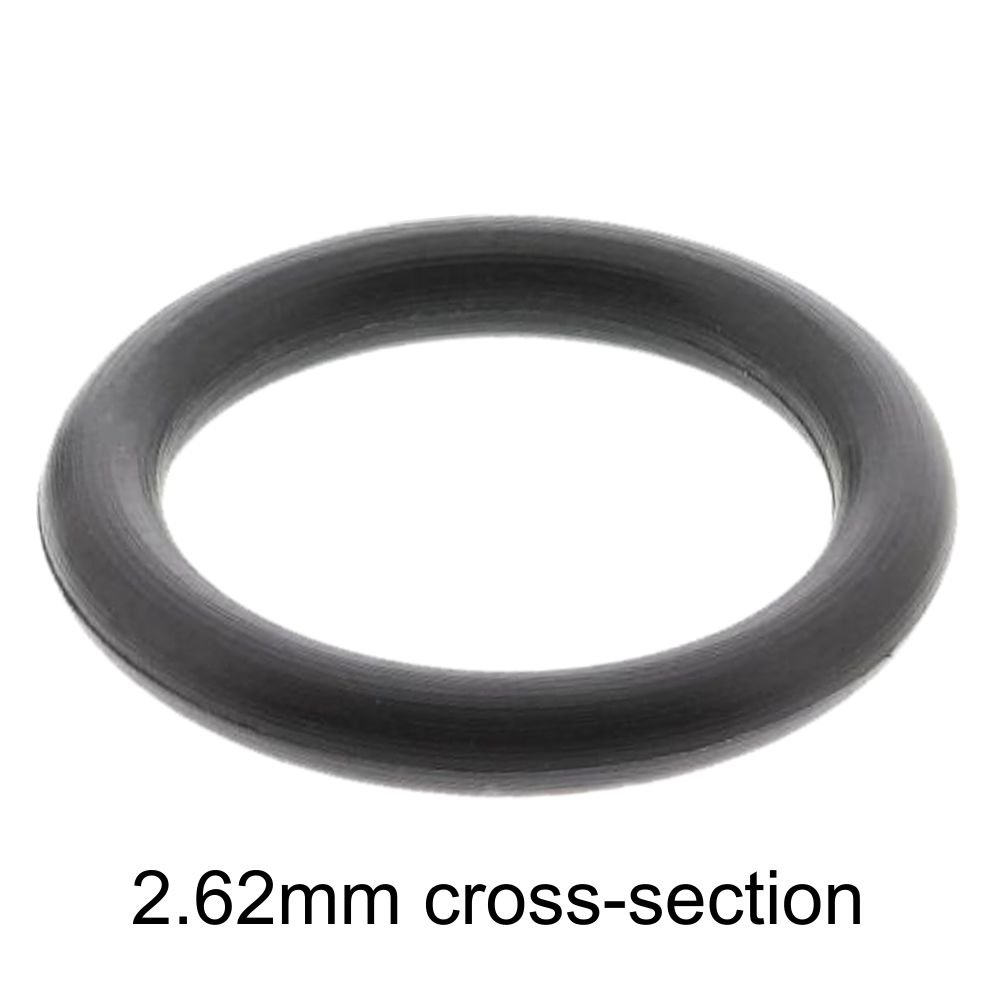

O-ring 2.62mm Cross section CS Nitrile 70 ShA
ASTM D2000 M2 BG714 A14 B14 EF11 EF21 EO14 EO34 F53
ASTM D2000- Recognised Standard Clarification for Rubber Products
M2- Metric (Number 2 is the grade of material)
BG- "B" means oil resistant - "G" means the heat resistance testing
714- is the shore hardness (x10), and 14 relates to the minimum tensile strength (in megapicsals MPa)
The remaining numbers relate to the specific tests carried out on the materials-
B14 ("B" is compression test) and 1 being the test method and 4 the test temperature (22 hours at 100 deg C)
ASTM D2000 M2 BG714 A14 B14 EF11 EF21 EO14 EO34 F53
ASTM D2000- Recognised Standard Clarification for Rubber Products
M2- Metric (Number 2 is the grade of material)
BG- "B" means oil resistant - "G" means the heat resistance testing
714- is the shore hardness (x10), and 14 relates to the minimum tensile strength (in megapicsals MPa)
The remaining numbers relate to the specific tests carried out on the materials-
B14 ("B" is compression test) and 1 being the test method and 4 the test temperature (22 hours at 100 deg C)
