Description
Overview:

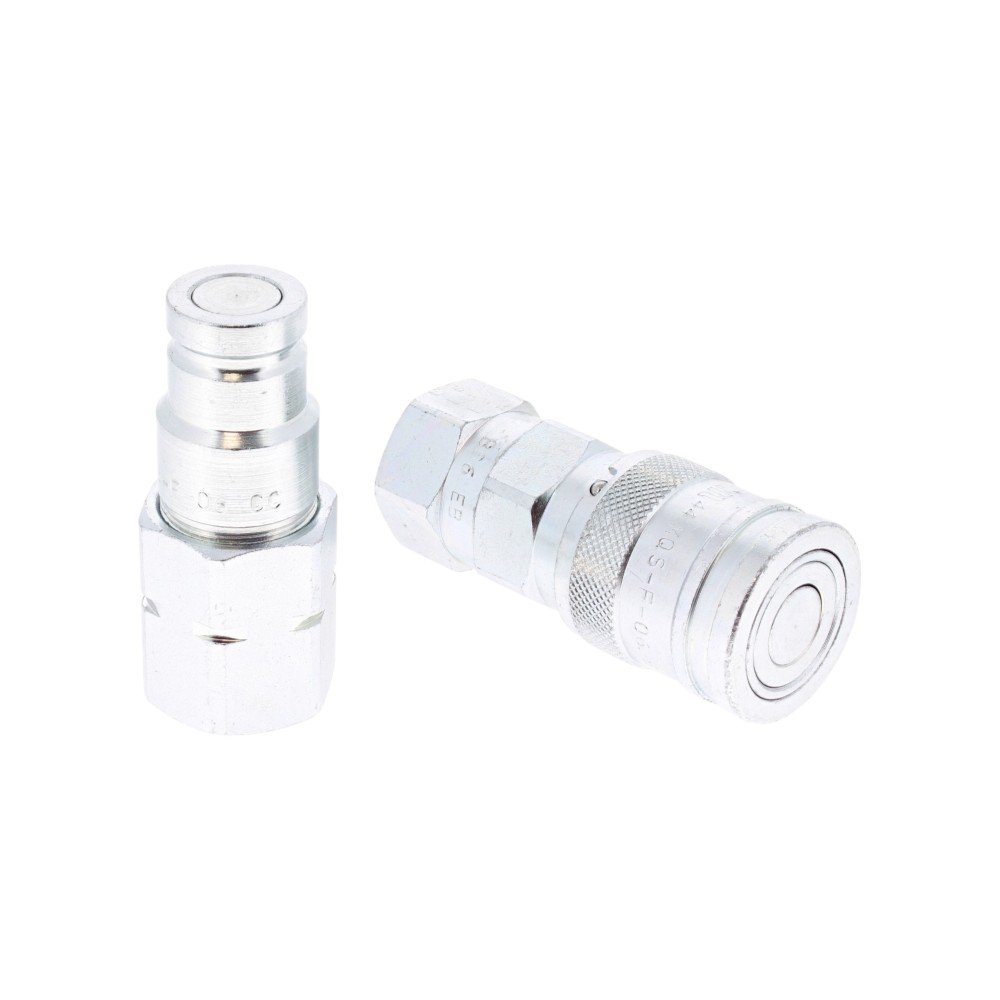

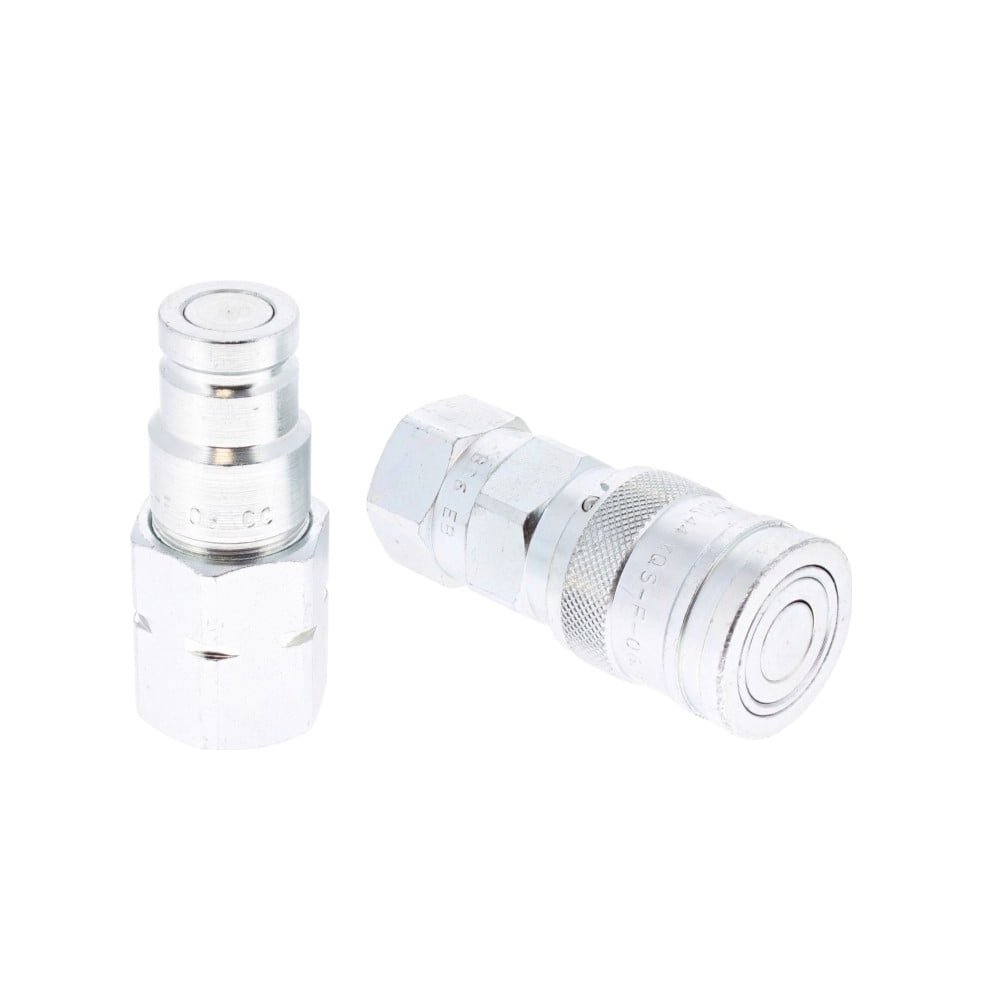

The Manuli M/F 3⁄4" BSP Thread 1⁄2" Body Size Quick Release Coupling Set is a genuine hydraulic connection solution for demanding mobile and industrial systems. Built from robust steel with tempered or carbonitrided wear areas, it delivers fast, secure, and low-spill connections. The set includes matching male and female flat-face halves for straightforward installation and service. The 3⁄4" BSP thread and 1⁄2" body size suit common hose assemblies and manifolds used on excavators, loaders, tractors, agricultural attachments, and industrial plant. Flat-face technology helps control contamination and makes cleaning before connection simple. Compliant with ISO 16028 and HTMA dimensional standards, this Manuli Q.Safe set supports reliable interchange within the same standard and is built for long service life in high-pressure environments.
Key Features:
- Genuine Manuli Q.Safe flat-face M/F coupling set
- 3⁄4" BSP thread with 1⁄2" body size
- Strong steel construction with tempered/carbonitrided areas for wear resistance
- Flat-face design rated up to 350 bar to reduce spillage and air inclusion
- Safety locking mechanism helps prevent accidental disconnection
- High-quality seals: polyurethane and NBR; alternatives available for media/temperature needs
- ISO 16028 and HTMA interchangeability for standard flat-face systems
- Compact, lightweight build for easier handling and hose routing
- Q.Safe multiconnector technology reduces connection time and avoids cross-connection
- Tested to 1,000,000 cycles at 120% of rated pressure for long service life
- Supplied as matched male and female couplings for a complete quick-release connection
Typical Applications:
Hydraulic line connection on construction machinery, agricultural equipment, and industrial plant. Common on excavators, compact loaders, skid-steer attachments, tractor implements, forestry tools, road maintenance gear, and factory machinery where frequent tool changes and contamination control are required under high pressure.
Also known as:
Hydraulic quick disconnect set, flat-face quick coupler, ISO 16028 quick disconnect, BSP hydraulic quick-release, FF hydraulic coupler pair, hydraulic push-to-connect coupling, male/female flat-face hydraulic coupling.
Alternate Part Numbers:
Q04111041A1234
Product Specifications
| L&S Part No. | Q04111041A1234 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Manuli |
| OEM No. | Q04111041A1234 |
| Unit of Sale | 1 |
| Machine Type | Hydraulic Attachments |
| Key Features | - 3⁄4" BSP thread with 1⁄2" body size - Steel construction with tempered/carbonitrided wear areas - Flat-face design rated up to 350 bar - ISO 16028 and HTMA standard compliant - Tested to 1,000,000 cycles at 120% pressure |
