Description
Overview:

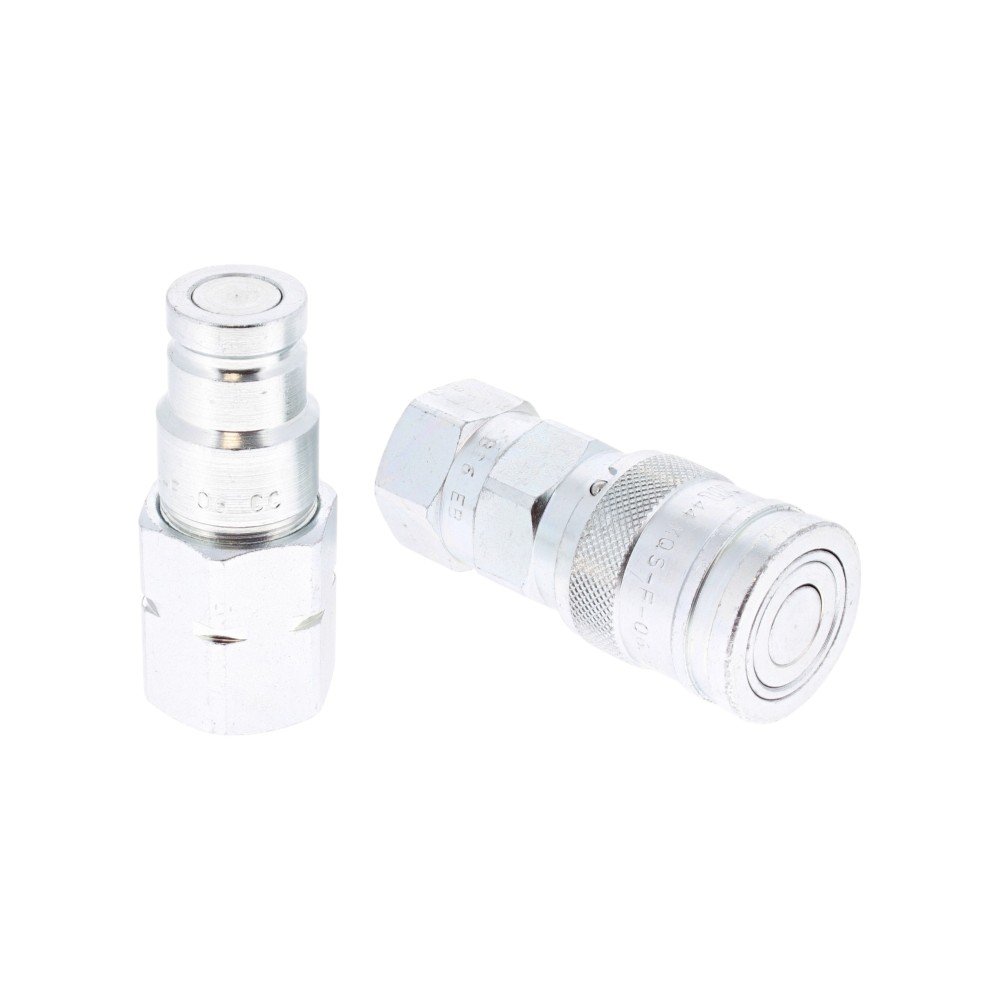

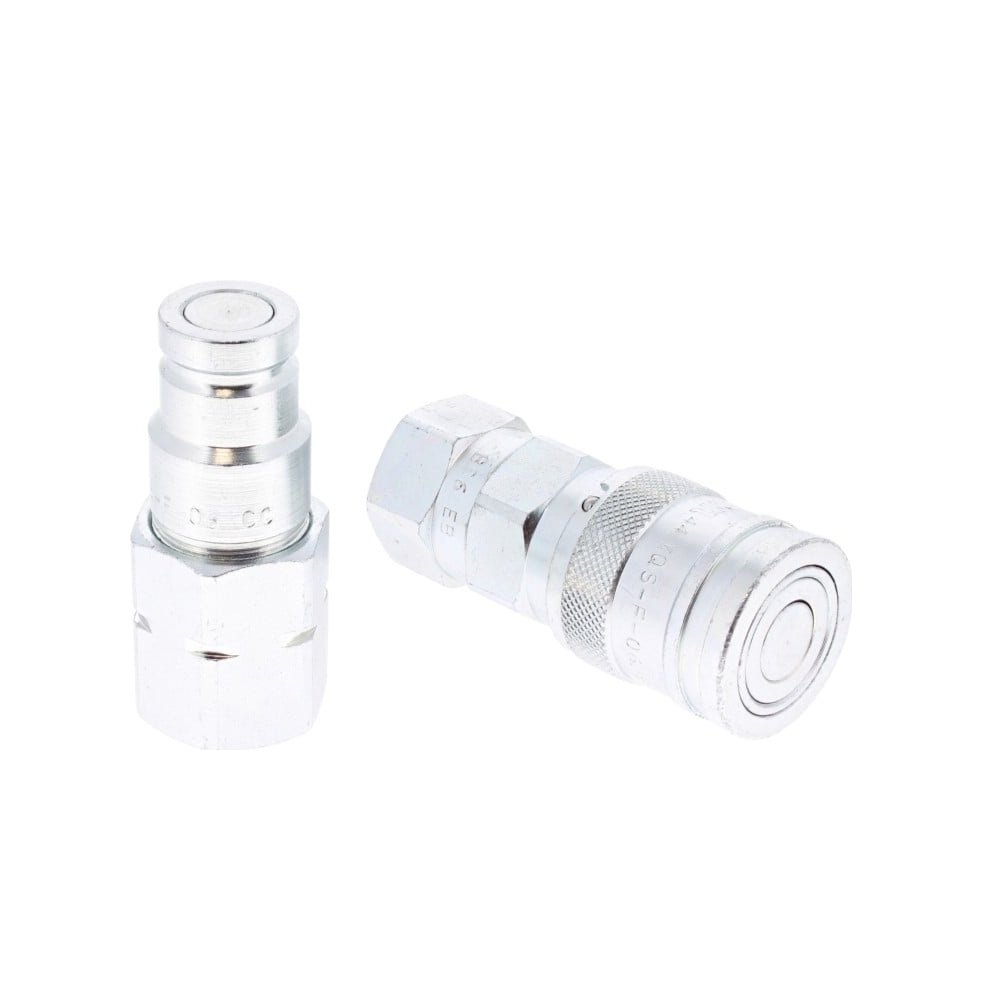

The Manuli M/F 1⁄2" BSP Thread 3/8" Body Size Quick Release Coupling Set is a genuine hydraulic connector pair designed for fast, secure coupling in demanding plant, agricultural and industrial systems. Built from high-quality steel with selectively hardened areas, it includes both male and female flat-face couplers for a complete connection point. The 1⁄2" BSP thread suits standard BSP hydraulic ports and adaptors, while the 3/8" body size matches common auxiliary circuits and tools. Part of the Manuli Q.Safe range, it delivers low-spill, easy-to-clean performance and robust safety features. Rated up to 350 bar, and compliant with ISO 16028/HTMA for 3/8" interchangeability, it offers reliable operation with polyurethane and NBR sealing for long service life. Genuine Part.
Key Features:
- Genuine Manuli Q.Safe flat-face coupling set (male + female) for a complete connection
- 1⁄2" BSP thread with 3/8" body size for common hydraulic circuits
- High pressure capability: up to 350 bar for demanding applications
- Flat-face design reduces fluid loss and contamination; simple to wipe clean before connection
- Safety locking mechanism helps prevent accidental disconnection in service
- Interchangeable to ISO 16028 and HTMA standards for 3/8" size
- Durable steel construction with tempered/carbonitrided areas for wear resistance
- Long service life: tested to 1,000,000 cycles at 120% of rated pressure
- High-quality sealing: polyurethane and NBR seals; alternative materials available on request
- Compact, lightweight form factor to minimise hose strain and improve handling
- Q.Safe technology supports quick, repeatable connection and reduces risk of misconnection
- Straightforward installation to BSP ports and adaptors commonly used on plant and attachments
Typical Applications:
Used on auxiliary hydraulic lines for excavators, loaders, breakers, grapples, augers and other attachments, as well as agricultural tractors, telehandlers, forestry equipment, and industrial machinery. Suitable for workshop test rigs, power packs and service tooling where clean, reliable, low-spill coupling is required under frequent connect/disconnect cycles.
Also known as:
Hydraulic flat-face quick disconnect pair, BSP quick-disconnect couplers, ISO 16028 flat-face couplings, BSPP hydraulic quick connectors, male/female hydraulic coupler kit, flat-face hydraulic connector set, quick-change hydraulic couplings, HTMA-compatible 3/8" body flat-face couplers.
Product Specifications
| L&S Part No. | Q04111041A3812 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Manuli |
| Unit of Sale | 1 |
| Machine Type | Hydraulic Attachments |
| Key Features | - 1⁄2" BSP thread with 3/8" body size for hydraulic circuits - Rated up to 350 bar for demanding applications - Flat-face design reduces fluid loss and contamination - Interchangeable to ISO 16028 and HTMA standards - Durable steel with tempered areas for wear resistance |
