Description
Overview:

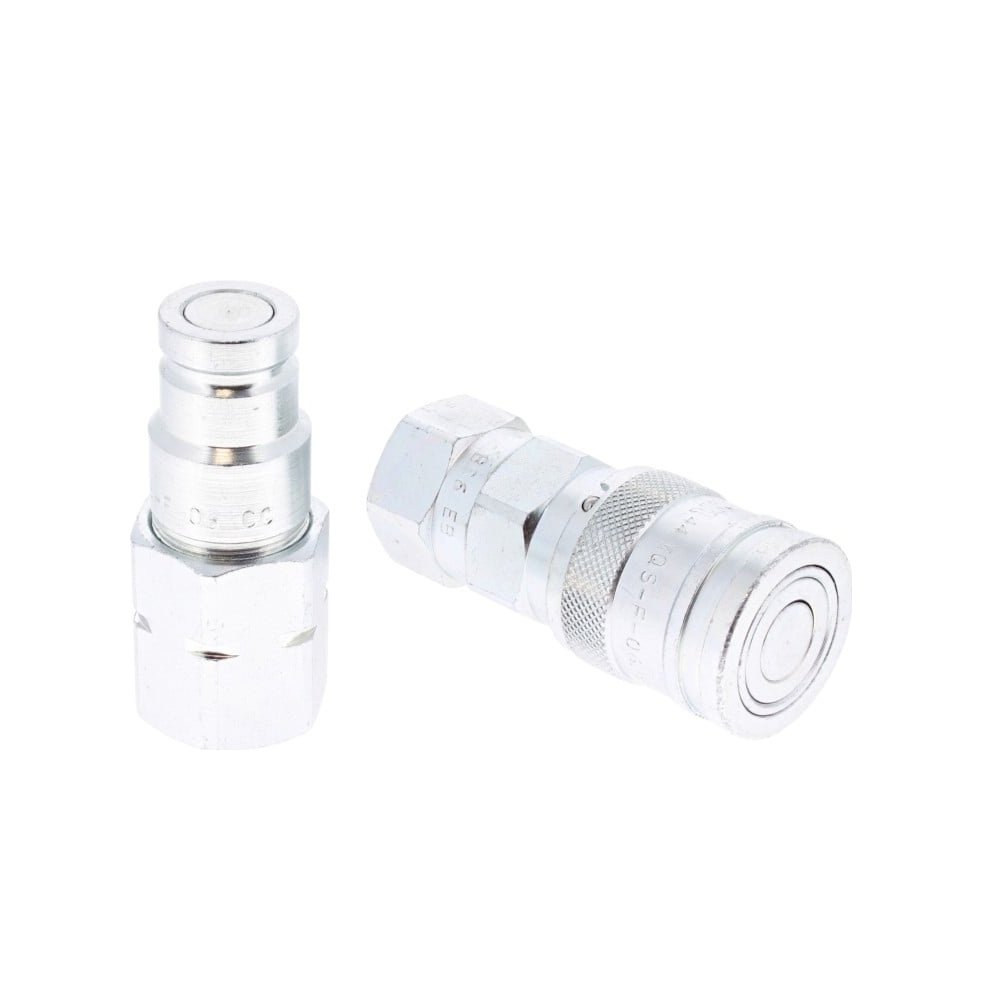

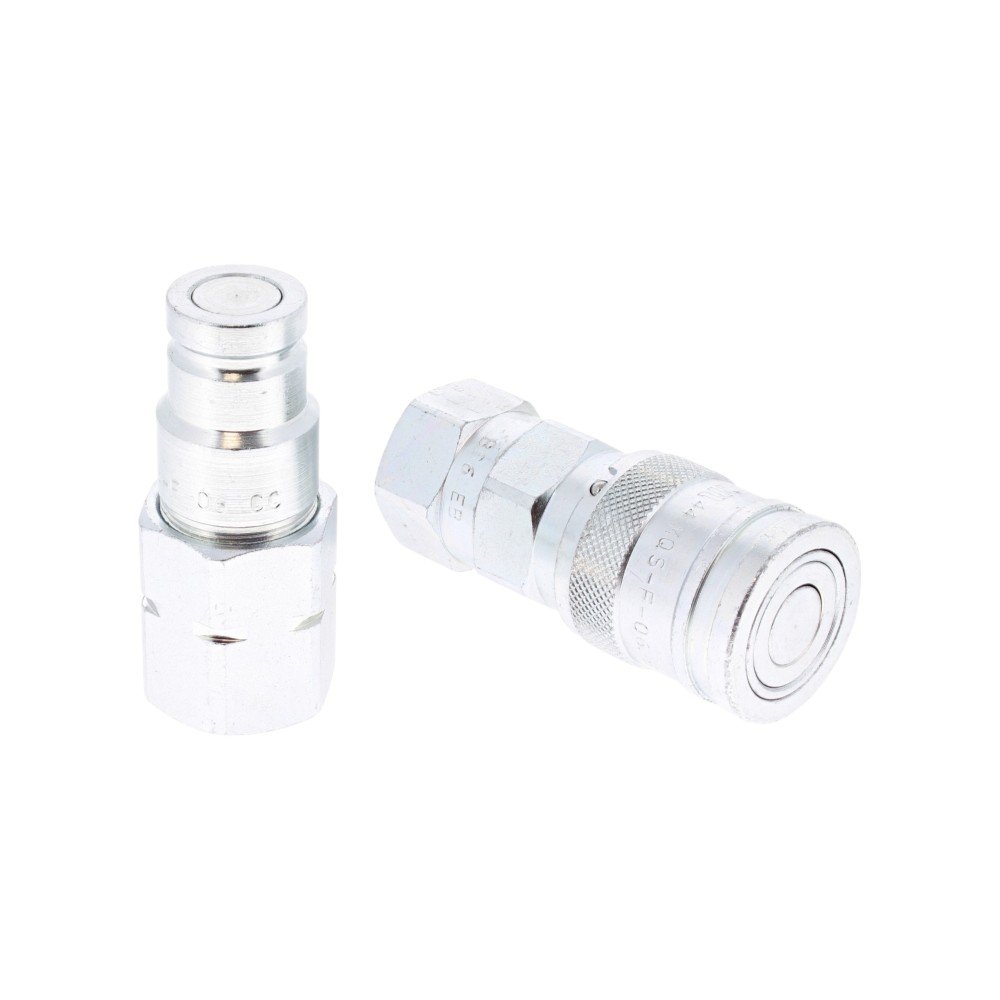

The Manuli M/F 1" BSP Thread, 3/4" Body Size Quick Release Coupling Set is a genuine Manuli hydraulic connection kit for fast, clean and secure hose and tool changes. Built from robust steel with tempered and carbonitrided working areas, it is designed to withstand demanding site conditions. The flat face, leak-minimising design supports high flow and high pressure use, making it suitable for plant, agricultural and industrial hydraulics. Supplied as a complete male and female pair, it fits British Standard Pipe (BSP) threads and integrates into systems using ISO 16028 flat-face couplings. Ideal where reliability, safety locking and easy cleaning are required, this set helps keep excavators, loaders, tractors and industrial machinery running efficiently with minimal downtime.
Key Features:
- Genuine Manuli Q.Safe flat face coupling set (male + female)
- Thread: 1" BSP for straightforward integration with UK hydraulic systems
- Body size: 3/4" for compact, high-performance installations
- Robust steel construction with hardened areas for long service life
- High pressure capability: up to 350 bar for demanding circuits
- Flat face design reduces spillage and contamination; easy to wipe clean
- Safety locking mechanism helps prevent accidental disconnection
- Tested to 1,000,000 cycles at 120% of rated pressure for durability
- Interchangeability: compliant with ISO 16028 and HTMA standards
- Compact and lightweight to minimise added mass on hoses and tools
- Fast, secure connection and disconnection to cut downtime
- Suitable for high flow rates while maintaining low pressure drop
Typical Applications:
Quick coupling of hydraulic attachments and circuits on excavators, skid steers, loaders, tractors, forestry and municipal equipment, industrial presses and test rigs. Ideal for auxiliary lines, attachment changeovers, power packs and where frequent connect/disconnect is required with minimal oil loss and contamination.
Also known as:
Hydraulic quick disconnect, flat face quick coupler, ISO 16028 coupler, hydraulic quick release connector, BSP flat face coupling, hydraulic push-to-connect coupler, M/F flat-face hydraulic coupling set.
Alternate Part Numbers:
Q04111041A341
Product Specifications
| L&S Part No. | Q04111041A341 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Machine Type | Excavators, Loaders, Tractors, Hydraulic Attachments |
| Key Features | - 1" BSP thread for UK hydraulic systems - 3/4" body size for compact installations - Steel construction with hardened areas - High pressure capability up to 350 bar - ISO 16028 compliant for interchangeability |
