Description
Overview:

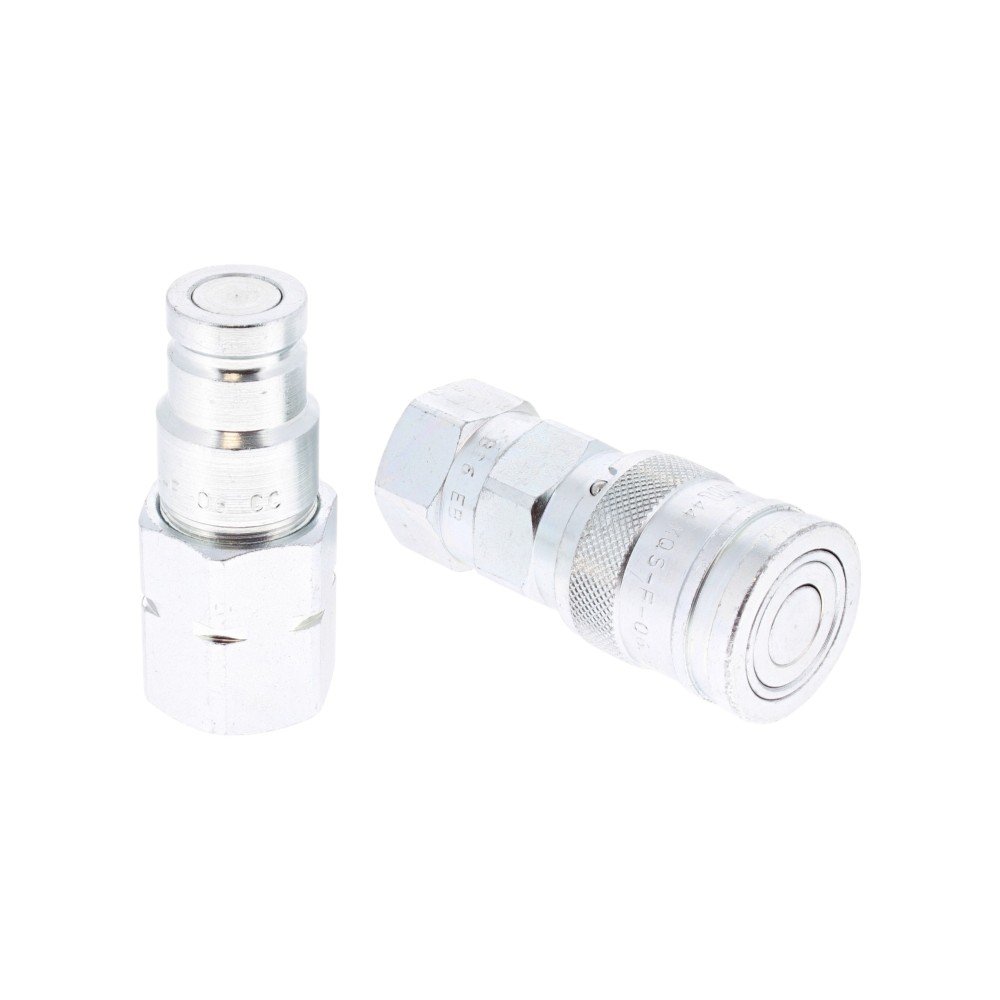

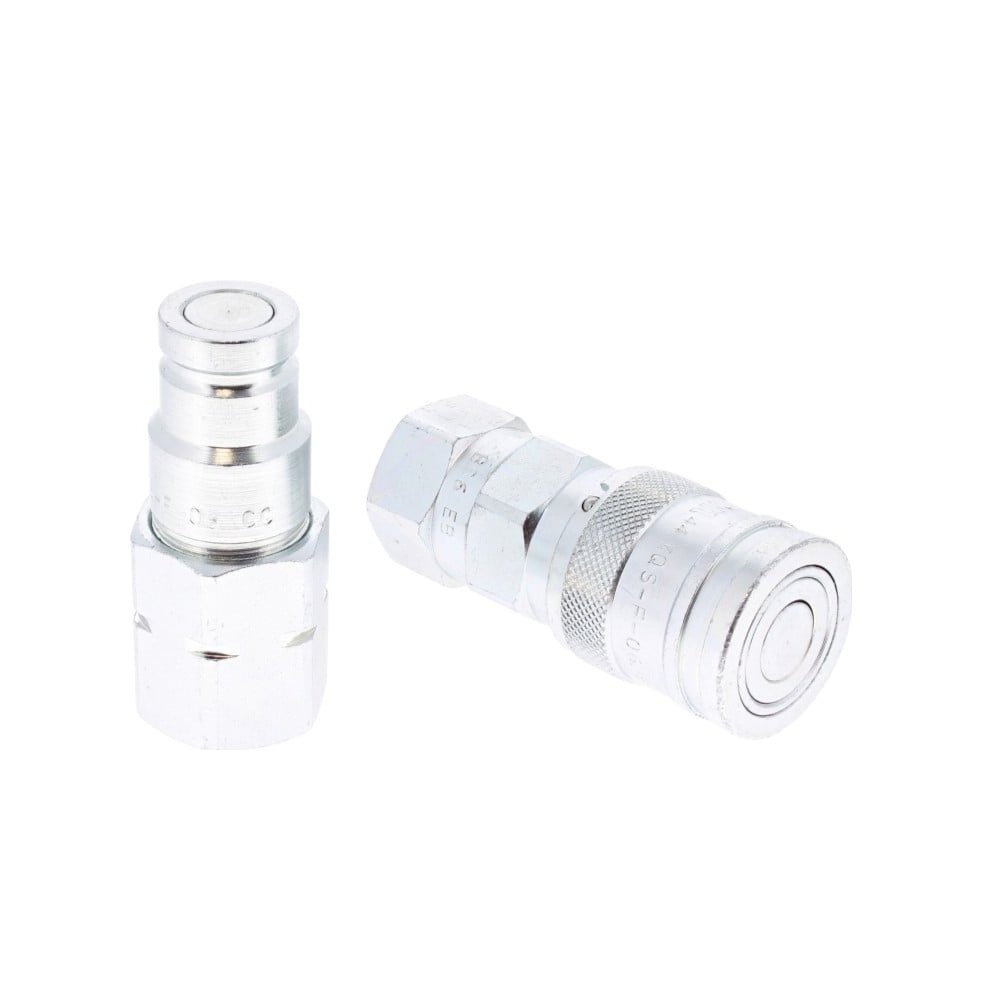

The Manuli M/F 1" BSP Thread, 1" Body Size Quick Release Coupling Set is a genuine Manuli hydraulic connection solution for high-pressure circuits. Supplied as a matched pair, the set includes both male and female couplings for a complete, secure link between hoses and tools. Manufactured from high-strength steel with tempered or carbonitrided wear areas, it is built for demanding use on heavy plant, construction equipment, agricultural machinery, and industrial systems. The flat-face design limits oil loss and makes cleaning straightforward, helping to protect sensitive components from contamination. Rated for working pressures up to 350 bar, it features a positive safety locking mechanism to prevent accidental disconnection. Operating range is -30°C to +110°C (-22°F to +230°F). Compliant with ISO 16028 and HTMA standards. Genuine Part.
Key Features:
- Genuine Manuli Q.Safe coupling set (male and female) for a complete connection
- 1" BSP thread and 1" body size for common UK hydraulic setups
- High-pressure capability up to 350 bar with minimal leakage
- Flat-face valves reduce spillage and help prevent contamination; easy to wipe clean
- Safety locking sleeve to help prevent accidental uncoupling in service
- Long service life: endurance-tested for 1,000,000 cycles at 120% of rated pressure
- Durable steel construction with hardened areas for wear and impact resistance
- Compact, lightweight form to minimise added mass on hoses and attachments
- ISO 16028 and HTMA compliant for proven performance and compatibility
- Fast connection/disconnection to reduce downtime during tool or attachment changes
Typical Applications:
Used on auxiliary hydraulic lines for excavators, loaders, telehandlers, tractors, and skid-steer attachments where quick tool changes are needed. Suitable for breakers, grapples, augers, sweepers, mowers, forestry heads, and power packs. Also applied in industrial hydraulic systems, test rigs, maintenance workshops, and plant hire fleets where leak control, cleanliness, and reliable high-pressure performance are priorities.
Also known as:
Hydraulic quick disconnect coupler set, ISO 16028 quick disconnect, BSP hydraulic QD coupler, BSPP hydraulic connector, push-to-connect hydraulic coupler, quick-connect hose coupler, hydraulic line connector set, leak-reducing QD coupler, heavy-duty hydraulic quick disconnect.
Product Specifications
| L&S Part No. | Q04111041A11 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Machine Type | Excavators, Tractors, Loaders, Telehandlers |
| Key Features | - 1" BSP thread and body size for UK hydraulic setups - Rated for pressures up to 350 bar - Flat-face design reduces spillage and contamination - Safety locking sleeve prevents accidental disconnection - ISO 16028 and HTMA compliant for compatibility |
