Layflat Delivery Hose

Layflat delivery hose is used on the outlet side of a pump to discharge water and other compatible fluids over distance. Its flexible construction allows it to lie flat when not under pressure, making the hose easier to transport, deploy and store between jobs.

Choose from layflat water hose in a range of internal diameters, coil lengths and pressure ratings for drainage, irrigation, dewatering, construction and general water-transfer applications. Check the pump outlet size, required working pressure and connection type before ordering.

All products

Choose the layflat hose pressure rating first, then compare the internal diameter and available hose length.

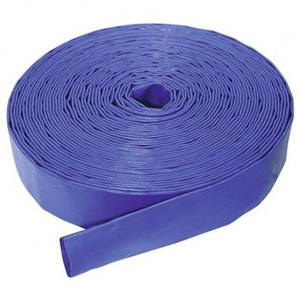

Blue Layflat Hose

General-purpose delivery hose in common pump sizes and roll lengths.
Max working pressure: 4 bar

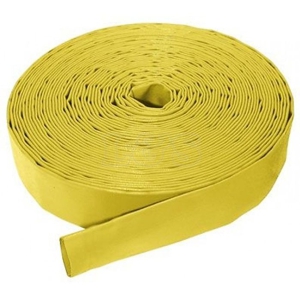

Yellow Layflat Hose

Higher-pressure delivery hose for more demanding pumping applications.
Max working pressure: 6.0 bar

Length	Suggested Clip	Stock	Price	PartQty
1" Layflat Hose25mm internal diameter \| 42mm flat width
10m	JC 125–35mm	Checking...	Checking...	124 0085
50m	JC 125–35mm	Checking...	Checking...	124 0086
100m	JC 125–35mm	Checking...	Checking...	124 0087
1.1/4" Layflat Hose32mm internal diameter \| 52mm flat width
10m	JC 1X30–40mm	Checking...	Checking...	124 0088
50m	JC 1X30–40mm	Checking...	Checking...	124 0089
100m	JC 1X30–40mm	Checking...	Checking...	124 0090
1.1/2" Layflat Hose38mm internal diameter \| 62mm flat width
10m	JC 2A35–50mm	Checking...	Checking...	124 0091
50m	JC 2A35–50mm	Checking...	Checking...	124 0092
100m	JC 2A35–50mm	Checking...	Checking...	124 0093
2" Layflat Hose50mm internal diameter \| 82mm flat width
10m	JC 2X45–60mm	Checking...	Checking...	124 0094
25m	JC 2X45–60mm	Checking...	Checking...	124 0173
50m	JC 2X45–60mm	Checking...	Checking...	124 0095
100m	JC 2X45–60mm	Checking...	Checking...	124 0096
2.1/2" Layflat Hose63mm internal diameter \| 102mm flat width
5m	JC 3X60–80mm	Checking...	Checking...	124 0303
25m	JC 3X60–80mm	Checking...	Checking...	124 0304
50m	JC 3X60–80mm	Checking...	Checking...	124 0305
100m	JC 3X60–80mm	Checking...	Checking...	124 0378
3" Layflat Hose75mm internal diameter \| 122mm flat width
10m	JC 470–90mm	Checking...	Checking...	124 0097
50m	JC 470–90mm	Checking...	Checking...	124 0098
100m	JC 470–90mm	Checking...	Checking...	124 0099
4" Layflat Hose100mm internal diameter \| 162mm flat width
10m	JC 590–120mm	Checking...	Checking...	124 0100
50m	JC 590–120mm	Checking...	Checking...	124 0101
100m	JC 590–120mm	Checking...	Checking...	124 0102

Length	Suggested Clip	Stock	Price	PartQty
1" Layflat Hose25mm internal diameter \| 42mm flat width
10m	JC 125–35mm	Checking...	Checking...	124 0103
50m	JC 125–35mm	Checking...	Checking...	124 0104
100m	JC 125–35mm	Checking...	Checking...	124 0105
2" Layflat Hose50mm internal diameter \| 82mm flat width
10m	JC 2X45–60mm	Checking...	Checking...	124 0106
50m	JC 2X45–60mm	Checking...	Checking...	124 0107
100m	JC 2X45–60mm	Checking...	Checking...	124 0108
2.1/2" Layflat Hose63mm internal diameter \| 102mm flat width
10m	JC 3X60–80mm	Checking...	Checking...	831 2121
50m	JC 3X60–80mm	Checking...	Checking...	831 2125
100m	JC 3X60–80mm	Checking...	Checking...	831 2120
3" Layflat Hose75mm internal diameter \| 122mm flat width
10m	JC 470–90mm	Checking...	Checking...	124 0109
50m	JC 470–90mm	Checking...	Checking...	124 0110
100m	JC 470–90mm	Checking...	Checking...	124 0111
4" Layflat Hose100mm internal diameter \| 162mm flat width
10m	JC 590–120mm	Checking...	Checking...	124 0112
50m	JC 590–120mm	Checking...	Checking...	124 0113
100m	JC 590–120mm	Checking...	Checking...	124 0114

Blue Layflat Hose
4 bar max pressure

Length	Suggested Clip	Stock	Price	PartQty
1" Layflat Hose25mm internal diameter \| 42mm flat width
10m	JC 125–35mm	Checking...	Checking...	124 0085
50m	JC 125–35mm	Checking...	Checking...	124 0086
100m	JC 125–35mm	Checking...	Checking...	124 0087
1.1/4" Layflat Hose32mm internal diameter \| 52mm flat width
10m	JC 1X30–40mm	Checking...	Checking...	124 0088
50m	JC 1X30–40mm	Checking...	Checking...	124 0089
100m	JC 1X30–40mm	Checking...	Checking...	124 0090
1.1/2" Layflat Hose38mm internal diameter \| 62mm flat width
10m	JC 2A35–50mm	Checking...	Checking...	124 0091
50m	JC 2A35–50mm	Checking...	Checking...	124 0092
100m	JC 2A35–50mm	Checking...	Checking...	124 0093
2" Layflat Hose50mm internal diameter \| 82mm flat width
10m	JC 2X45–60mm	Checking...	Checking...	124 0094
25m	JC 2X45–60mm	Checking...	Checking...	124 0173
50m	JC 2X45–60mm	Checking...	Checking...	124 0095
100m	JC 2X45–60mm	Checking...	Checking...	124 0096
2.1/2" Layflat Hose63mm internal diameter \| 102mm flat width
5m	JC 3X60–80mm	Checking...	Checking...	124 0303
25m	JC 3X60–80mm	Checking...	Checking...	124 0304
50m	JC 3X60–80mm	Checking...	Checking...	124 0305
100m	JC 3X60–80mm	Checking...	Checking...	124 0378
3" Layflat Hose75mm internal diameter \| 122mm flat width
10m	JC 470–90mm	Checking...	Checking...	124 0097
50m	JC 470–90mm	Checking...	Checking...	124 0098
100m	JC 470–90mm	Checking...	Checking...	124 0099
4" Layflat Hose100mm internal diameter \| 162mm flat width
10m	JC 590–120mm	Checking...	Checking...	124 0100
50m	JC 590–120mm	Checking...	Checking...	124 0101
100m	JC 590–120mm	Checking...	Checking...	124 0102

Yellow Layflat Hose
6.0 bar max pressure

Length	Suggested Clip	Stock	Price	PartQty
1" Layflat Hose25mm internal diameter \| 42mm flat width
10m	JC 125–35mm	Checking...	Checking...	124 0103
50m	JC 125–35mm	Checking...	Checking...	124 0104
100m	JC 125–35mm	Checking...	Checking...	124 0105
2" Layflat Hose50mm internal diameter \| 82mm flat width
10m	JC 2X45–60mm	Checking...	Checking...	124 0106
50m	JC 2X45–60mm	Checking...	Checking...	124 0107
100m	JC 2X45–60mm	Checking...	Checking...	124 0108
2.1/2" Layflat Hose63mm internal diameter \| 102mm flat width
10m	JC 3X60–80mm	Checking...	Checking...	831 2121
50m	JC 3X60–80mm	Checking...	Checking...	831 2125
100m	JC 3X60–80mm	Checking...	Checking...	831 2120
3" Layflat Hose75mm internal diameter \| 122mm flat width
10m	JC 470–90mm	Checking...	Checking...	124 0109
50m	JC 470–90mm	Checking...	Checking...	124 0110
100m	JC 470–90mm	Checking...	Checking...	124 0111
4" Layflat Hose100mm internal diameter \| 162mm flat width
10m	JC 590–120mm	Checking...	Checking...	124 0112
50m	JC 590–120mm	Checking...	Checking...	124 0113
100m	JC 590–120mm	Checking...	Checking...	124 0114

1" Blue Layflat Hose

Starting at £10.80 £9.00

VIEW
1.1/4" Blue Layflat Hose

Starting at £17.58 £14.65

VIEW
1.1/2" Blue Layflat Hose

Starting at £20.36 £16.97

VIEW
2" Blue Layflat Hose

Starting at £15.00 £12.50

VIEW
2.1/2" Blue Layflat Hose

Starting at £14.54 £12.12

VIEW
3" Blue Layflat Hose

Starting at £20.90 £17.42

VIEW
4" Blue Layflat Hose

Starting at £34.69 £28.91

VIEW
1" Yellow Layflat Hose

Starting at £16.37 £13.64

VIEW
2" Yellow Layflat Hose

Starting at £23.03 £19.19

VIEW
2.1/2" Yellow Layflat Hose

Starting at £30.10 £25.08

VIEW
3" Yellow Layflat Hose

Starting at £26.66 £22.22

VIEW
4" Yellow Layflat Hose

Starting at £42.42 £35.35

VIEW

Related Categories

Layflat delivery hose is used on the outlet side of a pump to discharge water and other compatible fluids over distance. Its flexible construction allows the hose to lie flat when not under pressure, making it easier to store, transport and deploy on site.

Our range includes light-duty, medium-duty and heavy-duty layflat hose in a choice of internal diameters and coil lengths. It is suitable for water transfer, drainage, irrigation, dewatering, construction and general pumping applications.

When choosing layflat hose, check the required internal diameter, working pressure, burst pressure, fluid compatibility and total length of the hose run. The hose size should match the pump outlet and any connected couplings or fittings.

Use correctly sized hose tails, couplings and hose clips to create a secure connection. Avoid sharp bends, twisting and dragging the hose across rough surfaces, as this can restrict flow and reduce the working life of the hose.
