Description

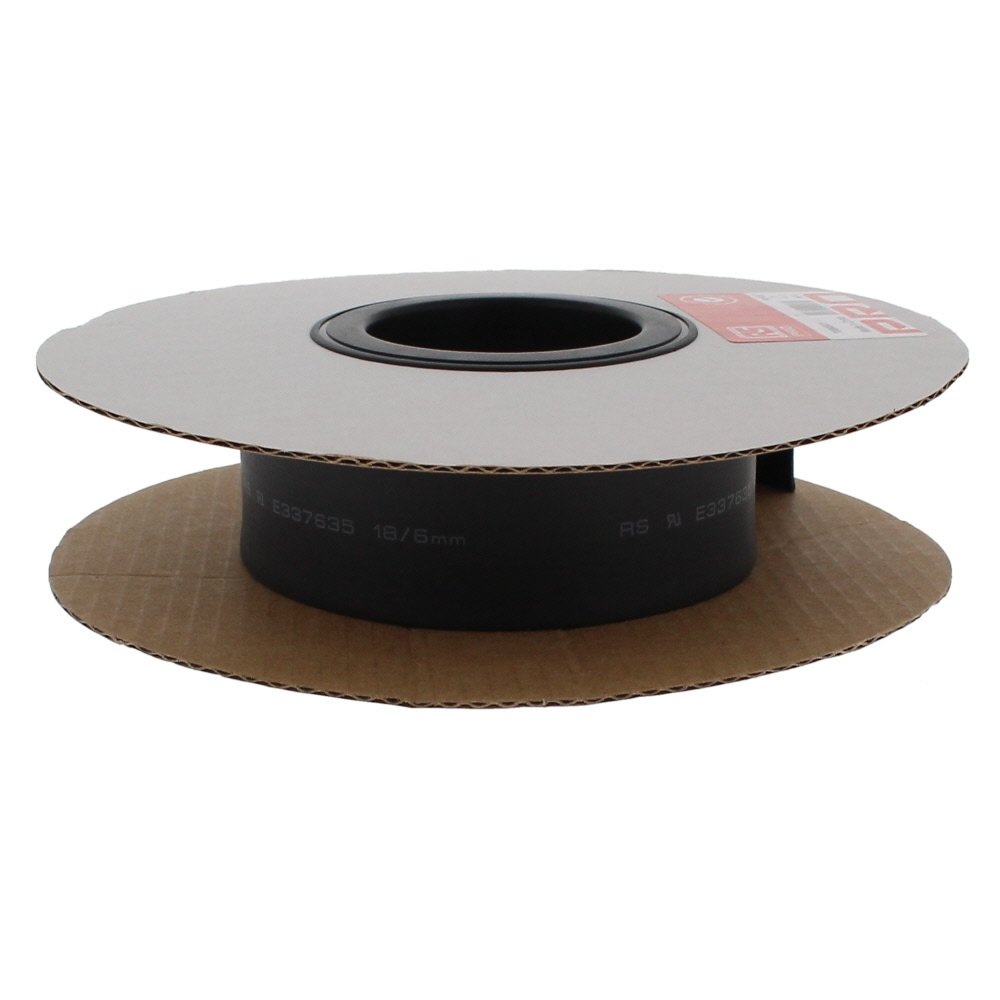

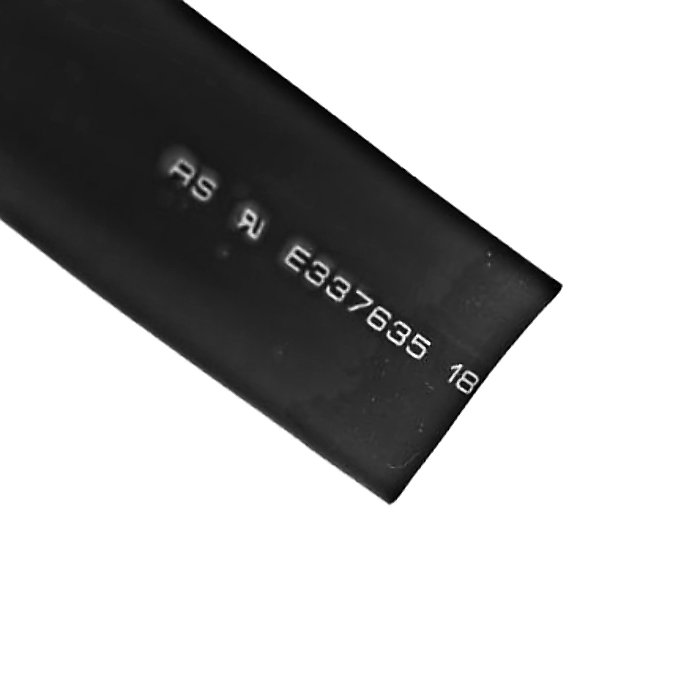

Genuine RS Pro Polyolefin Heat Shrink Tubing 3:1 (Reels)
by RS Components.
The reels of RS Pro polyolefin heat shrink tubing are flexible, tough and has good resistance to common fluids and solvents. The flame retardant 3:1 shrink ratio means that the tubing shrinks to a third of its original size.
Features and Benefits
• Low shrink temperature • Excellent physical and electrical performance
• Good chemical and solvent resistance
• High dielectric strength
• Many colours and sleeve diameters available
• UL standard meaning that product samples have passed the safety requirements set by the safety and certification company, Underwriters Laboratories
Typical Applications
Electrical insulation Strain relief
Identifying wires, cables, pipes or electronic components
Placing over broom handles
How to use heat shrink tubing
1. Measure the diameter of your wire or cable. 2. Choose a piece of heat shrink that is large enough to slide onto the wire or cable but will give a snug fit once it has been heated.
3. Measure the length of tubing that you need making sure that you give yourself enough to cover the area after heating. Cut to required length.
4. Slide the tubing over the product you want to cover or protect.
5. Use a heat gun to heat the tubing. Continue to heat until it is tight around the wire or other product.
Approvals
UL224 135°C File E337635, CSA File LR51368-2, CSA 400-1-9
Approvals
UL224 125 C File E35586; CSA File LR51368-2; CSA 400-1-9
Sleeve Diameter: 18mm
Shrunk Diameter: 6mm
Shrink Ratio: 3:1
Sleeve Length: 3 m
Material: Polyolefin
Flame Retardant
Standards Met: UL
by RS Components.
The reels of RS Pro polyolefin heat shrink tubing are flexible, tough and has good resistance to common fluids and solvents. The flame retardant 3:1 shrink ratio means that the tubing shrinks to a third of its original size.
Features and Benefits
• Low shrink temperature • Excellent physical and electrical performance
• Good chemical and solvent resistance
• High dielectric strength
• Many colours and sleeve diameters available
• UL standard meaning that product samples have passed the safety requirements set by the safety and certification company, Underwriters Laboratories
Typical Applications
Electrical insulation Strain relief
Identifying wires, cables, pipes or electronic components
Placing over broom handles
How to use heat shrink tubing
1. Measure the diameter of your wire or cable. 2. Choose a piece of heat shrink that is large enough to slide onto the wire or cable but will give a snug fit once it has been heated.
3. Measure the length of tubing that you need making sure that you give yourself enough to cover the area after heating. Cut to required length.
4. Slide the tubing over the product you want to cover or protect.
5. Use a heat gun to heat the tubing. Continue to heat until it is tight around the wire or other product.
Approvals
UL224 135°C File E337635, CSA File LR51368-2, CSA 400-1-9
Approvals
UL224 125 C File E35586; CSA File LR51368-2; CSA 400-1-9
Sleeve Diameter: 18mm
Shrunk Diameter: 6mm
Shrink Ratio: 3:1
Sleeve Length: 3 m
Material: Polyolefin
Flame Retardant
Standards Met: UL
Product Specifications
| L&S Part No. | 231 541 |
|---|---|
| Manufacturer | RS Components |
| OEM No. | 231 541 |
| Unit of Sale | 1 |
