Description

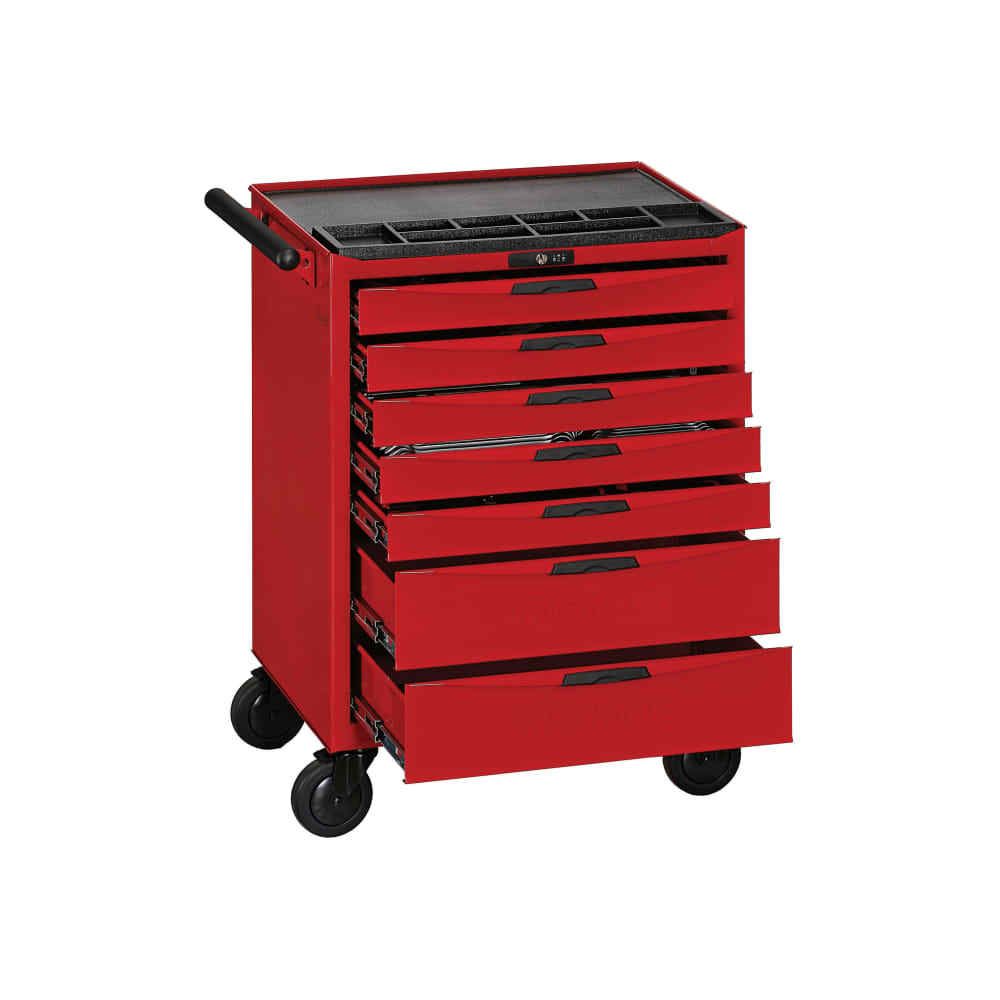

The Teng Tools EVA Tool Kit is supplied in the Teng Tools TCW807N 7 drawer roller cabinet with ball bearing slides. All of the tools are laid out in 2-colour pre-cut EVA foam, which is etched with the size or description of the tool. The top layer of the EVA block is black and the bottom layer is red, which clearly shows if any tools are not in their correct place. Comes with the following:
TTEMB11 Pliers Set, 11 Piece:
1 x Heavy-Duty Side Cutters 8in; 1 x High Leverage Combination Pliers 7in; 1 x Long Nose Pliers 8in; 1 x Water Pump Pliers 10in; 4 x Circlip Pliers 7in: Inner Straight, Inner Bent, Outer Straight, Outer Bent; 1 x Long Nose Power Grip Pliers 6in; 2 x Curved Jaw Power Grip Pliers 4in & 10in
TTEMD98N Screwdriver Set, 98 Piece:
Screwdrivers: 2 x TORX: TX8x75 & TX9x75mm and 5 x TPX: TPX10x100, TPX15x100, TPX20x100, TPX25x100 & TPX30x100mm;
Power Thru Screwdrivers: 3 x Slotted: 6.5x100, 8x150 & 10x200mm and 2 x Phillips: PH2x100 & PH3x150mm;
VDE Screwdrivers: 3 x Slotted: 2.5x75, 4x100 & 5.5x125mm, 3 x Phillips: PH0x60, PH1x8 & PH2x100mm and 1 x Pozi: PZ2x100mm;
Mini Screwdrivers: 3 x Slotted: 2.0x40, 2.5x40 & 3.0x40mm, 3 x Phillips: PH00x40, PH0x40 & PH1x40mm and 6 x TORX: TX6, TX7, TX8, TX9, TX10 & TX15.
25mm Screwdriver Bits: 9 x Slotted: 0.6x3.5, 0.6x4.5, 0.8x4.0(x2), 0.8x5.5, 1.0x5.5(x2), 1.2x6.5 & 1.6x8.0mm; 9 x Phillips: PH1(x3), PH2(x3) & PH3(x3); 10 x Pozi: PZ1(x3), PZ2(x3) & PZ3(x4); 14 x TORX: TX6, TX7, TX8, TX10, TX15, TX20(x3), TX25(x3), TX27, TX30 & TX40; 9 x TPX: TPX10, TPX15, TPX20(x2), TPX25(x2), TPX27, TPX30 & TPX40; 6 x Hex: 2, 3, 4, 5, 6 & 8mm; 3 x GR: PH2(x3) and 3 x Robertson: 1, 2 & 3;
1 x Ratcheting Bits Driver with 6 assorted bits; 1 x Magnetiser/Demagnetiser; 1 x 1/4in M:1/4in Hexagon Adaptor; 1 x Coupler Adaptor
TTEPS12 General Tools Set, 12 Piece:
1 x Utility Knife with Spare Blades; 1 x Hack Saw 12in; 1 x Engineers Hammer 800g; 1 x Soft Face Hammer; 2 x Cold Chisels: 150x18 & 200x25mm; 1 x Centre Punch 150x5mm; 1 x Parallel Pin Punches Set: 3, 4, 5, 6, 7 & 8mm; 2 x Adjustable Wrenches: 6 & 10in; 1 x 3m Measuring Tape; 1 x Steel Rule 200mm
TTESK85 Hex Sockets & Bits Set, 85 Piece:
1/4in Sockets: 3 x Slotted: 4, 5.5 & 7mm, 4 x Phillips: PH0, PH1, PH2 & PH3, 3 x Pozi: PZ1, PZ2 & PZ3, 7 x TORX: TX10, TX15, TX20, TX25, TX27, TX30 & TX40 and 5 x TX-E: E4, E5, E6, E7 & E8;
3/8in Sockets: 9 x TORX: TX10, TX15, TX20, TX25, TX27, TX30, TX40, TX45 & TX50, 5 x TX-E: E10, E12, E14, E16 & E18, 9 x TPX: TPX10, TPX15, TPX20, TPX25, TPX27, TPX30, TPX40, TPX45 & TPX50 and 9 x Hex: 3, 4, 5, 5.5, 6, 7, 8, 10 & 12mm;
1/2in Sockets: 9 x TORX: TX20, TX25, TX27, TX30, TX40, TX45, TX50, TX55 & TX60, 6 x Hex: 5 , 6, 7, 8, 10 & 12mm, 8 x Ribe: 4, 5, 6, 8, 10, 11, 12 & 13 and 7 x XZN: 5, 6, 8, 10, 12, 14 & 16;
1 x 3/8in Extension Bar
TTESK77 1/4in, 3/8in & 1/2in Drive Socket Set, 77 Piece:
11 x Regular 1/4in Drive 6-Point Sockets: 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12 & 13mm;
5 x Deep 1/4in Drive 6-Point Sockets 7, 8, 10, 12 & 13mm;
13 x Regular 3/8in Drive 6-Point Sockets: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 & 22mm;
12 x Regular 1/2in Drive 6-Point Sockets: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 22 & 24mm;
8 x Regular 1/2in Drive 6-Point Impact Sockets: 13, 15, 16, 17, 18, 19, 22 & 24mm;
8 x Deep 1/2in Drive 6-Point Impact Sockets: 13, 15, 16, 17, 18, 19, 22 & 24mm;
1/4in Accessories: 1 x FRP Ratchet, 1 x Spinner Handle 6in, 2 x Extension Bars: 6 & 12in, 1 x Universal Joint, 1 x T-Bar, 1 x T-Bar Handle Adaptor;
3/8in Accessories: 1 x FRP Ratchet, 1 x Wobble Extension Bar 3in, 1 x Extension Bar 6in, 1 x Universal Joint, 1 x 3/8in F:1/4in M Adaptor, 1 x 3/8in F:1/2in M Adaptor, 1 x Rotating Spinner Handle;
1/2in Accessories: 1 x FRP Ratchet, 1 x Wobble Extension Bar 6in, 1 x Extension Bar 10in, 1 x Universal Joint, 1 x 1/2in F:3/8in M Adaptor
TTEX17 Hex Key, Inspection & Torque Wrench Kit, 17 Piece:
1 x 1/2in Torque Wrench;
7 x T-Handle Hex Keys: 2.5, 3, 4, 5, 6, 7 & 8mm;
1 x Mixed Fold-Up Key Set: Hex: 4, 5 & 6mm, TORX: TX25 & TX30, Slotted: 5.5mm & Phillips: PH1 & PZ2;
x Set of Ball Point Hex Keys: 1.5, 2, 2.5, 3, 4, 5, 6, 8 & 10mm;
1 x Ball Point Hex Key: 7mm;
1 x Set of 9 TORX Keys: TX8, TX9, TX10, TX15, TX20, TX25, TX27, TX30 & TX40;
1 x Magnetic Pick Up; 1 x Magnifying Glass; 1 x Extendable Mirror 57cm; 1 x Pocket LED Torch Hook; 1 x Pick-Up Tool with 4 Heads: Awl, Hook, 45° & 90°
TTEX32 Spanner & File Set, 32 Piece:
19 x Combination Spanners: 8-32mm; 8 x Ratcheting Combination Spanners 8-19mm; 5 x 250mm Files: Flat, Round, Half Round, Three Square & Hand Type Flat
TTEMB11 Pliers Set, 11 Piece:
1 x Heavy-Duty Side Cutters 8in; 1 x High Leverage Combination Pliers 7in; 1 x Long Nose Pliers 8in; 1 x Water Pump Pliers 10in; 4 x Circlip Pliers 7in: Inner Straight, Inner Bent, Outer Straight, Outer Bent; 1 x Long Nose Power Grip Pliers 6in; 2 x Curved Jaw Power Grip Pliers 4in & 10in
TTEMD98N Screwdriver Set, 98 Piece:
Screwdrivers: 2 x TORX: TX8x75 & TX9x75mm and 5 x TPX: TPX10x100, TPX15x100, TPX20x100, TPX25x100 & TPX30x100mm;
Power Thru Screwdrivers: 3 x Slotted: 6.5x100, 8x150 & 10x200mm and 2 x Phillips: PH2x100 & PH3x150mm;
VDE Screwdrivers: 3 x Slotted: 2.5x75, 4x100 & 5.5x125mm, 3 x Phillips: PH0x60, PH1x8 & PH2x100mm and 1 x Pozi: PZ2x100mm;
Mini Screwdrivers: 3 x Slotted: 2.0x40, 2.5x40 & 3.0x40mm, 3 x Phillips: PH00x40, PH0x40 & PH1x40mm and 6 x TORX: TX6, TX7, TX8, TX9, TX10 & TX15.
25mm Screwdriver Bits: 9 x Slotted: 0.6x3.5, 0.6x4.5, 0.8x4.0(x2), 0.8x5.5, 1.0x5.5(x2), 1.2x6.5 & 1.6x8.0mm; 9 x Phillips: PH1(x3), PH2(x3) & PH3(x3); 10 x Pozi: PZ1(x3), PZ2(x3) & PZ3(x4); 14 x TORX: TX6, TX7, TX8, TX10, TX15, TX20(x3), TX25(x3), TX27, TX30 & TX40; 9 x TPX: TPX10, TPX15, TPX20(x2), TPX25(x2), TPX27, TPX30 & TPX40; 6 x Hex: 2, 3, 4, 5, 6 & 8mm; 3 x GR: PH2(x3) and 3 x Robertson: 1, 2 & 3;
1 x Ratcheting Bits Driver with 6 assorted bits; 1 x Magnetiser/Demagnetiser; 1 x 1/4in M:1/4in Hexagon Adaptor; 1 x Coupler Adaptor
TTEPS12 General Tools Set, 12 Piece:
1 x Utility Knife with Spare Blades; 1 x Hack Saw 12in; 1 x Engineers Hammer 800g; 1 x Soft Face Hammer; 2 x Cold Chisels: 150x18 & 200x25mm; 1 x Centre Punch 150x5mm; 1 x Parallel Pin Punches Set: 3, 4, 5, 6, 7 & 8mm; 2 x Adjustable Wrenches: 6 & 10in; 1 x 3m Measuring Tape; 1 x Steel Rule 200mm
TTESK85 Hex Sockets & Bits Set, 85 Piece:
1/4in Sockets: 3 x Slotted: 4, 5.5 & 7mm, 4 x Phillips: PH0, PH1, PH2 & PH3, 3 x Pozi: PZ1, PZ2 & PZ3, 7 x TORX: TX10, TX15, TX20, TX25, TX27, TX30 & TX40 and 5 x TX-E: E4, E5, E6, E7 & E8;
3/8in Sockets: 9 x TORX: TX10, TX15, TX20, TX25, TX27, TX30, TX40, TX45 & TX50, 5 x TX-E: E10, E12, E14, E16 & E18, 9 x TPX: TPX10, TPX15, TPX20, TPX25, TPX27, TPX30, TPX40, TPX45 & TPX50 and 9 x Hex: 3, 4, 5, 5.5, 6, 7, 8, 10 & 12mm;
1/2in Sockets: 9 x TORX: TX20, TX25, TX27, TX30, TX40, TX45, TX50, TX55 & TX60, 6 x Hex: 5 , 6, 7, 8, 10 & 12mm, 8 x Ribe: 4, 5, 6, 8, 10, 11, 12 & 13 and 7 x XZN: 5, 6, 8, 10, 12, 14 & 16;
1 x 3/8in Extension Bar
TTESK77 1/4in, 3/8in & 1/2in Drive Socket Set, 77 Piece:
11 x Regular 1/4in Drive 6-Point Sockets: 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12 & 13mm;
5 x Deep 1/4in Drive 6-Point Sockets 7, 8, 10, 12 & 13mm;
13 x Regular 3/8in Drive 6-Point Sockets: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 & 22mm;
12 x Regular 1/2in Drive 6-Point Sockets: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 22 & 24mm;
8 x Regular 1/2in Drive 6-Point Impact Sockets: 13, 15, 16, 17, 18, 19, 22 & 24mm;
8 x Deep 1/2in Drive 6-Point Impact Sockets: 13, 15, 16, 17, 18, 19, 22 & 24mm;
1/4in Accessories: 1 x FRP Ratchet, 1 x Spinner Handle 6in, 2 x Extension Bars: 6 & 12in, 1 x Universal Joint, 1 x T-Bar, 1 x T-Bar Handle Adaptor;
3/8in Accessories: 1 x FRP Ratchet, 1 x Wobble Extension Bar 3in, 1 x Extension Bar 6in, 1 x Universal Joint, 1 x 3/8in F:1/4in M Adaptor, 1 x 3/8in F:1/2in M Adaptor, 1 x Rotating Spinner Handle;
1/2in Accessories: 1 x FRP Ratchet, 1 x Wobble Extension Bar 6in, 1 x Extension Bar 10in, 1 x Universal Joint, 1 x 1/2in F:3/8in M Adaptor
TTEX17 Hex Key, Inspection & Torque Wrench Kit, 17 Piece:
1 x 1/2in Torque Wrench;
7 x T-Handle Hex Keys: 2.5, 3, 4, 5, 6, 7 & 8mm;
1 x Mixed Fold-Up Key Set: Hex: 4, 5 & 6mm, TORX: TX25 & TX30, Slotted: 5.5mm & Phillips: PH1 & PZ2;
x Set of Ball Point Hex Keys: 1.5, 2, 2.5, 3, 4, 5, 6, 8 & 10mm;
1 x Ball Point Hex Key: 7mm;
1 x Set of 9 TORX Keys: TX8, TX9, TX10, TX15, TX20, TX25, TX27, TX30 & TX40;
1 x Magnetic Pick Up; 1 x Magnifying Glass; 1 x Extendable Mirror 57cm; 1 x Pocket LED Torch Hook; 1 x Pick-Up Tool with 4 Heads: Awl, Hook, 45° & 90°
TTEX32 Spanner & File Set, 32 Piece:
19 x Combination Spanners: 8-32mm; 8 x Ratcheting Combination Spanners 8-19mm; 5 x 250mm Files: Flat, Round, Half Round, Three Square & Hand Type Flat
Product Specifications
| L&S Part No. | TENMME11A |
|---|---|
| Manufacturer | Teng |
| OEM No. | TCMME11A |
