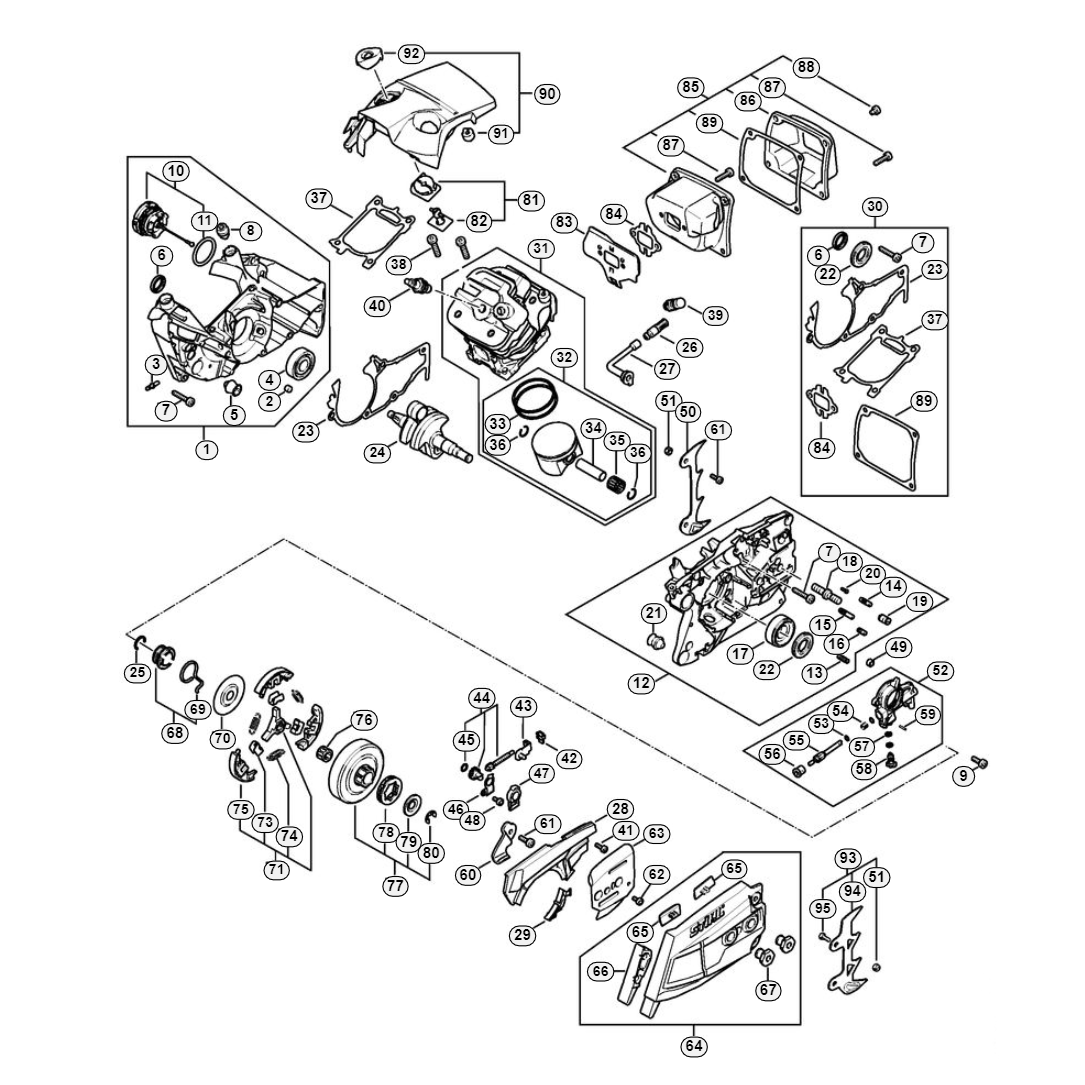

Is there a part number for the whole clutch assembly for the 500i. Its number 71 on the blown up diagram. But there is no Part number in the list.
If you have the TS500I the part you need for the complete clutch is 4250 160 2000.
What are the numbers for item 68, the oiling worm assembly, and item 52, the oil pump assembly?
Please see the requested parts below:
68 (Worm Gear) - 1147 640 7110
52 (Oil Pump) - 1142 640 3200
Where can I find the part numbers for numbers 83 and 84
Please see the links below: 83 - https://www.lsengineers.co.uk/cooling-plate-genuine-stihl-part-oem-no-1147-141-3200.html
84 - https://www.lsengineers.co.uk/catalogsearch/result/?q=1147+149+0600
What is number 88 (screw)?
Number 88 is the screw that goes into the exhaust.
https://www.lsengineers.co.uk/spline-screw-m5x6-for-stihl-ms362-chainsaws-9022-341-0911.html
What is part 22 on the diagram?
It looks like you require the below:
9640 003 1604 - Oil Seal - https://www.lsengineers.co.uk/oil-seal-din3760-bs15x31-5x4-genuine-stihl-part-oem-no-9640-003-1604.html
