Description

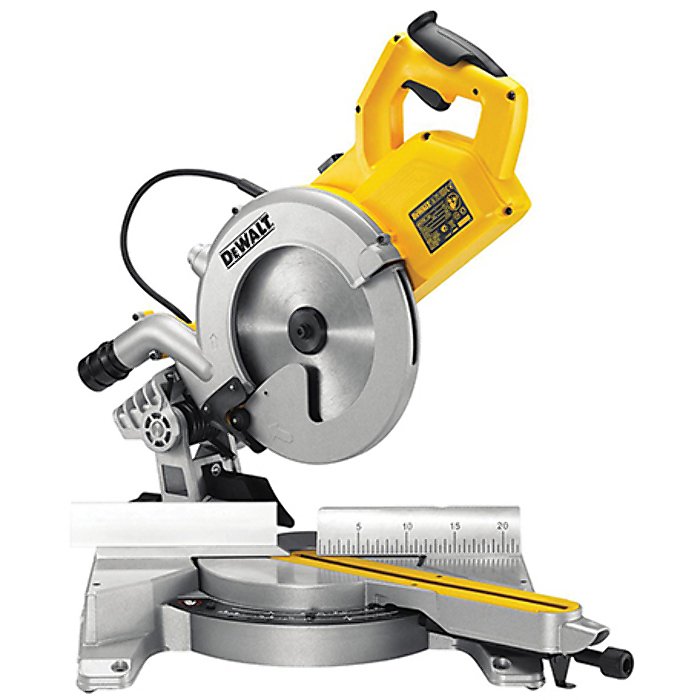

The DEWALT DWS778 Mitre Saw has a 1,850 Watt motor for powerful cutting in all materials. The base and fence have been machined to meet the accuracy requirements of the most demanding applications, and the compact internal rail design provides huge cutting capacity in a highly transportable format.
The Mitre Saw has integrated positive mitre stops at 15°, 22.5°, 30°, 45° and a quick release mitre mechanism up to 50°. The head lock function allows the head to be fixed, restricting the traverse function for trim applications and for ease of transportation. It has a sliding left hand fence with measuring scale for improved material support and management, and its XPS shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity.
The DWS778 has a dust extraction system that is specifically designed to meet the needs of the professional user in heavy use applications, providing protection from airborn dust particles to minimise health risks over long periods.
Supplied with: 1 x TCT 250mm Blade 30mm Bore, 1 x Clamp and 1 x Hexagon Key.
Specification
Input Power: 1,850 Watt.
No Load Speed: 4,300/min.
Capacity: 90/90° - 305 x 85mm, 90/45° - 305 x 45mm,
45/90° - 215 x 85mm, 45/45° - 215 x 45mm.
Blade: 250 x 30mm bore.
Mitre Cut: 50° to 50°, Bevel: 48°.
Weight: 17.2kg.
