Description
Overview:

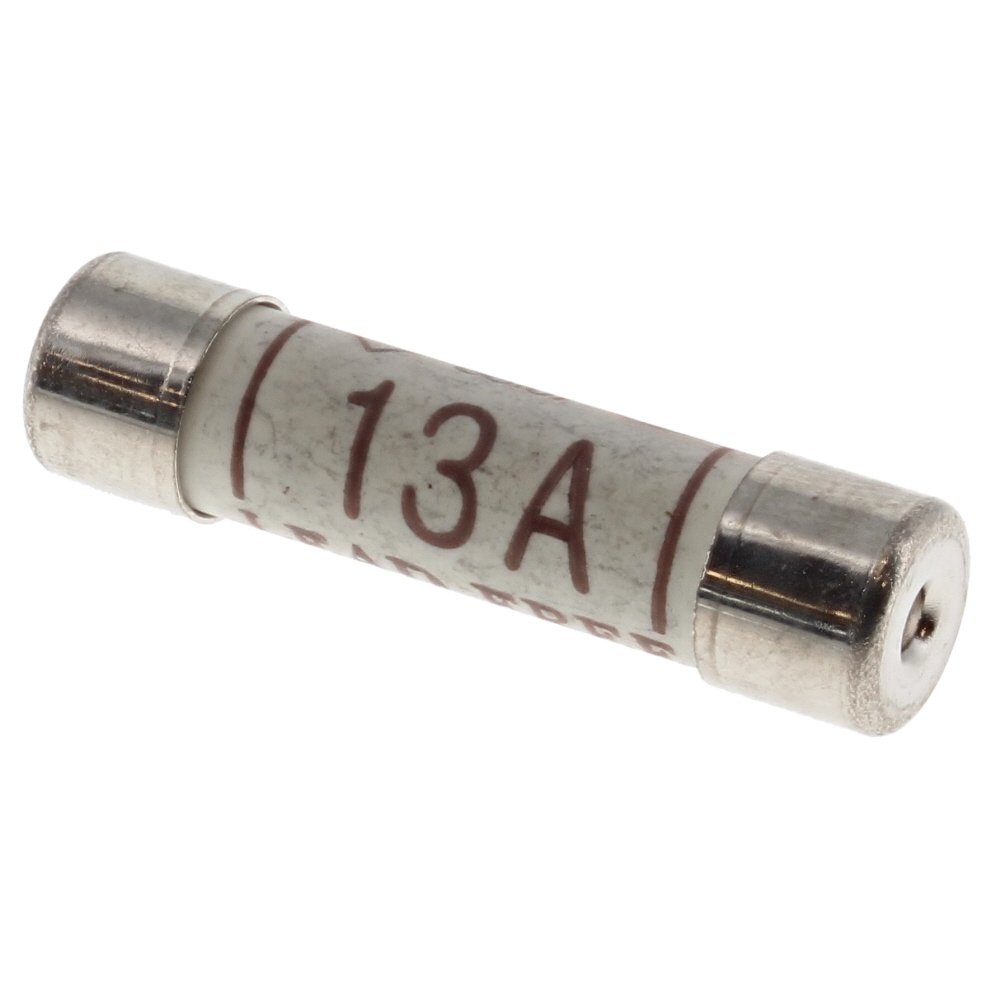

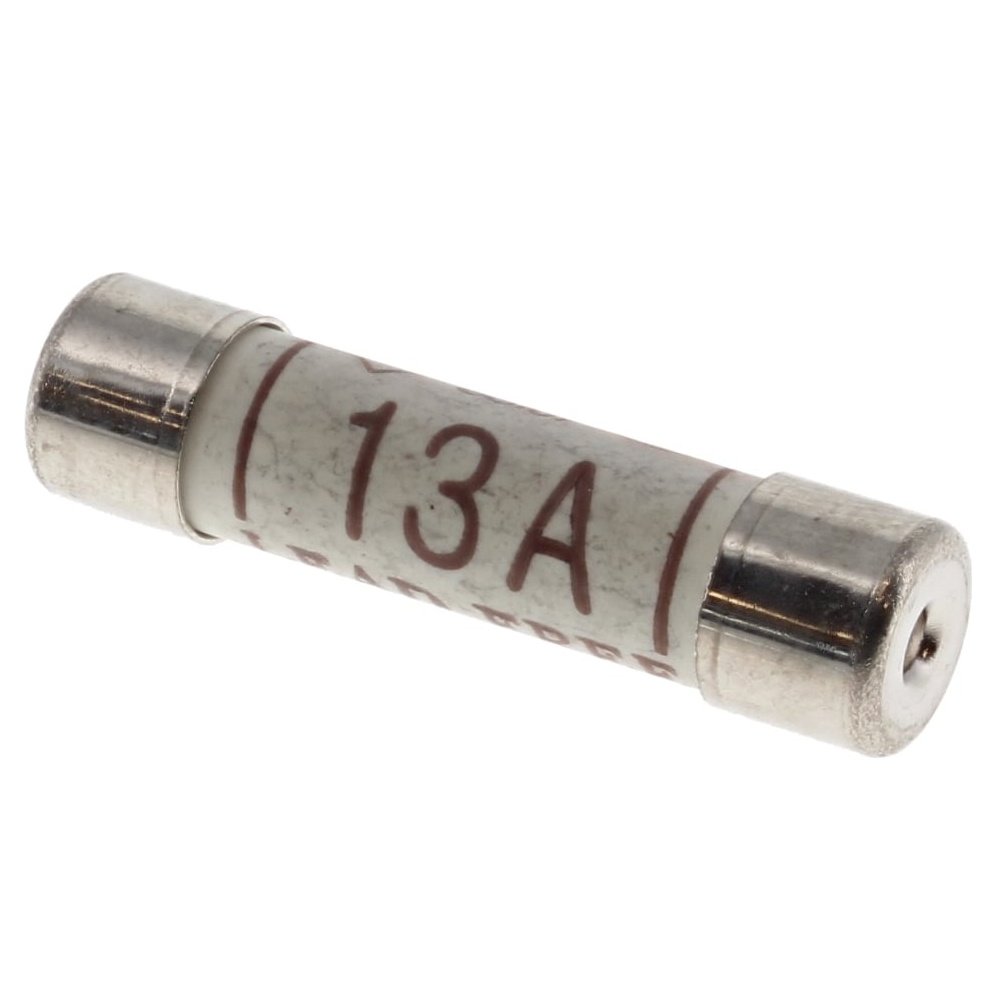

This 13 Amp domestic mains plug fuse is a BS1362-compliant cartridge fuse for use in standard UK 13A plug tops and fused connection units. It protects appliance and tool circuits by breaking safely under fault or overload conditions. The fuse uses a robust ceramic cartridge with metal end caps for dependable contact and heat resistance. It is a common fit for household appliances and portable tools such as kettles, heaters, drills, and lawn mowers using a BS1363 plug. The compact cylindrical size is 6.3 mm x 25.4 mm (1/4 inch x 1 inch), allowing a drop-in replacement in most UK plug carriers. Clearly marked with its 13A rating, it is suitable for 230 V AC UK mains applications. Sold individually for straightforward like-for-like replacements.
Key Features:
- BS1362 compliant for safety and consistent performance
- 13 A rating for typical UK 230 V AC plug circuits
- Standard size 6.3 mm x 25.4 mm (1/4 inch x 1 inch) for an easy fit
- Durable ceramic cartridge with metal end caps for heat resistance and reliability
- Provides overcurrent and short-circuit protection in plug-top carriers
- Clear 13A marking for quick identification
- Simple to replace; no special tools required
- Suitable for BS1363 13A plugs, fused spurs, and extension leads
- Helps protect cables and appliances from damage caused by faults
- Sold individually to replace a single blown fuse as needed
Typical Applications:
Replacement fuse for UK plug tops and fused spurs on household appliances and portable tools. Commonly used in kettles, toasters, microwaves, vacuum cleaners, space heaters, washing machines, pressure washers, lawn mowers, angle grinders, and power tool chargers. Also suitable for extension leads and multiway adaptors where a 13A BS1362 fuse is specified. Always replace like-for-like and match the appliance rating.
Also known as:
13A plug top fuse, BS1362 cartridge fuse, UK mains plug fuse, 6.3 x 25.4 mm fuse, 1/4 inch x 1 inch plug fuse, domestic plug fuse, 13 amp cartridge, plug-top replacement fuse, mains fuse for BS1363 plugs.
Product Specifications
| L&S Part No. | 200 086 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - BS1362 compliant for safety and consistent performance - 13 A rating for typical UK 230 V AC plug circuits - Standard size 6.3 mm x 25.4 mm for an easy fit - Durable ceramic cartridge with metal end caps - Suitable for BS1363 13A plugs and fused spurs |
