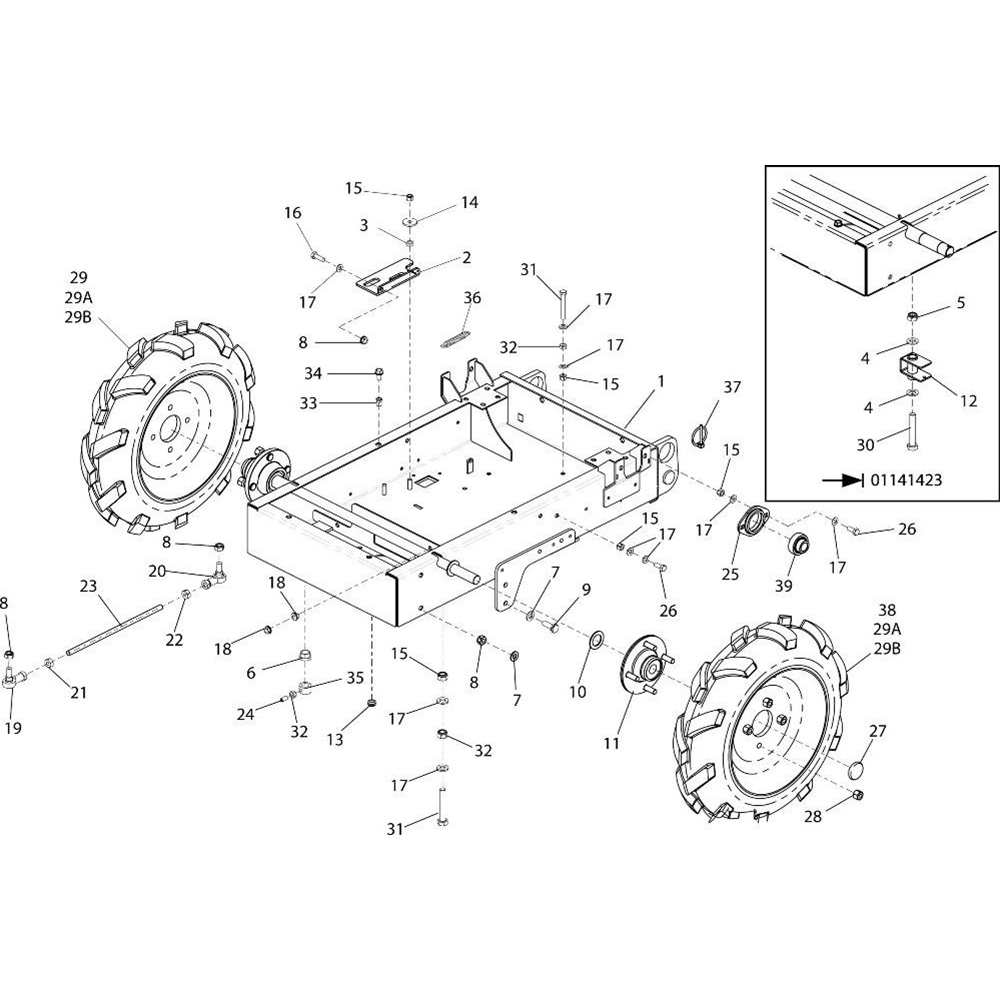

Chassis Assembly for Belle BMD 300 Mini Dumper

Chassis Assembly for Belle BMD 300 Mini Dumper

Chassis Assembly for Belle BMD 300 Mini Dumper.
Genuine Belle Spare Parts Available.
logo

Categories: Belle BMD 300 Minidumper Parts


Part No. Ref. Details Price (Ex. VAT) Qty
1 Chassis Kit
Up To 141778
Price: £486.60

£583.92 (INC. VAT)

1 Main Chassis Assembly Wa
From 141779
Price: £474.95

£569.94 (INC. VAT)

2 Skip Catch
Price: £7.40

£8.88 (INC. VAT)

3 Catch Spacer
Price: £2.35

£2.82 (INC. VAT)

4 Washer
M12
Price: £0.25

£0.30 (INC. VAT)

5 Nut M12 Nyloc Bzp
Price: £0.25

£0.30 (INC. VAT)

6 Gear Selector Bush
Price: £77.60

£93.12 (INC. VAT)

7 Washer
M10
Price: £0.25

£0.30 (INC. VAT)

8 M10 Nut Nyloc Bzp
Price: £0.25

£0.30 (INC. VAT)

9 Bolt - M10 X 30 Hts/Bzp
Price: £0.30

£0.36 (INC. VAT)

10 Friction Wheel Washer
Price: £0.95

£1.14 (INC. VAT)

11 4" Pcd Hub Ga
Price: £40.60

£48.72 (INC. VAT)

12 Belt Guide Wa
Price: £18.60

£22.32 (INC. VAT)

13 Pvc Grommet 9.5 Id X 12.5 Od
Price: £2.55

£3.06 (INC. VAT)

14 Washer
Price: £1.10

£1.32 (INC. VAT)

15 Nut M8 Nyloc Bzp
Price: £0.30

£0.36 (INC. VAT)

16 M8 X 25 Crossed Drill S/Screw
Price: £12.05

£14.46 (INC. VAT)

17 Washer
M8
Price: £0.25

£0.30 (INC. VAT)

18 M8 Flanged Serrated Nut
Price: £0.40

£0.48 (INC. VAT)

20 Rod End M10 R/H
From 114340
Price: £21.95

£26.34 (INC. VAT)

20 Rod End M10 L/H Special
Up To 114339
Price: £45.40

£54.48 (INC. VAT)

22 Nut M10 Hex Grade .8 Bzp
From 114340
Price: £0.25

£0.30 (INC. VAT)

22 Nut M10 Lh
Up To 114339
Price: £1.25

£1.50 (INC. VAT)

23 Adjustable Gear Rod
Up To 114339
Now Use 961/99986
Price: £8.10

£9.72 (INC. VAT)

23 Adj Gear Rod Rh/Rh
From 114340
Price: £30.10

£36.12 (INC. VAT)

24 Screw M8 x 16
Price: £0.25

£0.30 (INC. VAT)

25 Pressedv Steel Housing
Price: £9.45

£11.34 (INC. VAT)

26 Screw M8 X 20 Hex Bzp
Price: £0.25

£0.30 (INC. VAT)

27 Star Clip - Capped
Price: £1.25

£1.50 (INC. VAT)

28 Front Wheel Nut
Price: £1.25

£1.50 (INC. VAT)

29 Tube4.00 - 10
Price: £22.70

£27.24 (INC. VAT)

29 Tyre 4.00 - 10 With Tube
Price: £77.30

£92.76 (INC. VAT)

29 Mini Dumper Wheel 10" Rh
Price: £95.65

£114.78 (INC. VAT)

30 Bolt M12 X 75 Ht Bzp
Price: £0.85

£1.02 (INC. VAT)

31 Bolt M8 X 60 Hts Bzp
Price: £0.30

£0.36 (INC. VAT)

32 Nut - M8 Bzp
Price: £0.30

£0.36 (INC. VAT)

33 Rivnut Hex M8
Price: £0.55

£0.66 (INC. VAT)

34 Screw Set Flanged M8 X 20 Bzp
Price: £0.25

£0.30 (INC. VAT)

35 Lower Gear Selector Boss
Price: £5.25

£6.30 (INC. VAT)

36 Tension Spring
Price: £3.15

£3.78 (INC. VAT)

37 Lynch Pin ( 4 X 45 )
Price: £1.15

£1.38 (INC. VAT)

38 Mini Dumper Wheel 10" Lh
Price: £90.70

£108.84 (INC. VAT)

39 Axle Bearing
Price: £23.80

£28.56 (INC. VAT)

Add Items to Basket
