Description
Overview:

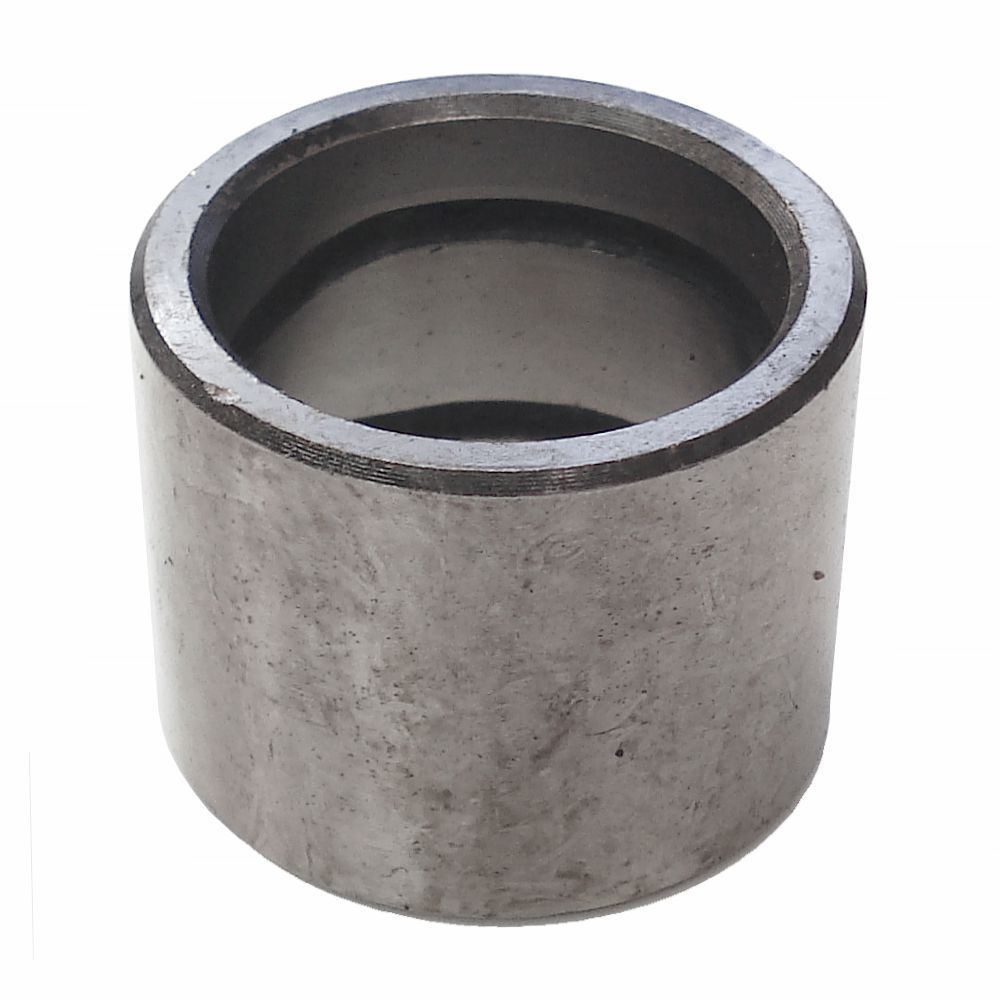

The Bush (Position 10 Link) for the JCB 8017 mini excavator is a precision‐machined steel sleeve that restores smooth, controlled movement at a key linkage pivot. It replaces OEM part number 809/10038 and is designed to support the pin within the link, helping to keep the assembly correctly aligned and reduce play. This is a Non Genuine Part. An internally lubricated design aids grease distribution to cut friction and wear during daily use. Core dimensions are 30 mm internal diameter, 38 mm outer diameter, and 30 mm length. Built for the Position 10 link on the 8017, it is suitable for routine maintenance or repairs in workshop or on‐site conditions, helping to maintain accurate operation of the excavator's linkage system.
Key Features:
- Non Genuine Part; compatible replacement for OEM 809/10038
- Designed for the Position 10 Link on JCB 8017 mini excavators
- Dimensions: 30 mm I/D x 38 mm O/D x 30 mm length
- Internal lubrication pathway helps reduce friction and wear
- Precision-machined steel for a consistent, reliable fit
- Helps restore correct pivot alignment and smooth movement
- Straightforward to install for minimal downtime
- Suitable for regular maintenance programmes and field repairs
Typical Applications:
Used at the Position 10 linkage pivot on JCB 8017 machines to replace a worn bush causing play, noise, or uneven wear. Ideal for servicing boom and dipper linkage points, preventive maintenance on fleet machines, and refurbishing used excavators to regain tight, predictable control of the linkage system.
Also known as:
Linkage bush, pivot bush, link pivot sleeve, mini digger bush, JCB linkage pivot bush, Position 10 link bush, excavator linkage sleeve.
Fits Models:
8017
Alternate Part Numbers:
809/10038, 809 10038, 80910038
Product Specifications
| L&S Part No. | 202 1701 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Size | I/D: 30mm x O/D: 38mm x Length: 30mm |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Key Features | - Compatible with JCB 8017 mini excavators - Replaces OEM part number 809/10038 - Dimensions: 30 mm I/D x 38 mm O/D x 30 mm length - Internal lubrication reduces friction and wear - Precision-machined steel ensures reliable fit |
