Description
Overview:

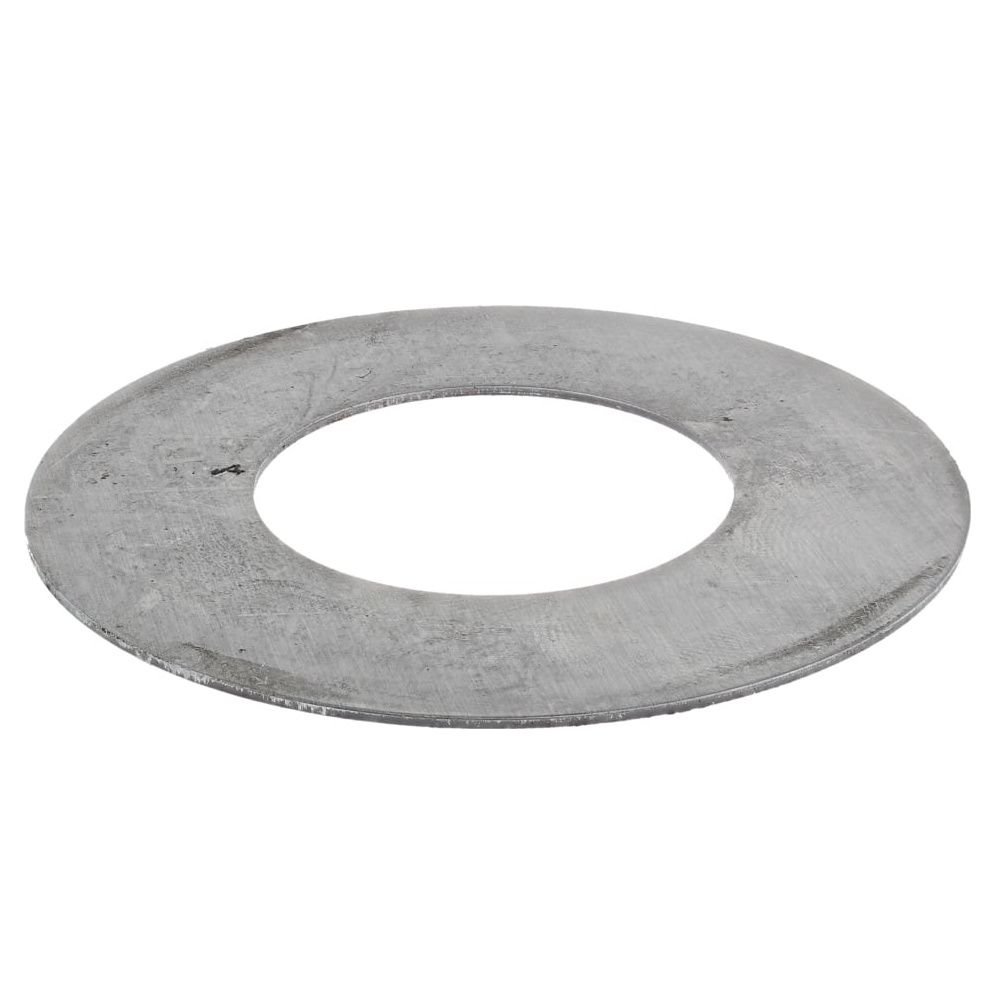

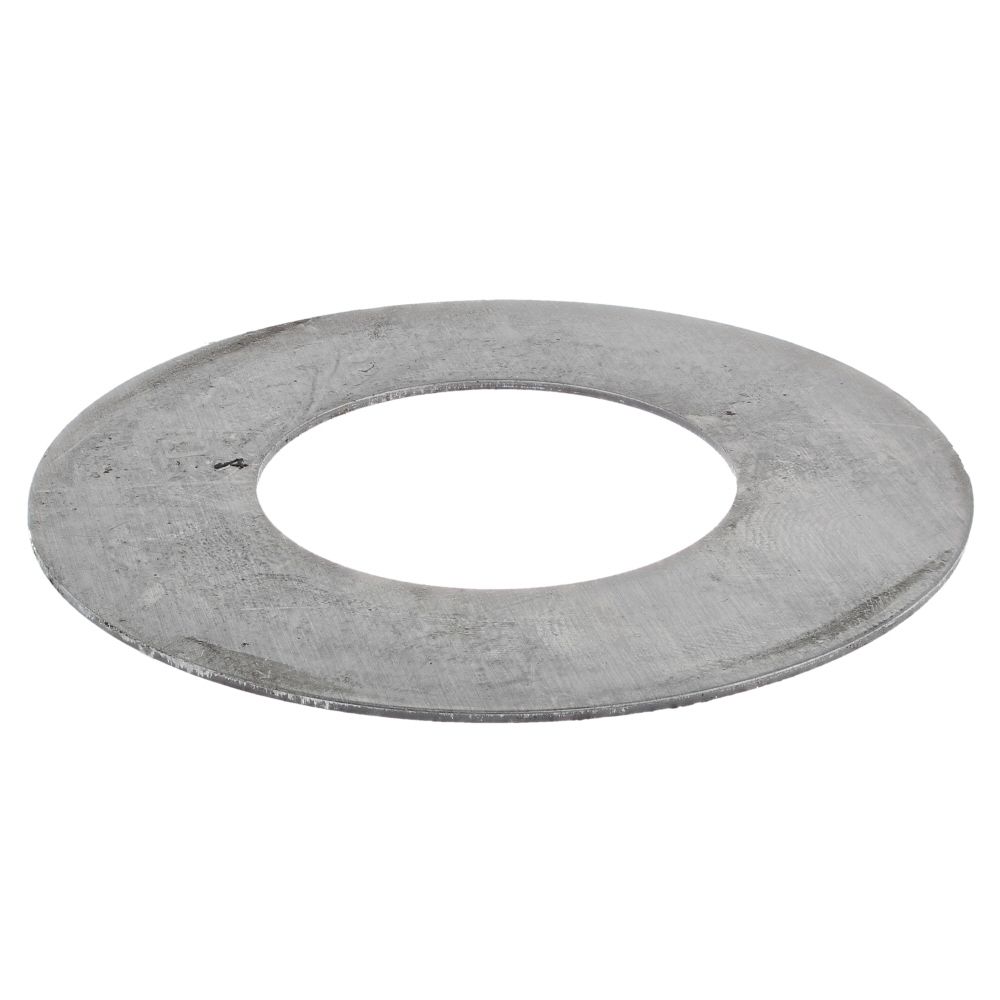

This bucket packing shim is a precision steel washer used to take up wear and reduce side play at bucket and linkage joints on excavators and diggers. It helps control bucket wobble, improves accuracy at the cutting edge, and supports smoother operation. Sized for common pin and boss dimensions, it suits maintenance and repairs on compact and mid-size machines, including the JCB 8025 ZTS and Case CX28. Key dimensions are 35 mm inner diameter, 70 mm outer diameter, and 1 mm thickness, making it easy to stack for fine adjustment. Supplied as MPN 300 025, it replaces JCB OEM 823/00237, offering a practical solution for restoring correct clearances without replacing major components.
Key Features:
- 35 mm I/D, 70 mm O/D, 1 mm thickness for accurate clearance control
- Helps eliminate bucket side play and improves digging precision
- Steel construction for dependable performance in site conditions
- Simple to fit during pin/bush servicing or routine inspections
- Consistent 1 mm thickness allows stacking to achieve the required shim pack
- Supports longer service life of pins, bushes, and bucket ears by reducing movement
- Suitable for a wide range of mini and midi excavators
- Replaces JCB OEM reference 823/00237 for straightforward cross-checking
- MPN 300 025 for easy identification in workshop and parts records
Typical Applications:
Used at bucket-to-dipper, bucket-to-linkage, and tilt linkage joints to take up wear. Ideal for construction, utilities, landscaping, and plant hire maintenance where restoring tight joints improves accuracy, breakout control, and operator confidence without immediate component replacement.
Also known as:
Spacer washer, bucket side-play washer, pin shim, linkage shim, wear take-up shim, bucket pivot shim, bucket joint shim, digger spacer washer.
Fits Models:
802, 802.4, 8024, 8025, 8025 ZTS, 8027, 8027 ZTS, 803, 8030, 8030 ZTS, 8032, 8032 ZTS, 8035, 8035 ZTS, 804, CX23, CX27, CX28, Case 23, Case 28, Case CX23, Case CX27B, Case CX28, KX71, KX71-2, KX712
Product Specifications
| L&S Part No. | 300 025 |
|---|---|
| Unit of Sale | 1 |
| Size | 30 mm I/D - 1mm Thick |
| Machine Type | Excavators |
| Fits Brands | Case, JCB, Kubota |
| Key Features | - 35 mm I/D, 70 mm O/D, 1 mm thickness - Steel construction for site durability - Replaces JCB OEM 823/00237 - Suitable for mini and midi excavators - Fits JCB 8025 ZTS, Case CX28 models |
| Fits Models | KX71 | KX71-2 | 802 | 802.4 | 803 | 804 | 8025 | 8027 | 8030 | 8032 | 8035 | CX23 | CX27 | CX28 |
