Description
Overview:

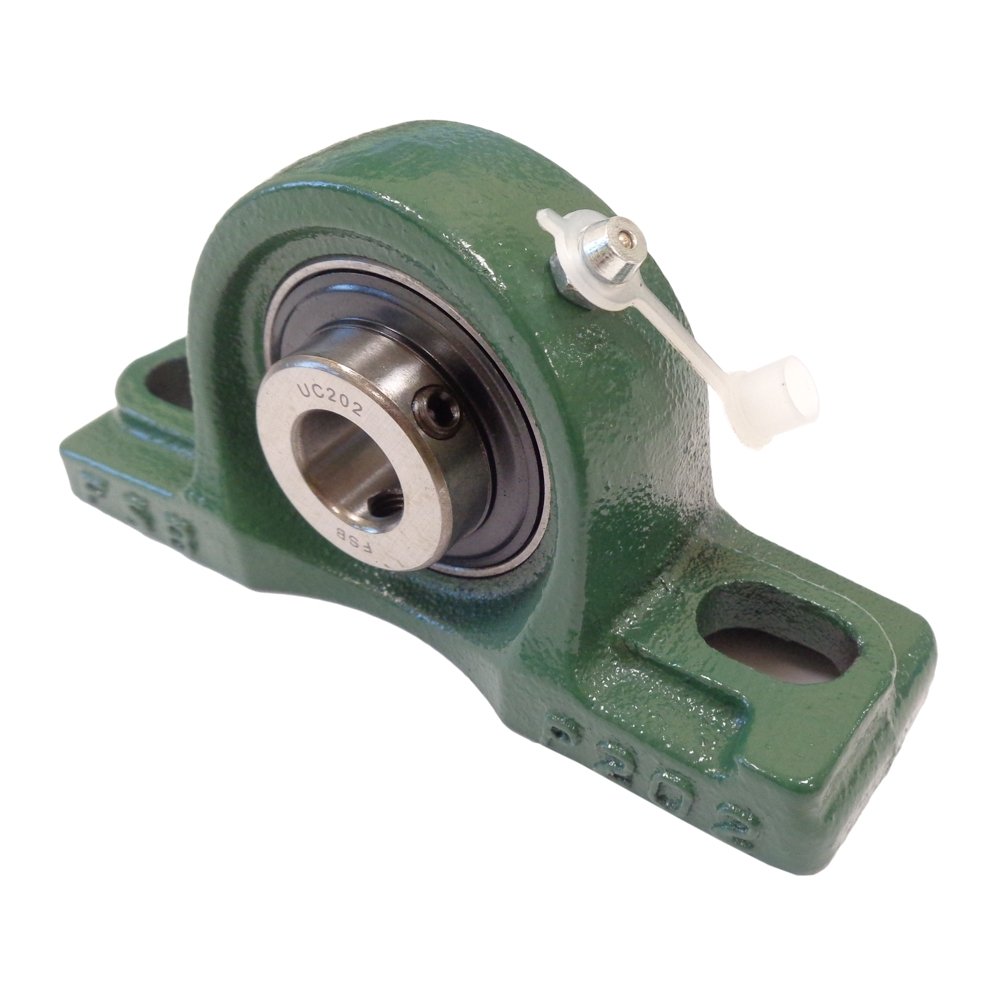

The UCP202 Bearing & Housing is a compact, 2‐bolt pedestal (pillow block) unit built for reliable shaft support in machinery. It combines a robust cast iron housing with a premium Japanese bearing insert designed to reduce friction and carry radial loads with moderate axial support. With a 15 mm bore for standard 15 mm shafts and M10 bolt mounting, it suits a wide range of plant, workshop, and agricultural equipment. The spherical outer ring of the insert allows slight self‐alignment to accommodate minor shaft misalignment, helping maintain smooth running and reduce wear. Typical uses include conveyors, fans, pumps, compactors, mixers, and processing equipment where dependable, low‐maintenance rotation is needed. Designation examples include UCP202 and the matching UC202 insert style commonly used in this housing size.
Key Features:
- 15 mm bore suits standard 15 mm shafts for straightforward replacement and new builds
- M10 bolt size for secure 2‐bolt mounting on frames, bases, and machine plates
- Heavy‐duty cast iron housing for rigidity and vibration resistance in demanding environments
- Premium Japanese bearing steel insert for durability and consistent performance
- Self‐aligning spherical outer ring helps compensate for minor mounting or shaft misalignment
- Set‐screw locking on the inner ring provides a quick, positive clamp to the shaft
- Protective housing finish helps resist corrosion in workshop and site conditions
- Interchangeable UCP202 footprint for easy retrofit with common industry dimensions
- Supports continuous operation with stable running and reduced friction
- Suitable for radial loads with moderate axial capacity typical of mounted units
Typical Applications:
Used on conveyor rollers, small material‐handling lines, agricultural machinery, lawn and garden equipment, ventilation fans, pumps, compactors, mixers, packing machines, and light industrial drives. Ideal wherever a 15 mm rotating shaft needs reliable support on a flat mounting surface. Common in factories, workshops, farmyards, and maintenance setups where quick installation and straightforward servicing reduce downtime.
Also known as:
Plummer block unit, 2‐bolt pedestal bearing, housed bearing unit, UCP 202, bearing with foot housing, self‐aligning pedestal bearing, pedestal pillow block, mounted shaft support unit. These terms refer to the same general style of bearing and housing assembly used to support a shaft on a base or frame.

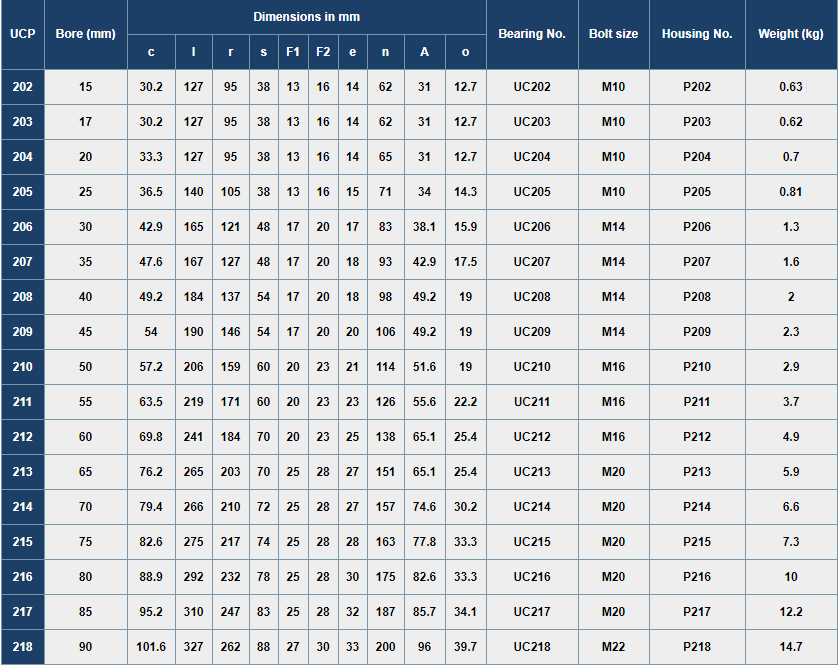

Product Specifications
| L&S Part No. | 108 010 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - 15 mm bore fits standard 15 mm shafts - M10 bolt size for secure 2-bolt mounting - Cast iron housing for rigidity and vibration resistance - Self-aligning spherical outer ring for minor misalignment - Premium Japanese bearing steel insert for durability |
