Description
Overview:

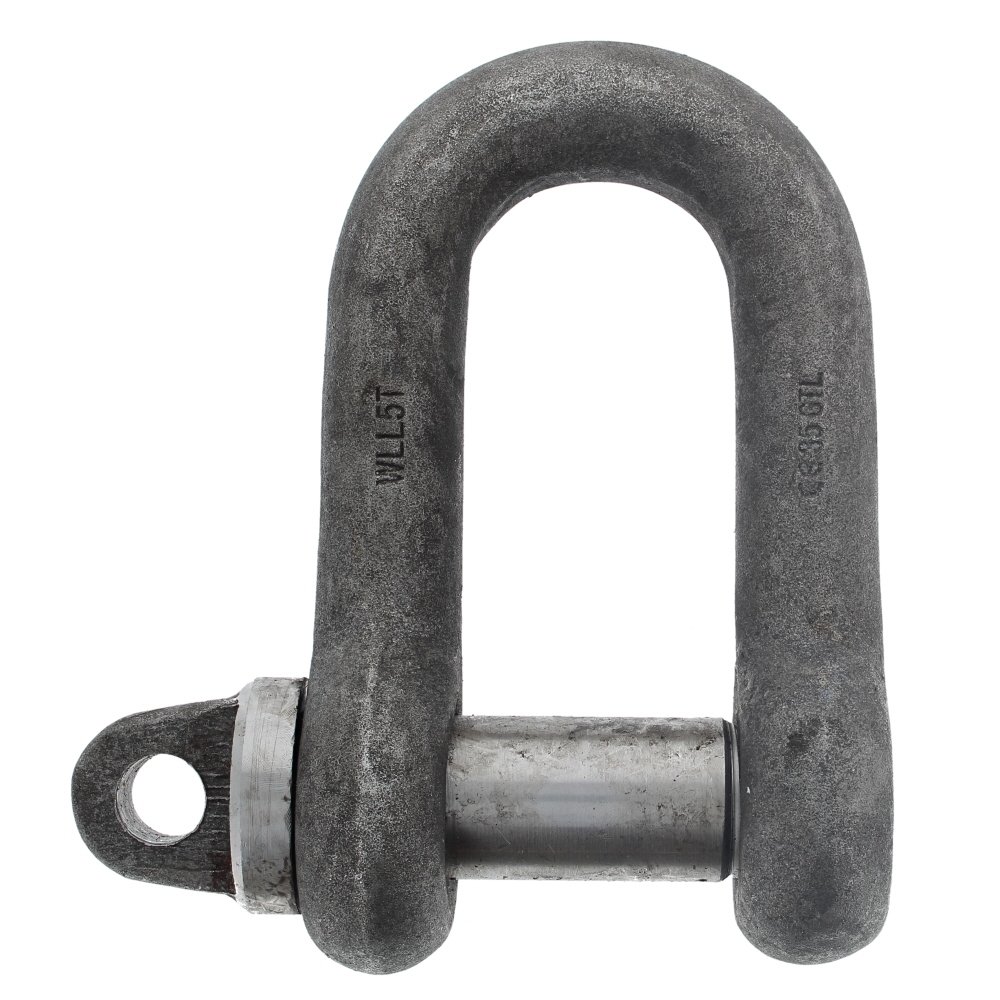

The Alloy Steel Tested D Lifting Shackle with Screw Collar Pin is a heavy-duty connector for lifting and rigging tasks on site, in the workshop, and around plant equipment. Built from high-strength alloy steel, it provides dependable load handling with a Safe Working Load (S.W.L.) of 5 ton (approx. 5.08 tonne / 5,080 kg). The compact D-shaped body offers strong, straight-line load capability, while the screw collar pin allows quick fitting and positive retention under load. With a shackle opening of 6 cm and practical overall dimensions (A 28 mm, B 32 mm, C 54 mm, D 104 mm, E 64 mm), it suits chain, wire rope, or webbing slings used on cranes, hoists, lifting beams, excavators, and material handling frames across construction and industrial environments.
Key Features:
- Safe Working Load 5 ton (approx. 5.08 tonne / 5,080 kg) for reliable lifting capacity
- Screw collar pin for fast, tool-friendly fitting and secure closure
- Robust alloy steel construction for strength and long service life
- D-shaped profile optimised for inline pulls and controlled load paths
- 60 mm shackle opening accommodates common sling eyes and hardware

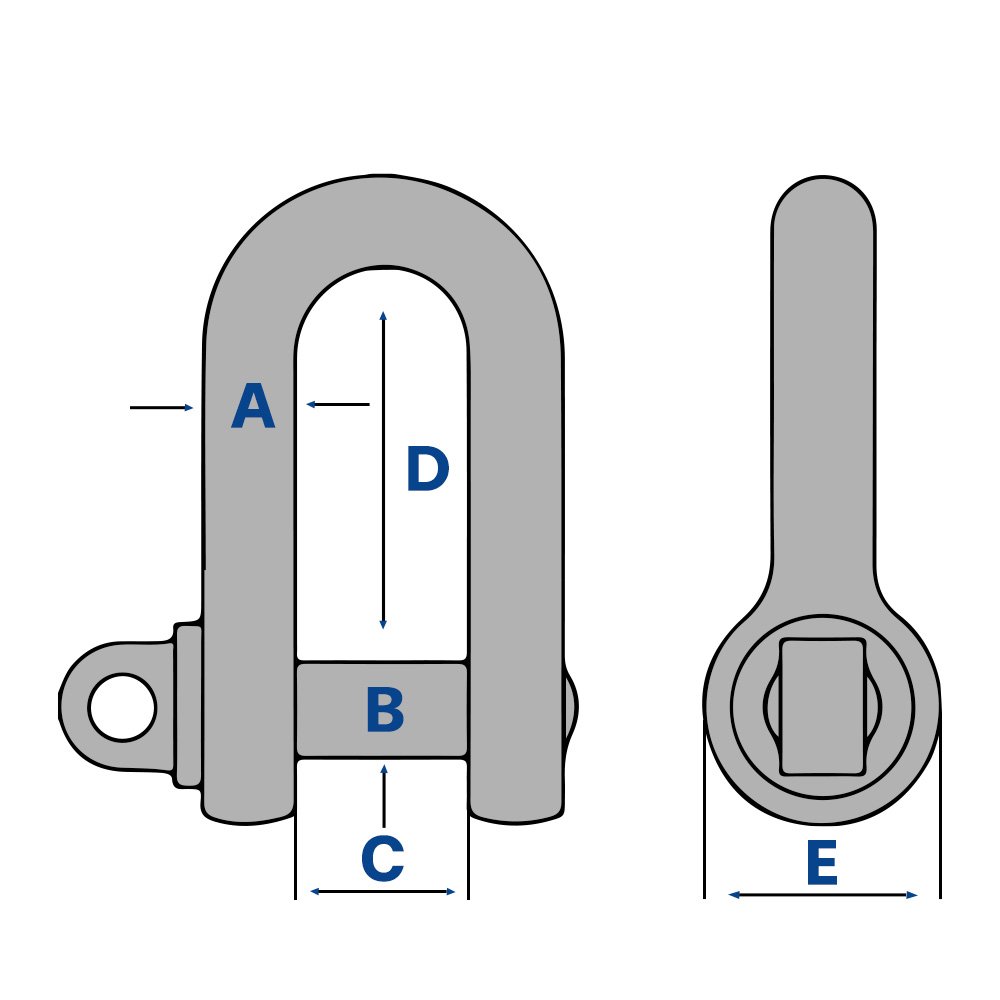

- Practical dimensions: A 28 mm, B 32 mm, C 54 mm, D 104 mm, E 64 mm
- Smooth bearing surfaces help reduce wear on chains, wire ropes, and webbing
- Simple to inspect with visible pin engagement and clear geometry
- Versatile for use with chain slings, wire rope assemblies, and polyester slings
- Suitable for demanding site conditions where dependable rigging is required
Typical Applications:
Securing slings to lifting points, lifting beams, spreader bars, and anchor plates; connecting chains or wire ropes to loads; attaching hoists, tirfors, and winch lines; general rigging on construction sites, plant maintenance, fabrication shops, warehouses, and yard operations where safe, repeatable handling is essential.
Also known as:
Dee shackle, chain shackle, screw pin shackle, collar pin shackle, lifting D, rigging shackle, connector shackle, D-type shackle, straight shackle, shackle link.
Product Specifications
| L&S Part No. | 200 526 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - Safe Working Load of 5 ton (5,080 kg) - Screw collar pin for quick, secure fitting - Alloy steel construction ensures strength and durability - 60 mm shackle opening fits common sling eyes - D-shaped profile for inline load handling |
