Description
Overview:

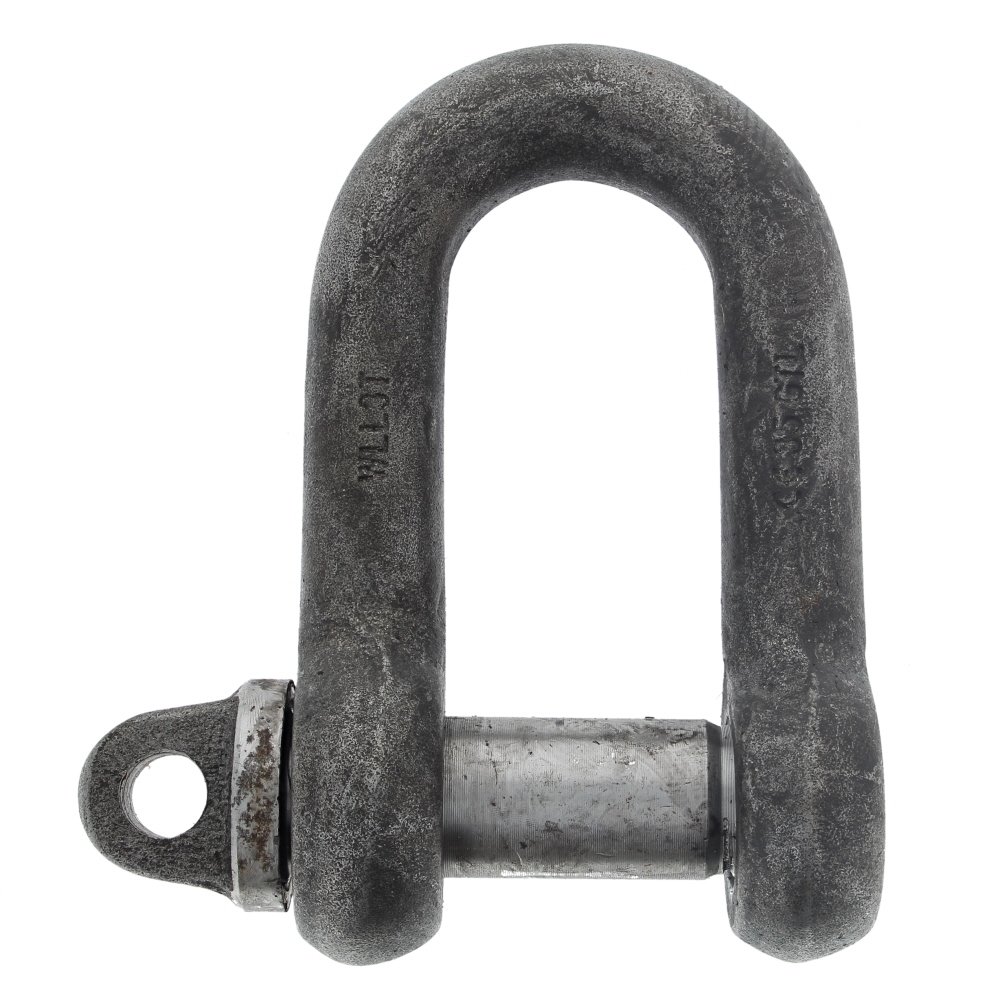

The Alloy Steel Tested D Lifting Shackle with Screw Collar Pin is a heavy-duty connector for lifting, rigging, and secure attachment. Made from high-strength alloy steel, it provides dependable performance where straight-line loading is required, such as between chain slings, wire rope eyes, webbing slings, hooks, and lifting points on construction and industrial equipment. It is certified for a maximum safe working load of 3 tons (approximately 2,722 kg), giving confidence for everyday site work and workshop handling. The D-shaped body helps keep loads aligned, while the screw collar pin allows quick fitting and removal without special tools. Practical dimensions support correct sizing: pin length 87 mm, pin diameter 23 mm; shackle outer 130 x 90 mm; inner 87 x 47 mm; with key section sizes A 22 mm, B 25 mm, C 44 mm, D 82 mm, E 51 mm.
Key Features:
- Safe working load: 3 tons (approx. 2,722 kg) for dependable lifting and load restraint
- Durable alloy steel construction for strength and long service life
- D-shaped body helps maintain straight-line loading to minimise side loading
- Screw collar pin for quick, secure attachment and removal on site
- Pin dimensions: 87 mm length, 23 mm diameter for robust engagement
- Shackle dimensions: outer 130 x 90 mm; inner 87 x 47 mm for practical fit-up with common slings and hooks

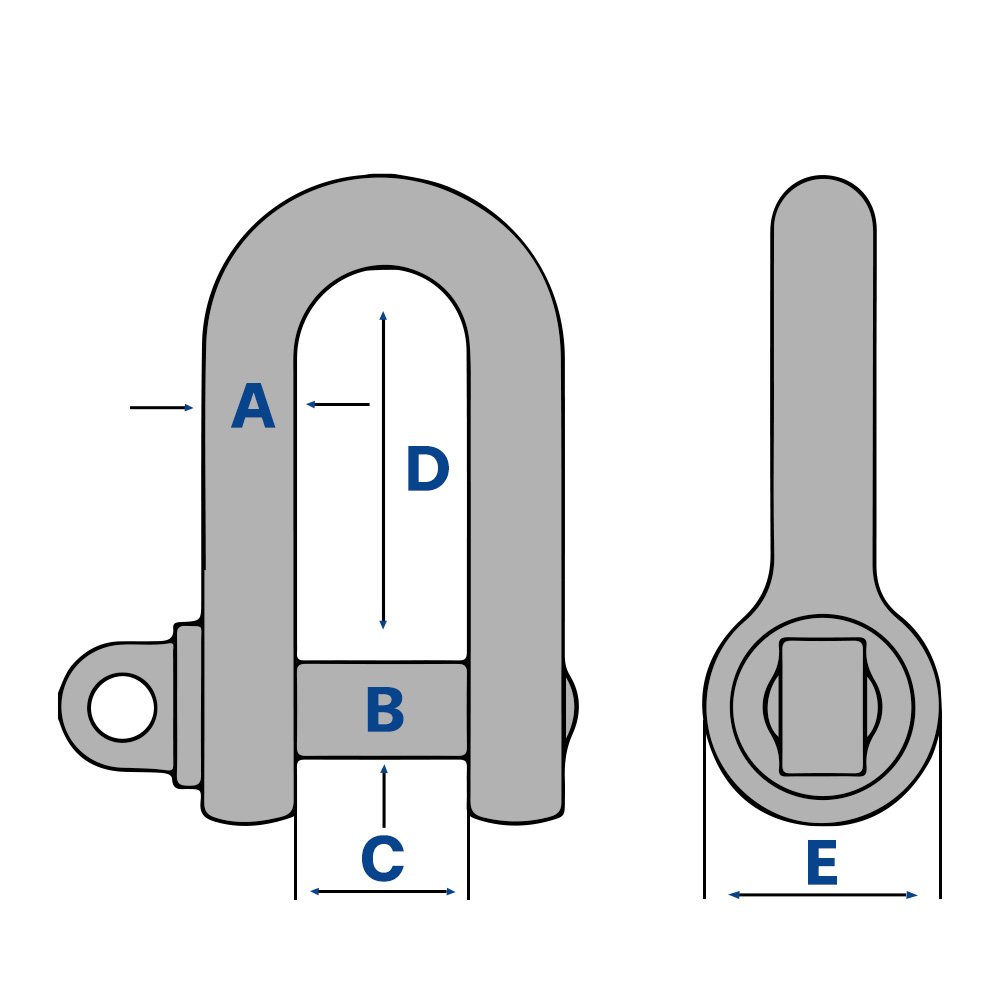

- Additional sizing: A 22 mm, B 25 mm, C 44 mm, D 82 mm, E 51 mm to assist with compatibility checks
- Smooth-threaded pin with positive collar seating for reliable tightening by hand or with a bar through the eye
- Versatile use with chain, wire rope, or webbing slings across construction, plant maintenance, and warehouse handling
- Easy visual inspection and straightforward maintenance
Typical Applications:
General lifting and rigging on construction sites, plant rooms, and workshops; connecting slings to lifting points or hooks; material handling with chain blocks, hoists, and winches; securing loads to spreader beams; temporary anchoring for lifting frames; and attaching tow straps or taglines where appropriate and within the stated S.W.L.
Also known as:
Dee shackle, collared-pin shackle, screw-pin D, chain rigging shackle, lifting connector, straight shackle, rigging D shackle.
Product Specifications
| L&S Part No. | 200 525 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - Safe working load: 3 tons (approx. 2,722 kg) - Durable alloy steel construction for strength - D-shaped body maintains straight-line loading - Screw collar pin for quick attachment - Pin dimensions: 87 mm length, 23 mm diameter |
