Description
Overview:

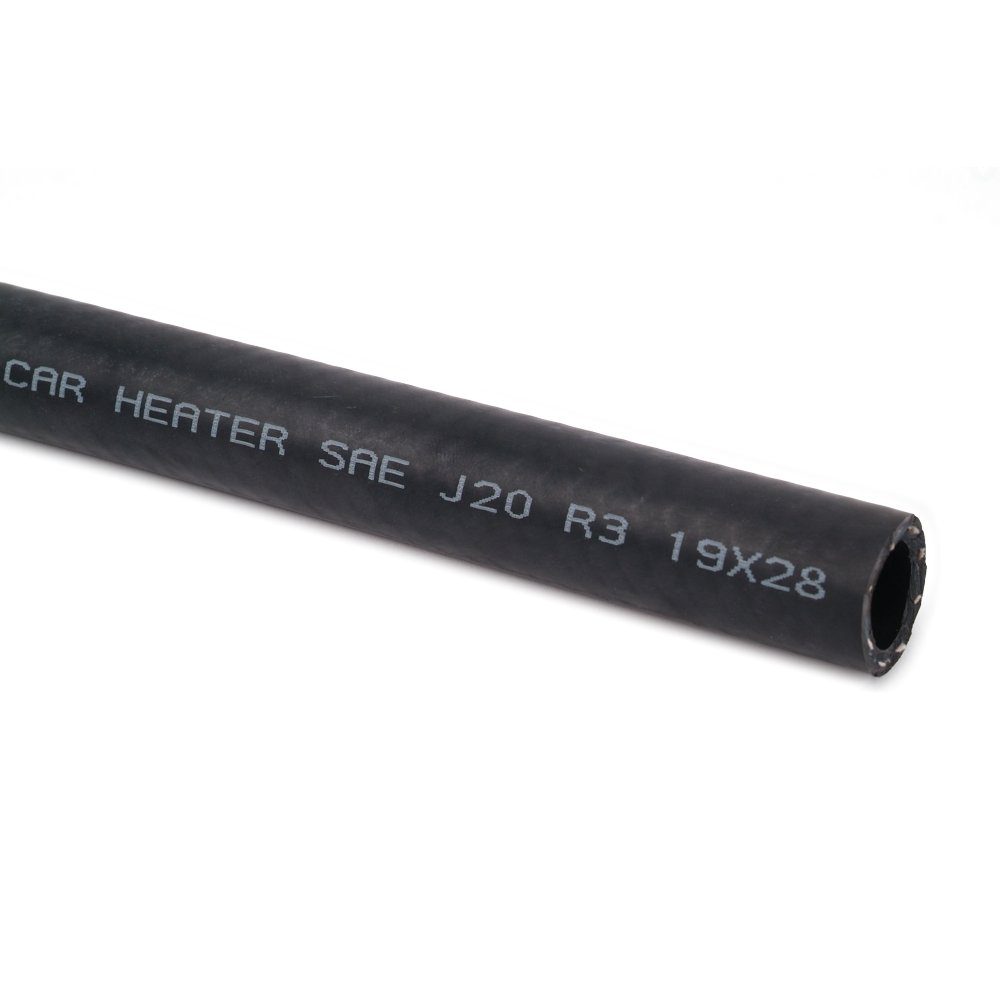

The 3/8" Car Heater Hose SAE J20R3 (20 Metre) is a flexible, heat‐resistant hose for circulating hot water/engine coolant in vehicle heating circuits. Made from durable black EPDM rubber with synthetic textile reinforcement, it is designed for reliable service between the engine and the heater core in cars, vans, and light commercial vehicles. Supplied as a continuous 20 m coil for cutting to length, it has a 3/8 inch nominal bore (about 9.5 mm) with a specified Internal Diameter of 10 mm and an Outer Diameter of 17 mm. The hose is rated to 10 bar (145 psi) and weighs 240 g per metre for easy handling. Manufactured under part number 124 0270. Suitable for use with standard hose clips matched to the 17 mm O/D.
Key Features:
- Complies with SAE J20R3 for automotive heater/coolant service
- 3/8" nominal (≈9.5 mm), 10 mm I/D and 17 mm O/D for straightforward sizing and clamp selection
- Black EPDM rubber construction for heat, coolant, and ozone resistance
- Synthetic textile reinforcement for strength and kink resistance
- Working pressure: 10 bar (145 psi) for dependable performance in vehicle systems
- 20 m continuous length-cut only what you need, minimising waste
- Lightweight at 240 g/m; approx. 4.8 kg total for a 20 m coil
- Smooth, flexible cover for easy routing in tight engine bays
- Compatible with common engine coolants/antifreeze; select clamps to suit 17 mm O/D
- Not suitable for fuels, oils, or steam service
Typical Applications:
Carrying hot coolant between the engine and heater core in passenger cars, 4x4s, vans, light commercial vehicles, and kit car builds. Suitable for heater matrix feed/return lines, bypass circuits, and repairs or restorations where a 10 mm I/D heater hose is required. Ideal for replacing aged or perished heater hoses to restore reliable cabin heating performance.
Also known as:
Heater matrix hose, heater line, coolant return hose, cabin heater hose, bulk heater hose, flexible coolant hose, 10 mm I/D heater hose, SAE J20 heater hose, hot water heater hose.
Product Specifications
| L&S Part No. | 124 0270 |
|---|---|
| Unit of Sale | 1 |
| Size | I/D 10.0mm x O/D 17.0mm |
| Key Features | - 3/8" nominal bore, 10 mm I/D, 17 mm O/D - Black EPDM rubber for heat and coolant resistance - Synthetic textile reinforcement prevents kinking - Rated to 10 bar (145 psi) pressure - Supplied in 20 m continuous coil |
