Description
Overview:

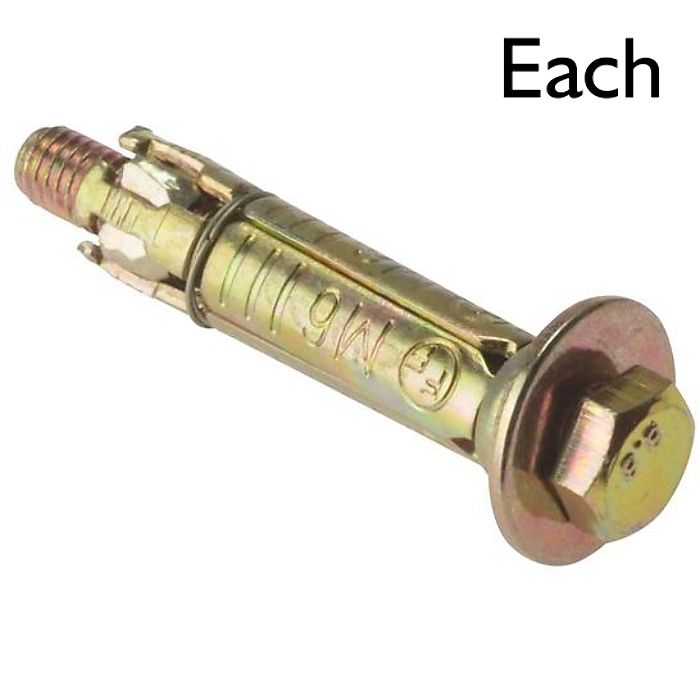

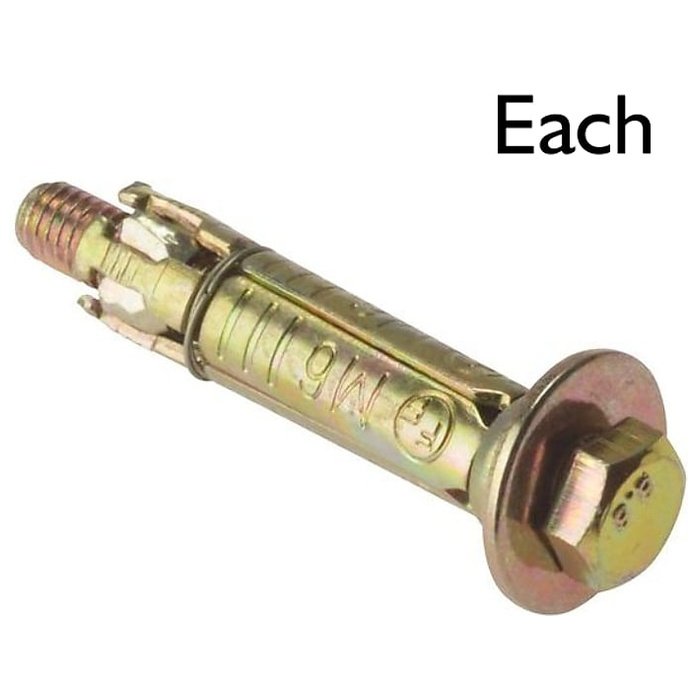

The Shield Anchor - Loose Bolt, Size: M16 x 30 (Hole Size: 24mm) is a heavy‐duty mechanical expansion fixing for solid masonry. Made from durable steel, it delivers a secure hold in concrete and brick where high shear and tensile resistance are required. The four‐piece shield grips the substrate as the captive cone expands when the hex bolt is tightened, providing a firm, vibration‐resistant anchor point for base plates, brackets, frames, and machinery mounts. With an M16 thread and a 24mm drilled hole requirement, it suits a wide range of construction and garden machinery installations, including workshop equipment, racking, and engine or pump mounts. Supplied as a single unit for flexible purchasing, it is a practical choice for professional trades, facilities maintenance, and capable DIY users.
Key Features:
- M16 x 30mm shield anchor size for robust fixings in solid masonry
- Requires a 24mm drilled hole for correct expansion and load performance
- Four‐piece segmented shield for high grip and reliable load transfer
- Captive expansion cone locks the fixing as the bolt is tightened
- Steel construction for durability in demanding site environments
- Suitable for concrete and solid brick; not recommended for hollow block
- Hex head loose bolt design allows easy tightening with standard hand tools
- Vibration‐resistant anchoring helps maintain clamp force under load
- Clean, reusable bolt with replaceable washer for straightforward maintenance
- Sold individually to match exact project quantities; part of a wider size range (M6 x 10 to M16 x 60)
Typical Applications:
Fixing machinery base plates, compressor or generator feet, pump frames, racking uprights, handrails, guard rails, heavy brackets, shelving supports, angle plates, and steelwork to concrete slabs or solid brick walls. Suitable for workshop fit‐outs, plant rooms, garages, and landscaping structures where a strong, permanent anchor is required.
Also known as:
Shield bolt, mechanical expansion fixing, heavy‐duty masonry fixing, concrete anchor, wedge‐type shield anchor, fixing bolt for masonry, heavy wall fixing, mechanical wall anchor, expansion shield fixing.
Product Specifications
| L&S Part No. | 903 2214 |
|---|---|
| OEM No. | 903 2214 10PK |
| Unit of Sale | Each |
| Key Features | - M16 x 30mm size for robust masonry fixings - Requires 24mm drilled hole for expansion - Four-piece shield ensures high grip and load transfer - Steel construction for durability in tough environments - Vibration-resistant anchoring maintains clamp force under load |
