Description
Overview:

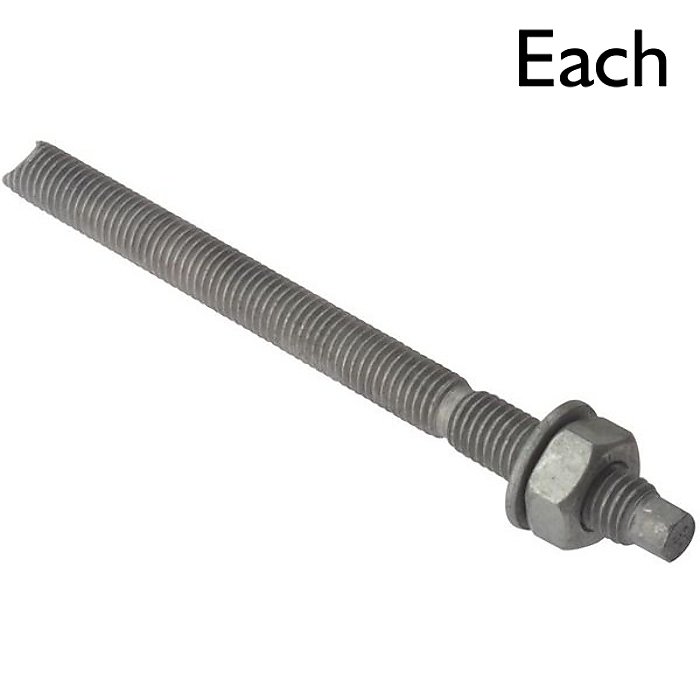

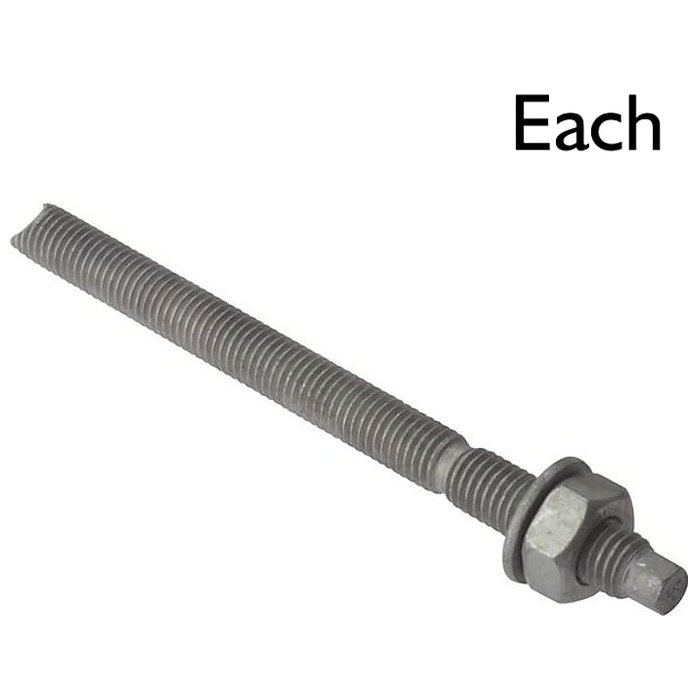

The Chemical Anchor Stud M16 x 190 is a heavy‐duty fixing for anchoring into concrete and other solid base materials using resin systems. Manufactured from zinc‐galvanised steel for enhanced corrosion resistance, it provides a durable, high‐strength thread for securing brackets, baseplates and structural components. The stud is supplied complete with a matching nut and washer for a straightforward installation. Size: M16 (16 mm diameter) x 190 mm overall length (7.48 inches). Suitable for construction, civil engineering, plant rooms, and workshop use where reliable load transfer is required. Works with common two‐component injection resins or capsule systems to create a bonded anchor. Manufacturer Part Number (MPN): 903 2533. Also available across a wider size range and in stainless steel options.
Key Features:
- Robust zinc‐galvanised steel for long‐term corrosion resistance in typical UK site conditions
- M16 thread provides a strong, versatile fixing point for heavy loads
- 190 mm length (7.48 inches) suited to deeper embedments in solid substrates
- Supplied with nut and washer for a complete fixing set
- Reliable performance when used with chemical anchoring resins in concrete and stone
- Clean, consistent thread for easy assembly and accurate torqueing
- Suitable for internal and sheltered external environments
- Compatible with common resin systems (epoxy, vinylester, polyester) used by trades
- Helps achieve high pull‐out and shear values when installed to best practice
- Part of a range from M8 x 110 to M20 x 270, with stainless steel options for higher corrosion zones
Typical Applications:
Anchoring machinery baseplates, racking and shelving, structural steel connections, balustrades and handrails, safety barriers, signposts, fence shoes, pipework supports, cable tray brackets and plant fixings into concrete or natural stone. Ideal for refurbishment and new build where drilling and resin bonding is preferred over expansion anchors, helping reduce edge distances and minimise substrate cracking.
Also known as:
Chemical fixing stud, resin anchor stud, bonded stud, stud anchor, adhesive anchor, capsule stud, threaded fixing stud, chemical resin bolt, fixing rod, bonded anchor rod.
Product Specifications
| L&S Part No. | 903 2533 |
|---|---|
| Unit of Sale | Each |
| Key Features | - M16 x 190 mm zinc-galvanised steel for corrosion resistance - Supplied with nut and washer for complete installation - Compatible with epoxy, vinylester, polyester resin systems - Suitable for concrete and stone anchoring applications - Achieves high pull-out and shear values when correctly installed |
