Description

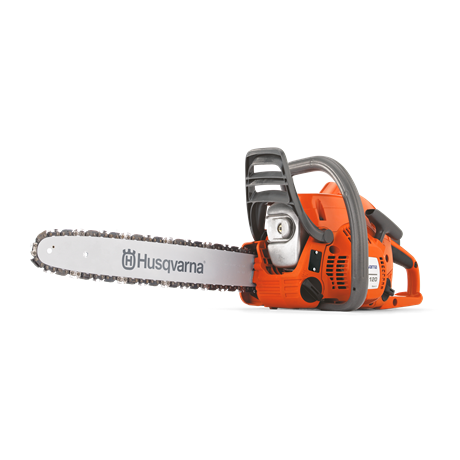

Easy to use, all-round chainsaw for homeowners. Thanks to sufficient cutting performance the saw makes light work of cutting firewood, light felling or limbing. Features X-Torq® engine technology for low emissions and Air Injection that keeps the filter clean. Low kickback cutting equipment for increased safety.
Air Injection
Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.
X-Torq®
Deliver lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.
Combined choke/stop control
Combined choke/stop control allow for easier starting and reduce the risk of engine flooding.
LowVib®
Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands.
Power output 1.4 kW
Cylinder displacement 38.2 cm³
Maximum power speed 9000 rpm
Idling speed 3000 rpm
Clutch engagement speed (±120) 4250 rpm
Spark plug Champion RCJ7Y
Electrode gap 0.5 mm
Ignition module air gap 0.25 mm
Oil pump type Automatic
Weight (excl. cutting equipment) 4.85 kg
Sound power level, guaranteed (LWA) 113 dB(A)
Sound power level, measured 100.7 dB(A)
Sound pressure level at operators ear 100.7 dB(A)
Recommended bar length, max 18 in
Recommended bar length, min 14 in
Chain speed at max power 16.8 m/s
Chain speed at 133% of maximum engine power speed 22.3 m/s
Oil tank volume 0.2 l
Oil pump type Automatic
Equivalent vibration level (ahv, eq) front handle 2.1 m/s²
Equivalent vibration level (ahv, eq) rear handle 2.7 m/s²
Air Injection
Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.
X-Torq®
Deliver lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.
Combined choke/stop control
Combined choke/stop control allow for easier starting and reduce the risk of engine flooding.
LowVib®
Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands.
Power output 1.4 kW
Cylinder displacement 38.2 cm³
Maximum power speed 9000 rpm
Idling speed 3000 rpm
Clutch engagement speed (±120) 4250 rpm
Spark plug Champion RCJ7Y
Electrode gap 0.5 mm
Ignition module air gap 0.25 mm
Oil pump type Automatic
Weight (excl. cutting equipment) 4.85 kg
Sound power level, guaranteed (LWA) 113 dB(A)
Sound power level, measured 100.7 dB(A)
Sound pressure level at operators ear 100.7 dB(A)
Recommended bar length, max 18 in
Recommended bar length, min 14 in
Chain speed at max power 16.8 m/s
Chain speed at 133% of maximum engine power speed 22.3 m/s
Oil tank volume 0.2 l
Oil pump type Automatic
Equivalent vibration level (ahv, eq) front handle 2.1 m/s²
Equivalent vibration level (ahv, eq) rear handle 2.7 m/s²
Product Specifications
L&S Part No. | 967 86 19 03 |
---|---|
Part Type | Genuine Part |
Manufacturer | Husqvarna |
OEM No. | 967861903 |
Unit of Sale | 1 |
Applications | Husqvarna 120 Mark II X-Torq® Chainsaws |
Fits Brands | Husqvarna |
Machine Type | Chainsaws |
Fits Models | 120 MARK II |
