Description
Overview:

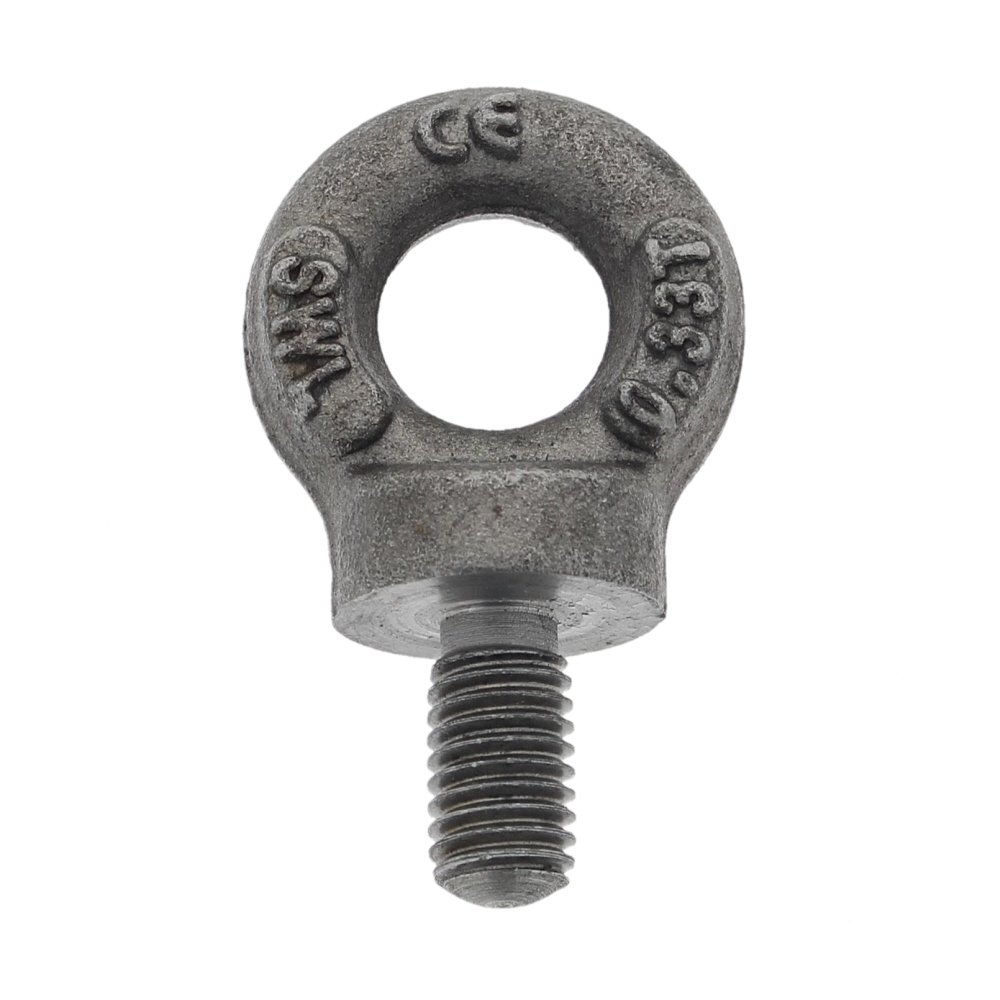

The 12mm Drop Forged Collared Eyebolt is a high tensile steel lifting point for rigging and general lifting duties on site, in workshops, and across industrial settings. The collared (shouldered) design seats firmly against the surface to reduce bending and improve alignment under load. It has an M12 metric thread manufactured to BS 4278-1, ensuring dependable fit and consistent performance with common lifting gear such as slings, shackles, chain blocks, and hoists. With a Working Load Limit of 0.4 tonne (approximately 400 kg), it is suited to vertical lifts of appropriately rated loads when installed correctly. The self-colour finish is plain steel for maximum strength with no coating to interfere with thread engagement. Manufacturer Part Number: 200 648.
Key Features:
- Drop forged from high tensile steel for strength and shock resistance under load.
- M12 metric thread made to BS 4278-1 for reliable compatibility and fit.
- Collared shoulder improves seating on flat surfaces and reduces bending moments.
- Vertical W.L.L. 0.4 tonne (approx. 400 kg) for safe, controlled lifting when used correctly.
- Self-colour (plain steel) finish for a robust, no-frills, inspection-friendly surface.
- Compact form factor for use where space is limited on machinery and fixtures.
- Straightforward installation with standard M12 tapped holes or matching nuts.
- Common dimensions supplied for selection and checking: Eye diameter 15 mm; Pin length 18 mm; Pin diameter 12 mm; A: 12 mm, B: 22 mm, D: 7 mm, E: 15 mm, F: 9 mm, G: 20 mm, H: 19.5 mm.
- Suitable for use with slings, shackles, and other lifting accessories of matching rating.
- Reusable when inspected and maintained; derate for any angular lifts per good practice.
Typical Applications:
Attaching loads to hoists and cranes, lifting machinery panels and engine components, securing lifting slings to plant, positioning structural steel, handling generators and compressors, and creating temporary lifting points on jigs, fixtures, and frames. Widely used in construction, fabrication, MRO, warehouses, and on site for safe vertical lifts within the stated W.L.L. Always confirm thread engagement depth and follow derating guidance for any non-vertical lifts.
Also known as:
Shoulder eye bolt, collared lifting eye, M12 lifting eye, ring bolt, lifting eye bolt, machinery eye, eye fastener, shouldered eyebolt, lifting ring bolt, eye fixing.
Product Specifications
| L&S Part No. | 200 648 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - Drop forged high tensile steel for strength and shock resistance - M12 metric thread to BS 4278-1 for reliable fit - Collared shoulder reduces bending and improves load alignment - Vertical W.L.L. 0.4 tonne for safe lifting - Self-colour finish ensures robust, inspection-friendly surface |
