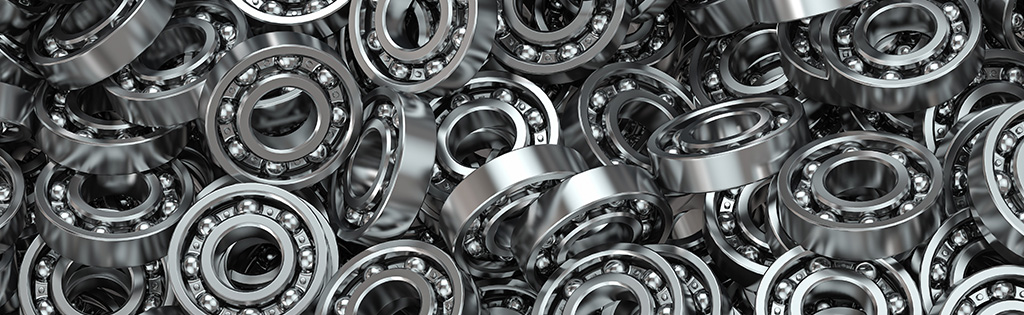

Ball bearings are used to work with low friction at different speeds and high loads where the speed is frequently changing. Ball bearings have a low starting resistance which enable a high number of revolutions showing a very low temperature rise.

Explanation of how the product code works

Example:

6203 - Basis designation of the series

2RS - Suffix sealing (number and type of seal and material properties)

C3 - Suffix features (tolerance, clearance, preload)

Suffix Meanings:

2 RS - Bearing with rubber seal on both sides. RS provides a better seal but more rolling friction than 2Z.

RS - Bearing with rubber seal on one side, one side open

2 Z / ZZ - Bearing with a metal seal on both sides

Z - Bearing with a metal seal on one side, one side open

E - Reinforced Design

P2 - Highest precision

K - Bearing with taper bore

P2 - Highest precision

C Codes:

C2 - Less clearance than normal

C0 of CN- The standard for applications where the normally recommended fits, and under normal operating conditions, leave the correct clearance. The C0 code is not indicated in the bearing

C3 - Clearance greater than C0 (has room for expansion)

C4 - Clearance greater than C2

C5 - Clearance greater than C4

Product Code			A (mm)	B (mm)	C (mm)
625	ZZ		5	16	5
696 A	ZZ		6	16	5
696 A	2RS		6	16	5
606	ZZ		6	17	6
607	ZZ		7	19	6
688	2RS		8	16	5
688	ZZ		8	16	5
608			8	22	7
608	2RS		8	22	7
608	ZZ		8	22	7
689	2RS		9	17	5
609			9	24	7
609	Z		9	24	7
609	ZZ		9	24	7
609	2RS		9	24	7
629	ZZ	C3	9	26	8
6800	ZZ		10	19	5
63900	ZZ		10	22	6
6000			10	26	8
6000	Z		10	26	8
6000	2RS		10	26	8
6000	ZZ		10	26	8
6000	ZZ		10	26	8
6000	ZZ		10	26	8
6202	2RS		11	35	15
6801	2RS		12	21	5
6901	ZZ		12	24	6
6901	2RS		12	24	6
6005			12	25
16007		C3	12	28	7
6001			12	28	8
6001		C3	12	28	8
6001	2RS		12	28	8
6001	Z		12	28	8
6001	ZZ		12	28	8
6001	ZZ	C	12	28	8
6201			12	32	10
6201		C3	12	32	10
6201		C4	12	32	10
6201	2RS		12	32	10
6201	RS	C3	12	32	10
6003	ZZ	C3	12	35	8
6301			12	37	12
6301	2RS		12	37	12
16002	ZZ		15	32	8
6002	2RS	C3	15	32	9
6002		C3	15	32	9
6002	2RS		15	32	9
6002	ZZ		15	32	9
6002			15	35	11
6202		C3	15	35	11
6202	2RS		15	35	11
6302	2RS		15	42	13
6202			16	35	11
6202	2RS		16	35	11
6003			17	35	10
6203		C3	17	40	12
6003	2RS		17	35	10
6203			17	40	12
6203	2RS		17	40	12
6203	ZZ		17	40	12
6303		C3	17	47	14
6303	ZZ		17	47	14
6304			20	42	12
6004	2RS		20	42	12
6204	2RS		20	47	14
6204	ZZ		22	47	14
6005			25	47	12
6005	2RS		25	47	12
6205			25	52	15
6205	2RS		25	52	15
6305		C3	25	62	12
6305		C3	25	62	12
6305	2RS		25	62	17
6006	2RS		30	55	13
6206	2RS		30	62	16
6007			35	62	14
6009	2RS		45	75	16
6010	2RS		50	80	16
6015	ZZ		74	115	20
