Description
Overview:

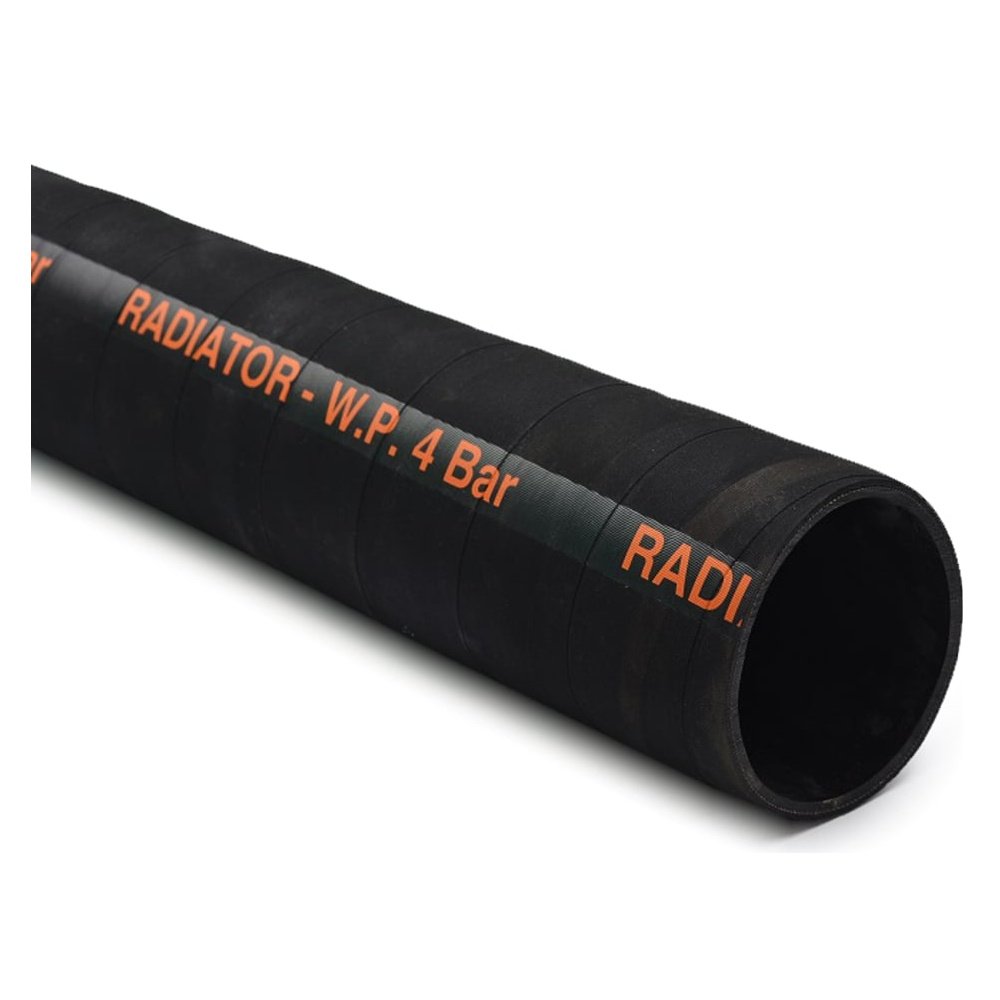

The Radiator Hose 48mm x 1m is a straight, heavy-duty hose made from EPDM rubber for engine cooling systems in cars, vans, plant, generators, compressors, agricultural machinery, and similar equipment. It transfers coolant between components such as the radiator, thermostat housing, header tank, and water pump. The hose has a 48 mm inner diameter and 57 mm outer diameter, giving good flow and wall strength, with a synthetic textile outer cover for added protection. Rated for -40°C to +125°C and 4 bar (58 psi), it is suitable for glycol-based antifreeze coolants and water. Supplied in a 1 metre length, it can be cut to size and secured with standard worm-drive or constant-tension hose clips. Manufacturer Part Number (MPN): 124 0191.
Key Features:
- 48 mm I/D and 57 mm O/D in a 1 metre straight length for easy routing and trimming
- EPDM construction for reliable heat, ageing, ozone, and weather resistance
- Synthetic textile outer cover for enhanced abrasion protection and longevity
- Operating temperature range: -40°C to +125°C for year-round use
- Pressure rating: 4 bar (58 psi) for typical automotive and industrial cooling circuits
- Smooth bore for efficient coolant flow and stable operating temperatures
- Reinforced design helps resist kinking and collapse under suction or bend
- Suitable for common worm-drive and constant-tension hose clips
- Weight: 1.105 kg per metre for a robust, durable build
- MPN: 124 0191 for easy identification and reordering
Typical Applications:
Suitable for radiator top/bottom hoses, header/expansion tank connections, engine bypass lines, and coolant transfer on construction plant, generators, welders, compressors, tractors, ride-on mowers, and light commercial vehicles. Ideal for building or replacing straight runs in custom or repair work where a durable, heat-resistant coolant hose is required.
Also known as:
Radiator coolant hose, straight coolant hose, EPDM radiator pipe, bulk radiator hose, engine cooling water hose, textile-reinforced coolant tube, 48 mm I.D. coolant hose, straight rubber radiator line, coolant transfer hose, automotive cooling hose.
Product Specifications
| L&S Part No. | 124 0191 |
|---|---|
| Unit of Sale | 1 |
| Size | I/D 48mm x O/D 57mm |
| Machine Type | Engines |
| Key Features | - 48 mm inner diameter, 57 mm outer diameter - EPDM rubber for heat and weather resistance - Rated -40°C to +125°C, 4 bar pressure - 1 metre length, cut to size - Compatible with standard hose clips |
