Description
Overview:

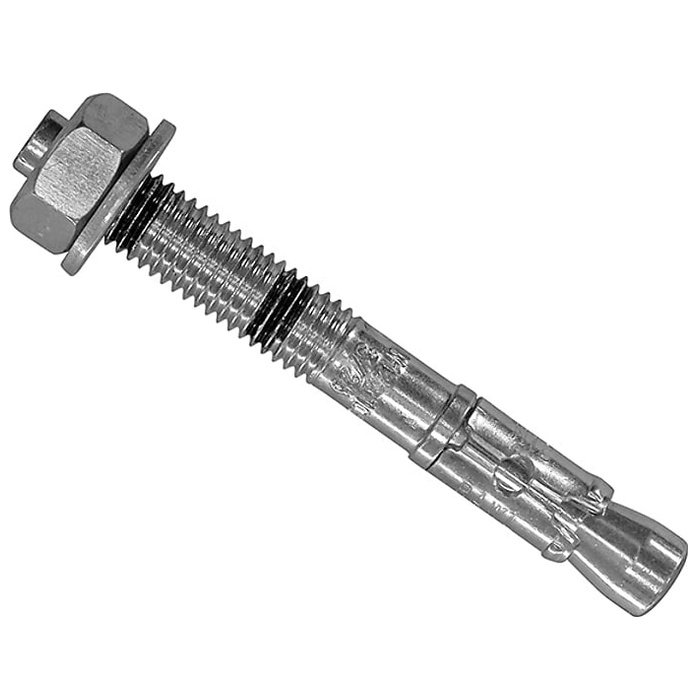

The Rawlplug R-XPT Plated Throughbolt M12 x 100mm is a zinc‐plated steel mechanical fixing for fastening into concrete. It delivers a secure, torque-controlled expansion hold for permanent installations in construction, fit‐out, and maintenance work. Sized at M12 x 100 mm (approximately 12 mm x 100 mm; 0.47 in x 3.94 in), it suits common bracketry and baseplate fixings where a dependable anchor is required. Typical uses include steelwork connections, handrails, racking, bollards, barriers, and general building components. The zinc plating offers enhanced resistance to corrosion, making it suitable for indoor and sheltered outdoor environments. Part of the Rawlplug R‐XPT range, it is designed for consistent, repeatable performance when installed with the correct drilling and tightening procedure. Manufacturer Part Number (MPN): RAWRXPT12100.
Key Features:
- Zinc‐plated steel body for improved corrosion resistance in everyday site conditions
- M12 diameter and 100 mm length (0.47 in x 3.94 in) for widely used fixture thicknesses
- Through‐fix design allows installation directly through the fixture for faster fitting
- Expansion mechanism engages in concrete as the nut is tightened for a dependable hold
- Suitable for solid concrete substrates in residential, commercial, and industrial settings
- Reliable performance from a recognised brand for quality anchors
- Works with standard metric spanners/sockets for straightforward installation
- Clean, tidy finish once set; ideal for visible fixings such as handrails and balustrades
- Stable under vibration and shear when installed to guidance
- Appropriate for dry and sheltered outdoor environments
Typical Applications:
Used for cladding restraint, curtain wall brackets, balustrading, barriers, handrails, pallet racking, structural steel connections, and bollard baseplates. Common on refurbishment and new‐build sites for securing frames, channels, plates, and plant supports to sound concrete. Suitable for trades including builders, steel fabricators, shopfitters, facilities teams, and maintenance engineers needing a robust concrete fixing.
Also known as:
Often referred to as an anchor bolt, expansion bolt, or through fixing. Other terms include wedge anchor, through‐bolt anchor, mechanical anchor, concrete bolt, stud anchor, bolt anchor, and through anchor.
Product Specifications
| L&S Part No. | RAWRXPT12100 |
|---|---|
| Manufacturer | Rawlplug |
| OEM No. | RAWRXPT12100 |
| Unit of Sale | 1 |
| Size | 45mm x 30mm x 75mm |
| Key Features | - Zinc‐plated steel for corrosion resistance in site conditions - M12 x 100 mm size for common fixture thicknesses - Through‐fix design for faster installation - Expansion mechanism ensures secure hold in concrete - Suitable for solid concrete in various settings |
