Description
Overview:

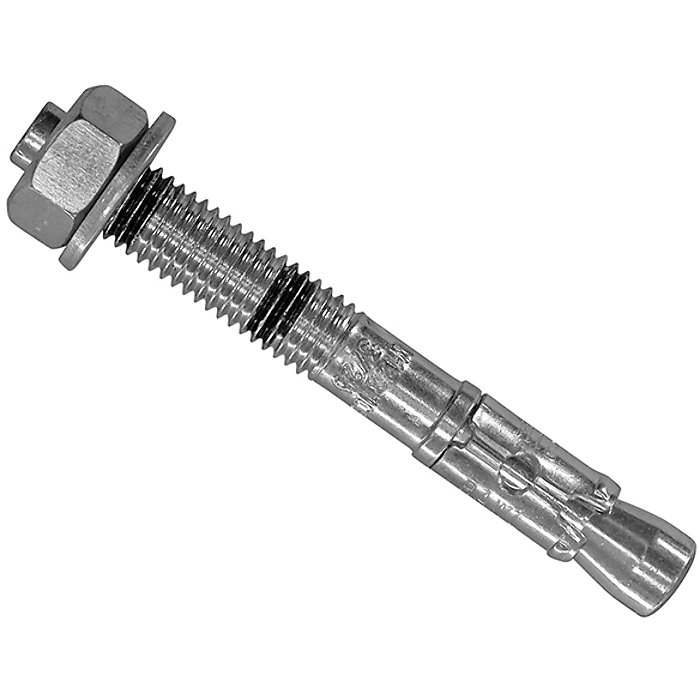

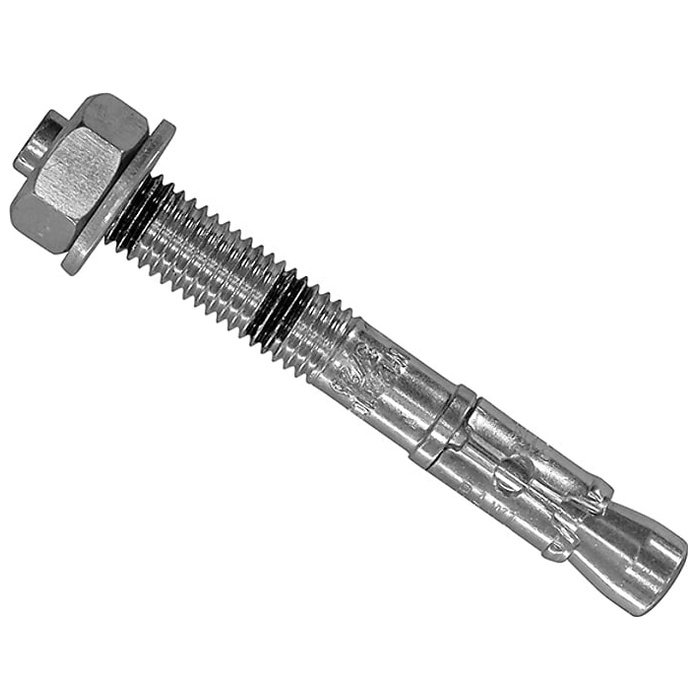

The Rawlplug R-XPT Plated Throughbolt M10 x 65mm is a zinc-plated steel mechanical anchor for fastening fixtures into sound concrete. Designed to expand under torque, it delivers a secure, vibration-resistant hold for structural and secondary fixings. With a nominal M10 diameter and 65mm overall length (approximately 2.56 inches), it suits brackets, frames, handrails, and similar hardware on concrete with a compressive strength of 20 N/mm2 or higher. The zinc plating provides dependable corrosion resistance for indoor areas and general outdoor environments. It is tightened with standard spanners or sockets after drilling the hole with a suitable masonry bit. Brand: Rawlplug. Manufacturer Part Number: RAWRXPT1065. Often referenced as R-XPT-10065/5, this anchor is a practical choice for trades and DIY work where consistency and holding power are essential.
Key Features:
- M10 diameter, 65mm length (approx. 2.56 inches) for common construction fixings
- Robust steel body with zinc plating for corrosion resistance in typical UK conditions
- Reliable expansion mechanism for a strong hold in concrete ≥ 20 N/mm2
- Through-fixing design helps position and fasten fixtures in a single operation
- Suitable for use with standard hand tools (spanner or socket) after drilling
- Consistent performance for repetitive installs on site or in workshops
- Stable under shear and tensile loads typical of balustrades, barriers, and frames
- Clean, compact form factor helps installation in tight or awkward spaces
- Low-maintenance fastener choice once correctly installed and torqued
Typical Applications:
Cladding restraint and curtain wall brackets, balustrading and barrier posts, handrail mounting on stairways and ramps, pallet racking assembly, structural steel connections, machinery and service supports, bollard installation, and general fixing of plates, cleats, and angles into concrete substrates where a dependable mechanical anchor is required.
Also known as:
Throughbolt anchor, wedge anchor, torque-controlled expansion anchor, stud anchor, mechanical concrete anchor, expansion bolt for concrete, through fixing, rawl bolt (generic term), steel sleeve anchor, concrete fastener.
Product Specifications
| L&S Part No. | RAWRXPT1065 |
|---|---|
| Manufacturer | Rawlplug |
| OEM No. | RAWRXPT1065 |
| Unit of Sale | 1 |
| Size | 45mm x 30mm x 75mm |
| Key Features | - M10 diameter, 65mm length for common construction fixings - Zinc-plated steel for corrosion resistance in UK conditions - Expands under torque for secure, vibration-resistant hold - Suitable for concrete with ≥ 20 N/mm2 compressive strength - Compatible with standard spanners or sockets after drilling |
