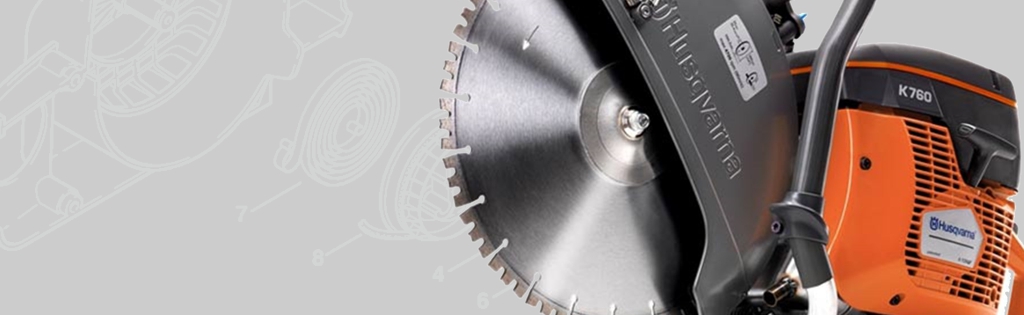

In this video, we show you how to change the Water Jets on a Husqvarna K760.

Health & Safety Warning - Please ensure that you have safely prepared the machine and workspace. If you are unsure about any aspect of the task please seek professional advice.

Transcript

Today, we're going to change the water jets on a Husqvarna K760 Disc Cutter. First of all, loosen the hose clamp fittings. Once you have loosened the clamps, pull of the hose from the fitting, You can use pliers to help if needed. Using a torx spanner, unscrew the jets. Check the nipple is clear and the holes are not blocked, replace if necessary. Then insert the nipple, water connector and screw, tightening into place with a torx spanner. Then place the pipes back on. As a tip, place the pipes the other way so that the long pipe is now underneath and the small pipe is on top. Positioning the pipe closer to the arm machine will help prevent the hose getting caught during use. Repeat the process for the other washer jet. Using a torx spanner, unscrew the jets. Again, check the nipple is clear and the holes are not blocked, replace is necessary. Then insert the new nipple, water connector and the screw, tightening with a torx spanner. That's how you change the water jets on a Husqvarna K760 Disc Cutter.

Parts

Parts and tools included in the K760 how-to video.

• Housing / Coupling for Water Hose Kit - 578 19 07 01
• Square Nut - 503 22 65 04
• Water Control Valve Assembly - 578 24 33 02
• Combination Tool - 506 38 26 01
