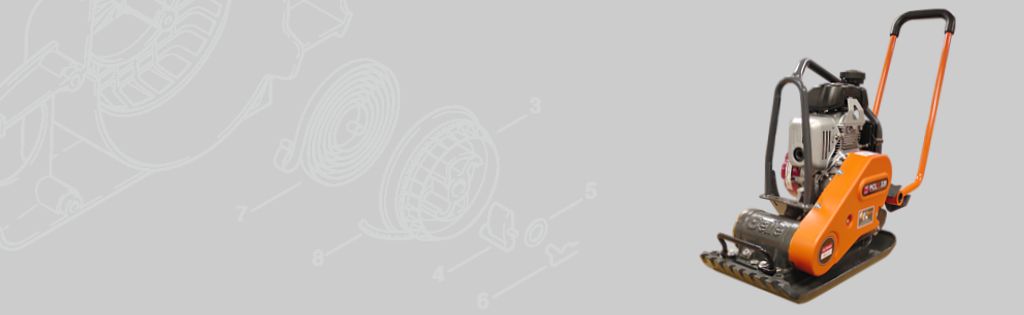

How to Change the Base Plate on a Belle PCLX 320 Plate Compactor
In this video, we show you how to change the Base Plate on a Belle PCLX 320 plate compactor.
Health & Safety Warning - Please ensure that you have safely prepared the machine and workspace. If you are unsure about any aspect of the task please seek professional advice.
Transcript
Today we're going to change the base plate on a Belle PCLX 320 Plate Compactor. Firstly, remove the cover by unscrewing the 4 bolts and washers using a 10mm socket. Then, remove the belt from the pulley and the clutch safely. Now, detach the bedplate by unscrewing the 4 bolts and washers using a 15mm socket. You can now access the vibration mounts. Unscrew the vibration mounts. You will now need to release the exciter. To do this you will need to unfasten the 6 bolts. Now, remove the exciter. You can now replace the base plate. Place the exciter back and secure. Screw the mounts back into position. Reattach the bedplate and secure with the 4 bolts. Place the belt back into position. Return the cover back on and secure with the bolts That's how you change the base plate on a Belle PCLX 320 Plate Compactor.
Parts
Parts and tools included in the Belle PCLX 320 how-to video.
- Base Plate - 943/99930
