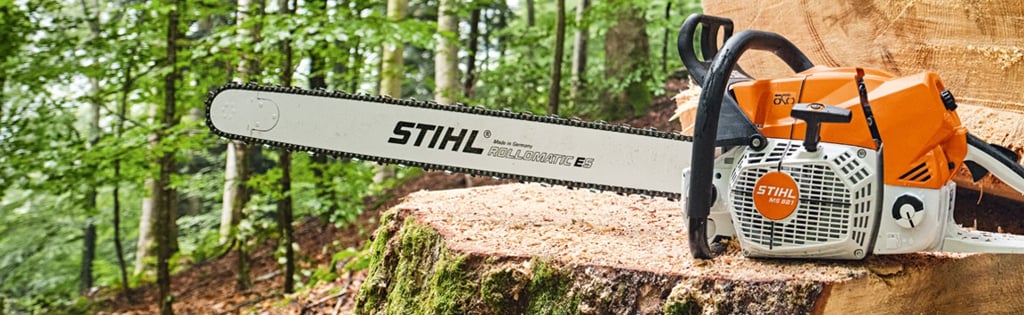

Stihl Chainsaw Chain and Guide Bar Selector

Buy Stihl Chainsaw Parts Here »

Here's a guide for you to identify which chain and guide bar is suitable for your Stihl chainsaw. The table includes Bar Length, Chain Pitch, Chain Gauge and Drive Links. It also recommends the correct file to sharpen your chain. We offer WAR TEC Chain as an alternative to the branded Stihl chain loops. WAR TEC is precision engineered with long life cutting edge at a fraction of the cost of branded Stihl chain loops.

Stihl Chain & Bar Finder

Do you know your model, bar length, pitch, and gauge? Use our finder to direct you straight to your products.

Stihl Chain & Bar Finder

Model
Length (inches)
Pitch
Gauge

Unsure? Here is a guide How to Measure Your Chain and Bar

Stihl Model	Bar Length	Chain Pitch	Chain Gauge	Drive Links	Stihl Chain	WAR TEC Chain	File Dia.	Stihl Guide Bar	WAR TEC Guide Bar	Chain & Bar Kit
MS150, MS150T, MSA160T, HT101, HTA85 MSA 160 C-BQ	10" 12"	1/4"P 1/4"P	1.1mm 1.1mm	56 64	3670/56 3670/64	061 002	5/32" 5/32"	3005 008 3403 3005 008 3405	- -	300 150 300 152

HT70,HT75,HT100, HT101,KM-HT,017, 023L,019T,MS190,E140, MSE140,MS170,MS171, MS180,MS192	12" 14"	3/8"P 3/8"P	1.1mm 1.1mm	44 50	3610/44 3610/50	013 014	5/32" 5/32"	3005 000 3905 3005 000 3909	077 076	300 158 300 184

009,010,011,018,019, 019T,020,020T,021, 023,025,E10,E14,E180, MSE160,MSE180, MS180,MS181,MS192, MS200,,MS200T,MS201T, MS210,MS211,MS230, MS231	12" 14" 16"	3/8"P 3/8"P 3/8"P	1.3mm 1.3mm 1.3mm	44 50 55	3636/44 3636/50 3636/55	017 019 030	5/32" 5/32" 5/32"	3005 000 4805 3005 000 4809 3005 000 4813	079 073 081	300 180 300 184 300 195

MS250,MS251, 025,012	14" 16" 18"	.325" .325" .325"	1.6mm 1.6mm 1.6mm	56 62 68	3629/56 3629/62 3629/68	010 037 038	3/16" 3/16" 3/16"	3005 000 4709 3005 000 4713 3005 008 4717	- 089 092	300 250 300 253 300 256

MS240,MS241,MS260 MS261,E160,024,026 028,029,030,031,032 034,036,039,MS270 MS280,MS290,MS360 MS361,MS362,MS390	13" 15" 16" 18"	.325" .325" .325" .325"	1.6mm 1.6mm 1.6mm 1.6mm	56 62 67 74	3639/56 3639/62 3639/67 3639/74	010 005 035 039	3/16" 3/16" 3/16" 3/16"	3003 000 5306 3003 000 6811 3003 000 6813 3003 008 6817	- 074 090 093	300 280 300 283 300 286 300 289

029,031,032,034,036,038 039,041,042,044,045,046 048,056,064,066,E15 E20,E220,MS290,MS310 MS311,MS340,MS341,MS360 MS361,MS362,MS390,MS391 MS440,MS441,MS460 MS640, MS650,MS660	16" 18" 20" 25" 30" 36"	3/8" 3/8" 3/8" 3/8" 3/8" 3/8"	1.6mm 1.6mm 1.6mm 1.6mm 1.6mm 1.6mm	60 66 72 84 98 114	3621/60 3621/66 3621/72 3621/84 3621/98 3621/114	040 041 025 056 054 055	13/64" 13/64" 13/64" 13/64" 13/64" 13/64"	3003 000 6113 3003 000 9217 3003 000 5221 3003 000 5231 3003 000 9842 3003 000 9853	088 084 082 098 - -	300 296 300 413 300 299 300 307 300 330 300 333

07S,08,08S,050, 051,075,076,084, 088,E30,MS880	17" 21" 25" 30" 36"	.404" .404" .404" .404" .404"	1.6mm 1.6mm 1.6mm 1.6mm 1.6mm	60 68 80 91 108	3946/60 3946/68 3946/80 3946/91 3946/108	004 006 - 480 -	7/32" 7/32" 7/32" 7/32" 7/32"	3002 000 9215 NLA 3002 000 9731 3002 000 9741 3002 000 9753	- - - - -	300 337 NA 300 340 300 343 300 346

MSA 161T	10" 12"	1/4" 1/4"	1.1mm 1.1mm	57 65	3670/57 3670/65	061 002	5/32" 5/32"	3005 008 3403 3005 008 3405	- -	300 133 300 134

MSA 200 C-B	14"	1/4"	1.1mm	72	3670/72	063	1/8"	3005 008 3409	-	300 135

MSA 220 C, MSA 220 T	12" 14"	3/8"P 3/8"P	1.3mm 1.3mm	44 50	3616/44 3616/50	017 019	5/32" 5/32"	3005 000 4805 3005 000 4809	079 080	300 136 300 137

MSA 220 TC-O	12" 14"	3/8"P 3/8"P	1.3mm 1.3mm	44 50	3616/44 3616/50	017 019	5/32" 5/32"	3005 000 7405 3005 000 7409	079 080	300 141 300 142

MSA 300	14" 16" 18"	.325" .325" .325"	1.3mm 1.3mm 1.3mm	60 67 74	3690/60 3690/67 3690/74	453 026 027	3/16" 3/16" 3/16"	3003 000 3309 3003 000 3313 3003 008 3317	- - 095	300 138 300 139 300 140

MS 271, MS 271C	14" 16" 18" 18"	.325"P .325" .325"P .325"	1.3mm 1.3mm 1.3mm 1.6mm	60 67 74 74	3695/60 3695/67 3695/74 3629/74	- - - -	3/16" 3/16" 3/16" 3/16"	3003 000 3309 3003 000 3313 3003 008 3317 3003 008 6817	- - - 093	300 138 300 139 300 140 300 289

MS 291, MS 291 C	16" 18"	.325" .325"	1.6mm 1.6mm	67 74	3686/67 3686/74	- -	3/16" 3/16"	3003 008 6813 3003 008 6817	090 093	- -

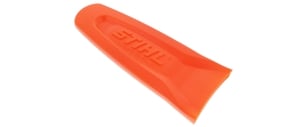

Scabbards

Stihl Model	Stihl Guide Bar	Stihl Scabbard
MS150, MS150T, MSA160T, HT101, HTA85 MSA 160 C-BQ	3005 008 3403 3005 008 3405	0000 792 9170 0000 792 9171

HT70,HT75,HT100, HT101,KM-HT,017, 023L,019T,MS190,E140, MSE140,MS170,MS171, MS180,MS192	3005 000 3905 3005 000 3909	0000 792 9171 0000 792 9171

009,010,011,018,019, 019T,020,020T,021, 023,025,E10,E14,E180, MSE160,MSE180, MS180,MS181,MS192, MS200,,MS200T,MS201T, MS210,MS211,MS230	3005 000 4805 3005 000 4809 3005 000 4813	0000 792 9172 0000 792 9172 0000 792 9173

MS250,MS251, 025,012	3005 000 4709 3005 000 4713 3005 008 4717	0000 792 9172 0000 792 9173 0000 792 9173

MS240,MS241, MS260,MS261, E160,024,026,028, 029,030,031,032, 034,036,039,MS270, MS280,MS290,MS360, MS361,MS362,MS390	3003 000 5306 3003 000 6811 3003 000 6813 3003 008 6817	0000 792 9174 0000 792 9174 0000 792 9175 0000 792 9175

029,031,032,034,036, 038,039,041,042,044, 045,046,048,056,064, 066,E15,E20,E220,MS290, MS310,MS311,MS340, MS341,MS360,MS361, MS362,MS390,MS391, MS440,MS441,MS460, MS640, MS650,MS660	3003 000 6113 NLA 3003 000 5221 3003 000 5231 3003 000 9842 3003 000 9853	0000 792 9175 0000 792 9175 0000 792 9176 0000 792 9177 0000 792 9178 0000 792 9179

07S,08,08S,050, 051,075,076,084, 088,E30,MS880	3002 000 9215 NLA 3002 000 9731 3002 000 9741 3002 000 9753	0000 792 9175 0000 792 9176 0000 792 9177 0000 792 9178 0000 792 9179

MSA 161T	3005 008 3403 3005 008 3405	0000 792 9170 0000 792 9172

MSA 200 C-BQ	3670 000 0072	300 135

MSA 220 T	3005 000 4805 3005 000 4809	0000 792 9160 0000 792 9160

MSA 220 TC-O	3005 000 7405 3005 000 7409	0000 792 9160 0000 792 9160

MSA 300	3003 000 3309 3003 000 3313 3003 008 3317	0000 792 9174 0000 792 9175 0000 792 9175

Stihl Chain & Bar Selector

Stihl Chain & Bar Selector

Stihl Chainsaw Chain and Guide Bar Selector

Buy Stihl Chainsaw Parts Here »

Stihl Chain & Bar Finder

Scabbards

Link to categories

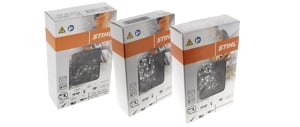

Stihl Chainsaw Chain

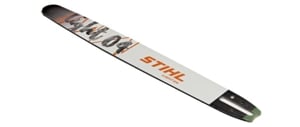

Stihl Guide Bars
